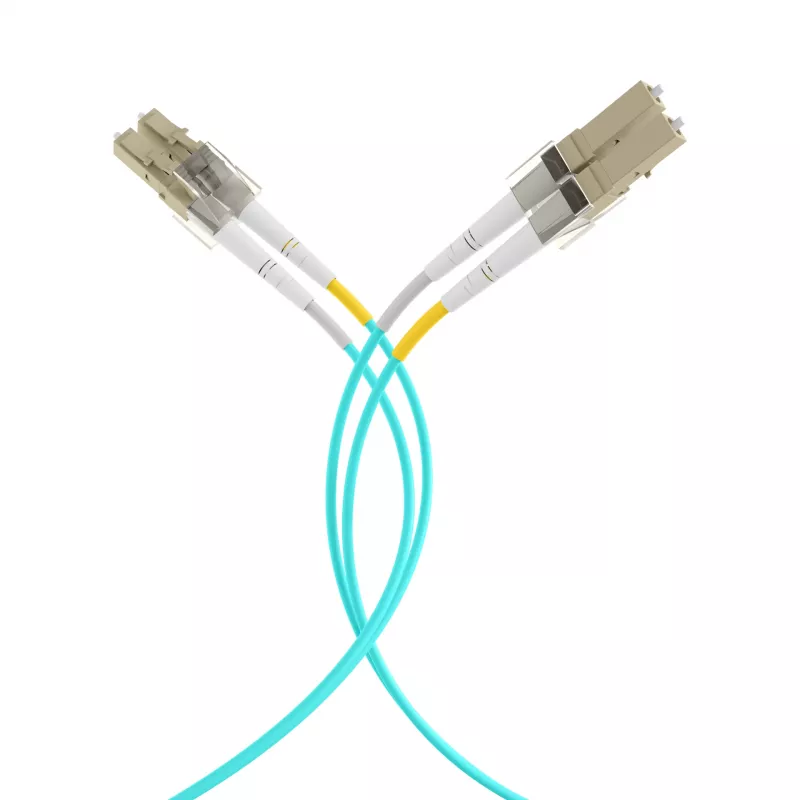

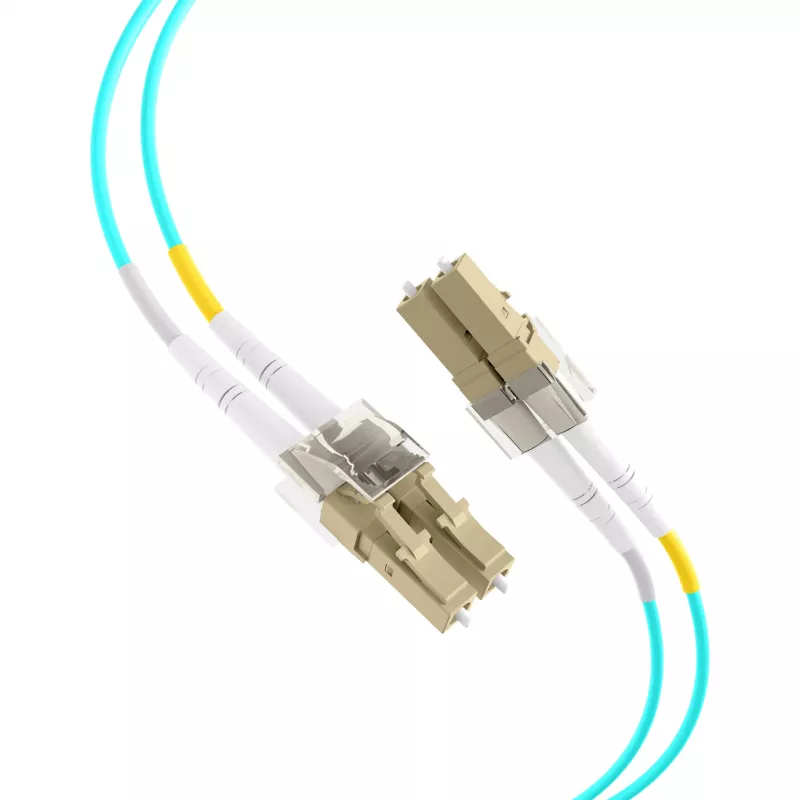

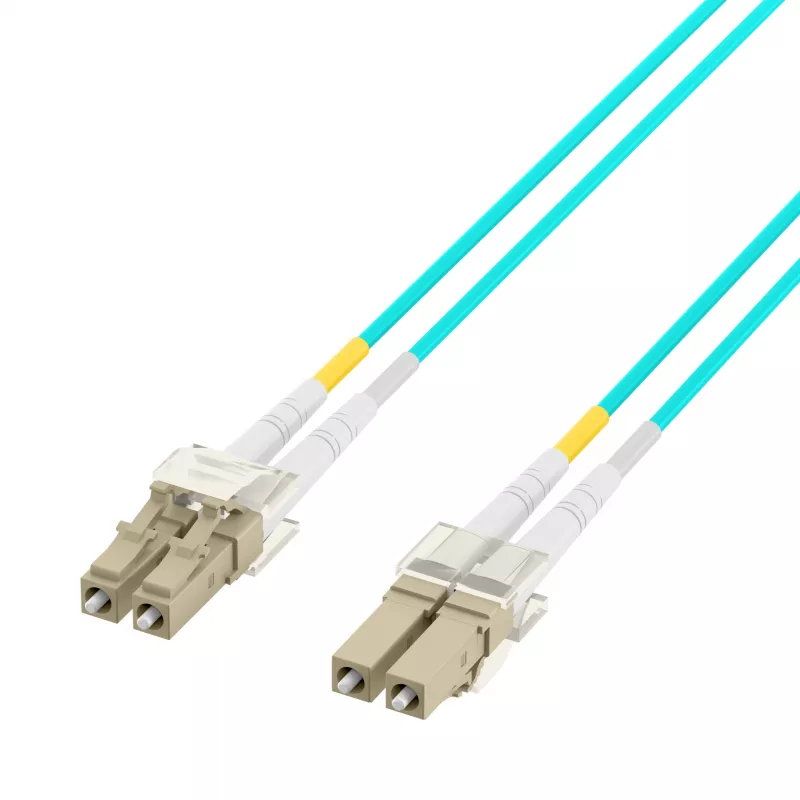

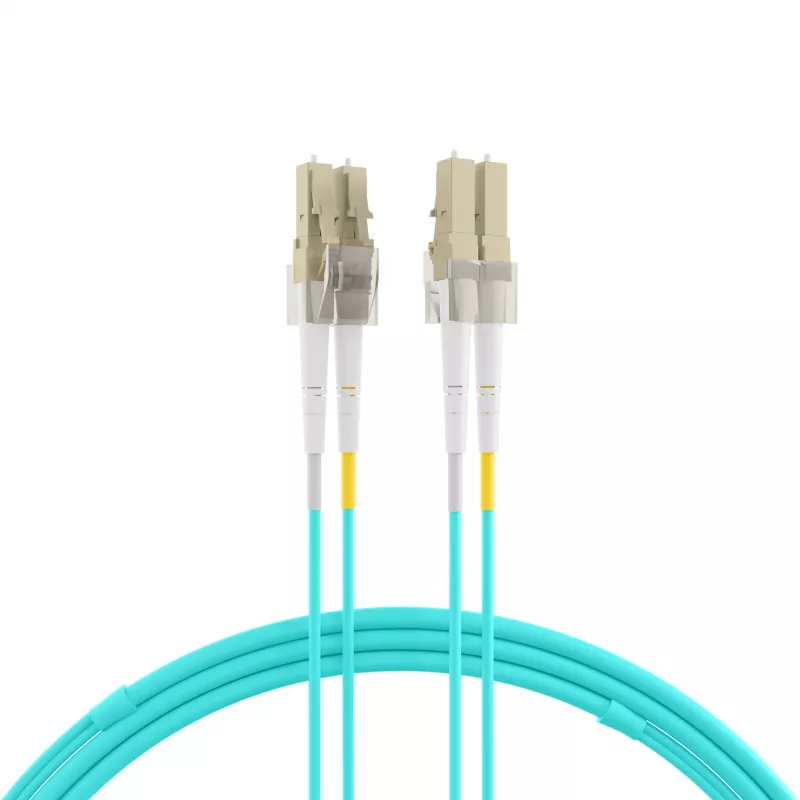

EFB Elektronik IPL-DF-LCULCU-3-0200 - 2 m - OM3 - LC - LC Cabo de fibra ótica duplex

The EFB Elektronik IPL-DF-LCULCU-3-0200 is a high-performance 2-meter duplex fiber optic patch cable designed for reliable data transmission in demanding network environments. Featuring OM3 multimode fiber with LC to LC connectors, this cable supports 10 Gigabit Ethernet and is ideal for data centers, LANs, and SANs. The LSZH (Low Smoke Zero Halogen) jacket in aqua ensures safety and easy identification.

Advantages

Optimized for high-speed networks, this patch cable delivers low insertion loss (<0.3 dB) and high return loss (>30 dB), ensuring minimal signal degradation. The OM3 fiber provides excellent bandwidth (1500 MHz-km at 850nm) and supports 10GbE over distances up to 300 meters. The durable LSZH jacket reduces toxic fumes in case of fire, making it suitable for confined spaces.

Suitable for

• Data center cabling infrastructure
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• 10 Gigabit Ethernet connections
• High-speed fiber optic links

Key specifications

• Fiber Type: Multimode OM3
• Connector Type: LC Duplex to LC Duplex
• Cable Length: 2 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Insertion Loss: < 0.3 dB
• Return Loss: > 30 dB
• Attenuation at 850nm: < 3.5 dB/km
• Attenuation at 1300nm: < 1.5 dB/km
• Bandwidth at 850nm: 1500 MHz-km
• Bandwidth at 1300nm: 500 MHz-km
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC interfaces and is ideal for high-density patching environments. Pair with OM3-rated transceivers for best results.
