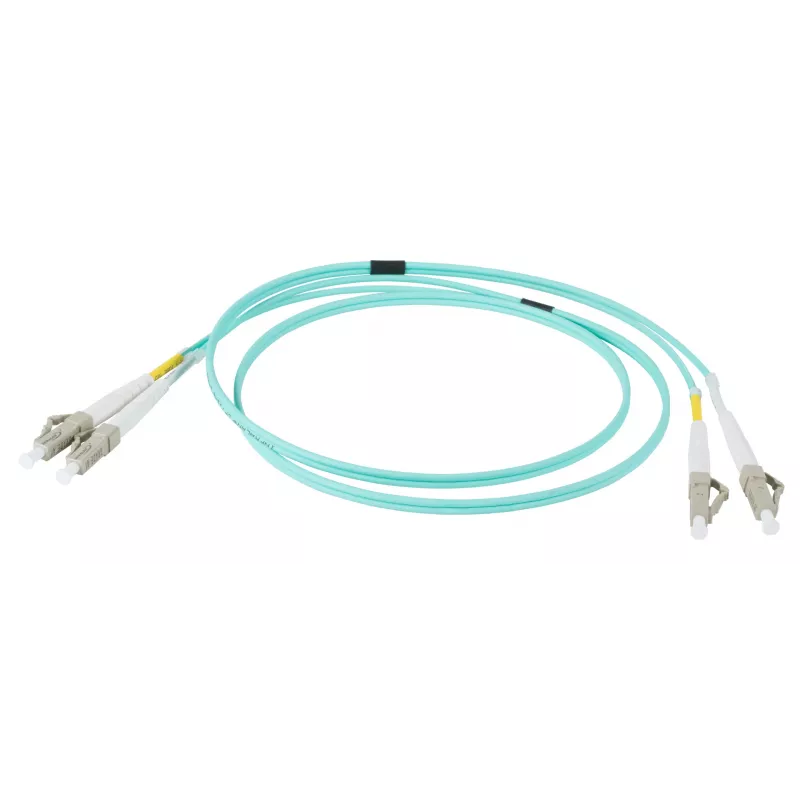

EFB Elektronik IPL-DR-LCULCU-3-0750 Cabo de fibra ótica, 7,5 m, OM3, LC para LC, duplex, LSZH, água

The EFB Elektronik IPL-DR-LCULCU-3-0750 is a high-quality fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 7.5 meters and OM3 multimode fiber, this duplex cable supports high-bandwidth applications up to 10 Gbps. The LC to LC connectors ensure secure connections, while the LSZH (Low Smoke Zero Halogen) jacket provides safety in confined spaces.

Advantages

This cable offers excellent performance with low insertion loss and high return loss, ensuring minimal signal degradation. The OM3 fiber is optimized for 850nm and 1300nm wavelengths, providing high bandwidth for modern networks. The durable LSZH jacket reduces toxic fumes in case of fire, making it ideal for indoor installations.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• Telecommunications
• High-speed LAN connections
• Fiber-to-the-desk applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Class: OM3
• Connector Type A: LC
• Connector Type B: LC
• Cable Length: 7.5 m
• Number of Fibers: 2 (Duplex)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Construction: Duplex
• Fiber Core Diameter: 50 µm
• Fiber Cladding Diameter: 125 µm
• Cable Color: Aqua
• Maximum Bandwidth (850nm): 1500 MHz*km
• Maximum Bandwidth (1300nm): 500 MHz*km
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 30 dB
• Operating Temperature: -20°C to 70°C
• Attenuation (850nm): ≤ 2.5 dB/km
• Attenuation (1300nm): ≤ 0.8 dB/km
• Standards Compliance: IEC 60794-2, TIA/EIA-568-C.3, ISO/IEC 11801

Recommendations

For optimal performance, pair this cable with OM3-compatible transceivers and patch panels. Ensure proper handling and storage to maintain fiber integrity. This cable is an excellent choice for upgrading network infrastructure to support higher data rates.
