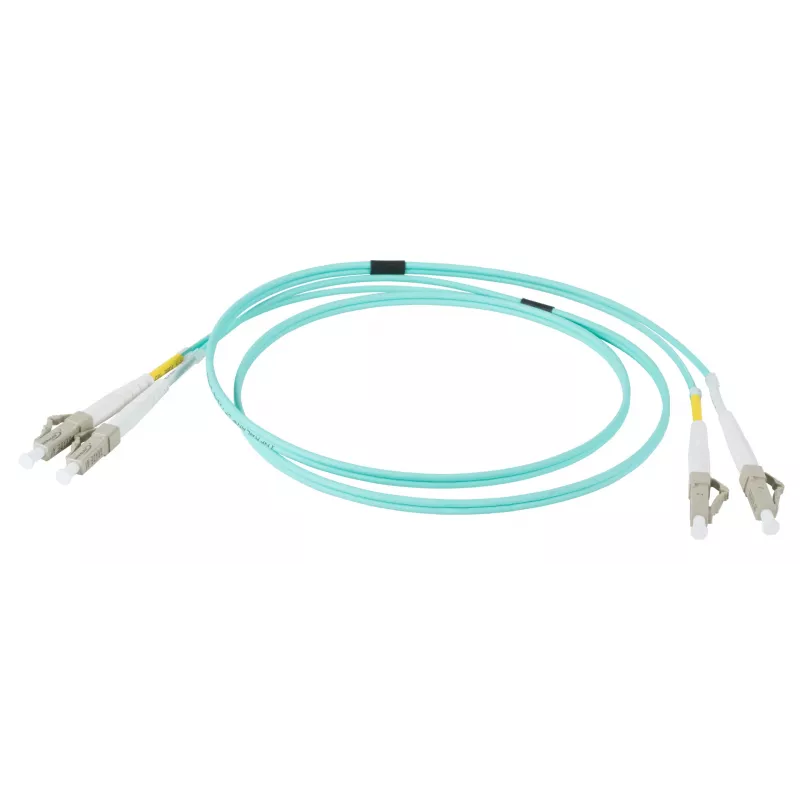

EFB Elektronik IPL-DR-LCULCU-3-1000 Cabo de fibra ótica, OM3, LC/UPC para LC/UPC, duplex, 10 m, LSZH, interior

The EFB Elektronik IPL-DR-LCULCU-3-1000 is a high-performance fiber optic patch cable designed for reliable data transmission in indoor environments. With OM3 multimode fiber, LC/UPC duplex connectors, and a length of 10 meters, this cable supports high-speed networks up to 10 Gbps and beyond. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, making it ideal for data centers, server rooms, and enterprise networks.

Advantages

This patch cable offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring minimal signal degradation and reliable performance. The OM3 fiber grade is optimized for 850 nm and 1300 nm wavelengths, supporting high-bandwidth applications. The duplex LC/UPC connectors provide secure and easy connections, while the LSZH jacket reduces toxic fumes in case of fire, enhancing safety.

Suitable for

• Data centers and server rooms
• Enterprise network infrastructure
• Telecommunications and IT equipment
• High-speed data transmission (1/10/40 Gbps)
• Indoor fiber optic cabling

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber type: Multimode OM3
• Connectors: LC/UPC to LC/UPC, Duplex
• Length: 10 m
• Number of fibers: 2
• Core/cladding: 50/125 µm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable construction: I-V(ZN)H (Indoor, Loose Tube, Central Strength Member, Halogen-free)
• Insertion loss: ≤0.3 dB typical
• Return loss: ≥30 dB typical
• Wavelengths: 850 nm, 1300 nm
• Attenuation: ≤2.8 dB/km @850 nm, ≤1.0 dB/km @1300 nm
• Minimum bend radius: 30 mm (installation), 10 mm (long-term)
• Operating temperature: -20°C to 70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC duplex ports and is suitable for use with OM3/OM4 transceivers. Avoid sharp bends to maintain signal integrity.
