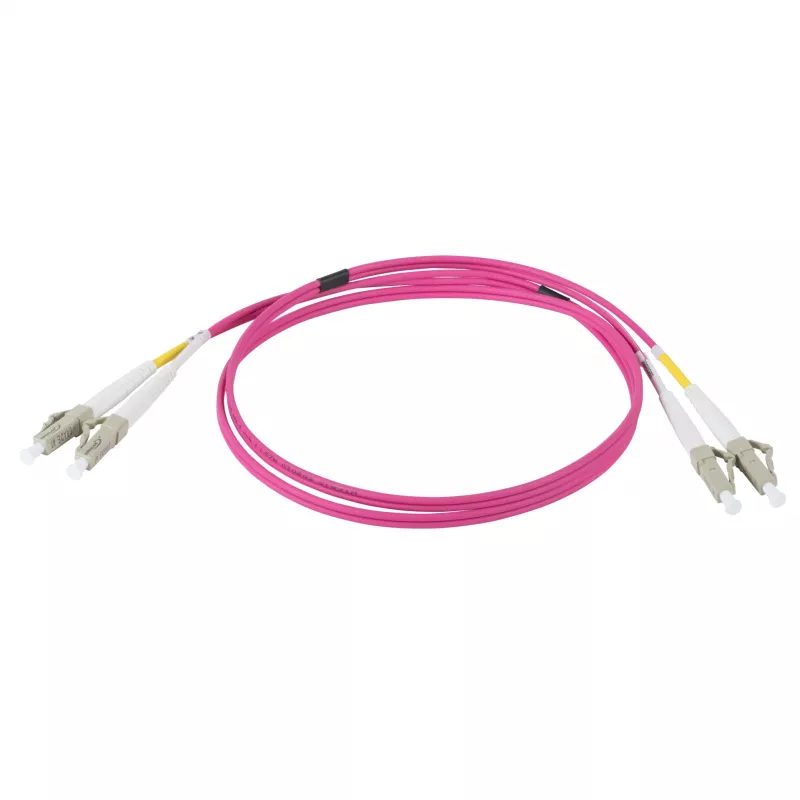

EFB Elektronik IPL-DR-LCULCU-4-0050 Cabo de fibra ótica, 0,5 m, OM4, LC/UPC duplex, água

The EFB Elektronik IPL-DR-LCULCU-4-0050 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 0.5 meters and OM4 multimode fiber, this cable supports high-speed applications up to 40 Gbps and beyond. It features LC/UPC duplex connectors on both ends, ensuring low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable offers exceptional performance with typical insertion loss of less than 0.3 dB and return loss greater than 30 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in indoor installations, reducing toxic fumes in case of fire. The I-V(ZN)H construction includes aramid yarn and non-metallic rodent protection, making it durable and suitable for structured cabling.

Suitable for

• Data centers requiring high-density and high-speed connections
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• FTTx deployments and telecommunications
• Any application needing reliable OM4 multimode fiber connectivity

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Length: 0.5 m
• Fiber Mode: OM4 Multimode (50/125 µm)
• Connector Type: LC/UPC Duplex to LC/UPC Duplex
• Number of Fibers: 2 (Duplex)
• Cable Construction: I-V(ZN)H (Indoor, Loose Tube, Aramid Yarn, Non-Metallic Rodent Protection, Halogen-Free)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 30 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Attenuation at 850nm: 2.3 dB/km (Max)
• Attenuation at 1300nm: 0.6 dB/km (Max)
• Standards Compliance: RoHS, REACH, IEC 60794-2, IEC 60793-2-10 Type A1a.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for short-distance, high-bandwidth applications within racks or between patch panels.
