EFB Elektronik IPL-DR-LCUSCU-2-0050 Cabo de fibra ótica, OS2, LC-SC, 0,5 m, amarelo

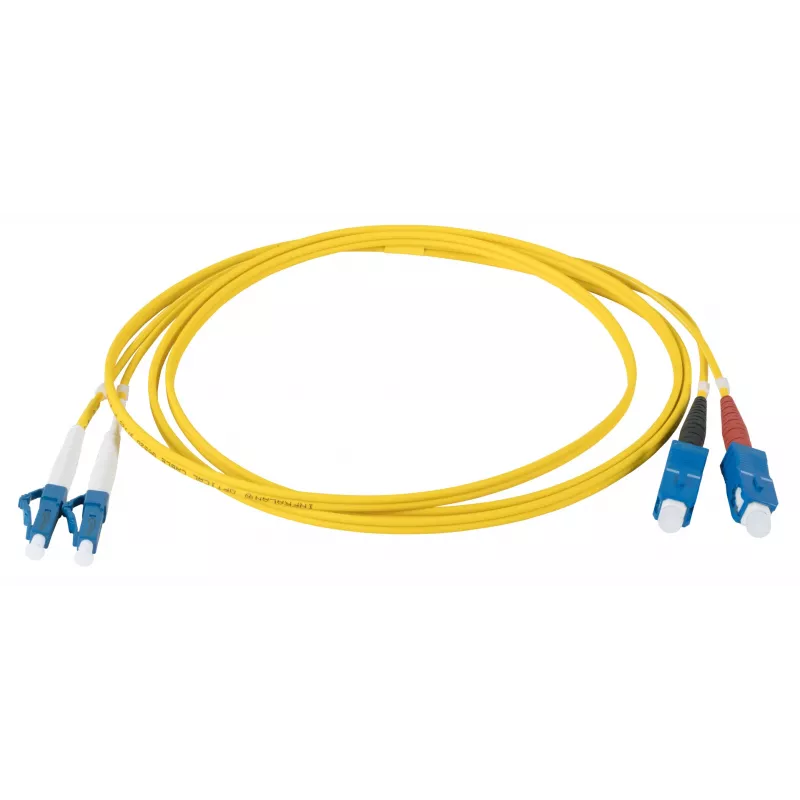

The EFB Elektronik IPL-DR-LCUSCU-2-0050 is a high-quality fiber optic patch cable designed for reliable single-mode data transmission. With a length of 0.5 meters and OS2 classification, this duplex cable features LC to SC connectors, making it ideal for high-speed networking in data centers, telecommunications, and LAN environments. The yellow LSZH jacket ensures safety and easy identification.

Advantages

Low insertion loss (≤0.3 dB) and high return loss (≥50 dB) guarantee excellent signal integrity. The LSZH jacket reduces toxic fumes in case of fire, enhancing safety in confined spaces. Duplex construction supports bidirectional communication.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• High-speed data transmission up to 10 Gbps and beyond

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: Single-mode OS2 (ITU-T G.652.D)
• Connector A: LC Duplex
• Connector B: SC Duplex
• Cable Length: 0.5 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Number of Fibers: 2
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Wavelength Support: 1310 nm, 1550 nm
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min): ≥ 50 dB
• Cable Color: Yellow
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC interfaces. Suitable for indoor use only.
