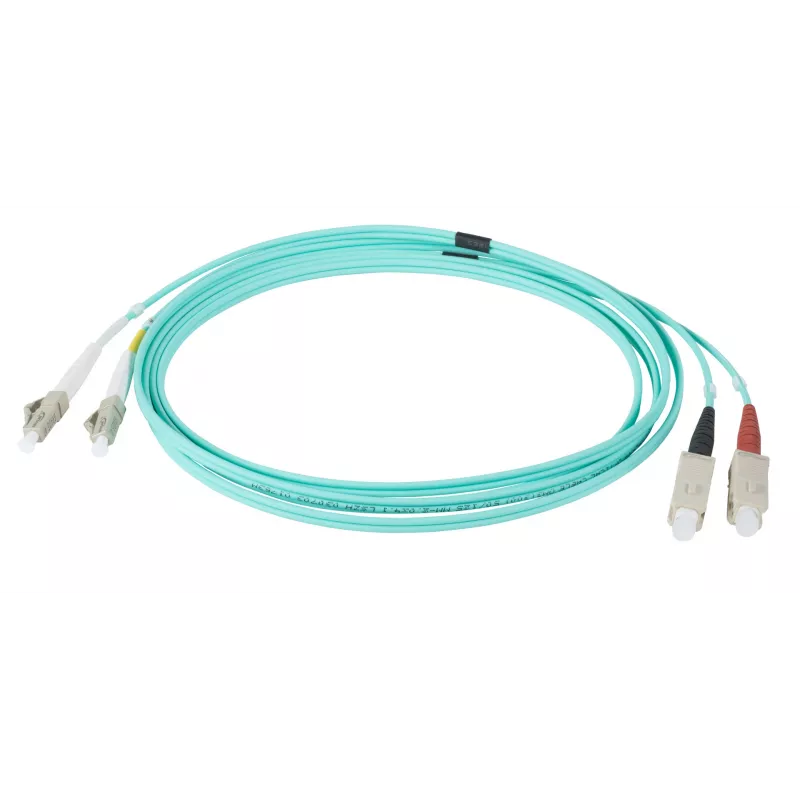

EFB Elektronik IPL-DR-LCUSCU-3-0150 Cabo de patch de fibra ótica Duplex OM3 LC para SC 1,5 m azul-piscina

The EFB Elektronik IPL-DR-LCUSCU-3-0150 is a high-performance duplex OM3 multimode fiber optic patch cable designed for reliable data transmission in demanding network environments. With LC to SC connectors and a length of 1.5 meters, this cable supports 10 Gigabit Ethernet and Fibre Channel applications, making it ideal for data centers, LANs, and high-speed infrastructure.

Advantages

Optimized for 10 GbE with OM3 fiber standard, ensuring low attenuation and high bandwidth. LSZH jacket provides safety in confined spaces, while the aqua color enables easy identification. Low insertion loss and high return loss guarantee signal integrity.

Suitable for

• 10 Gigabit Ethernet (10GbE) networks
• Fibre Channel storage area networks
• Data center interconnects
• Local area network (LAN) backbone

Key specifications

• Cable type: Duplex fiber optic patch cable
• Fiber standard: OM3 multimode (50/125 µm)
• Connector A: LC duplex
• Connector B: SC duplex
• Length: 1.5 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Aqua
• Attenuation at 850 nm: ≤ 2.3 dB/km
• Attenuation at 1300 nm: ≤ 0.6 dB/km
• Bandwidth at 850 nm (OFL): 1500 MHz·km
• Bandwidth at 1300 nm (OFL): 500 MHz·km
• Maximum insertion loss: ≤ 0.3 dB
• Minimum return loss: ≥ 20 dB
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, pair with OM3-compatible transceivers and ensure clean connector end-faces. Suitable for indoor use in patch panels and direct equipment connections.
