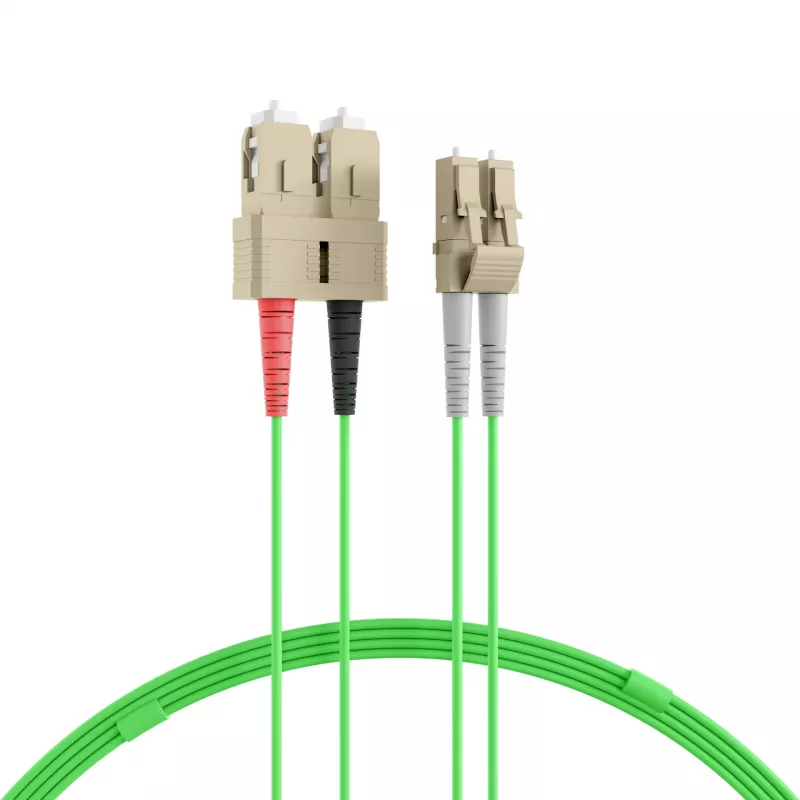

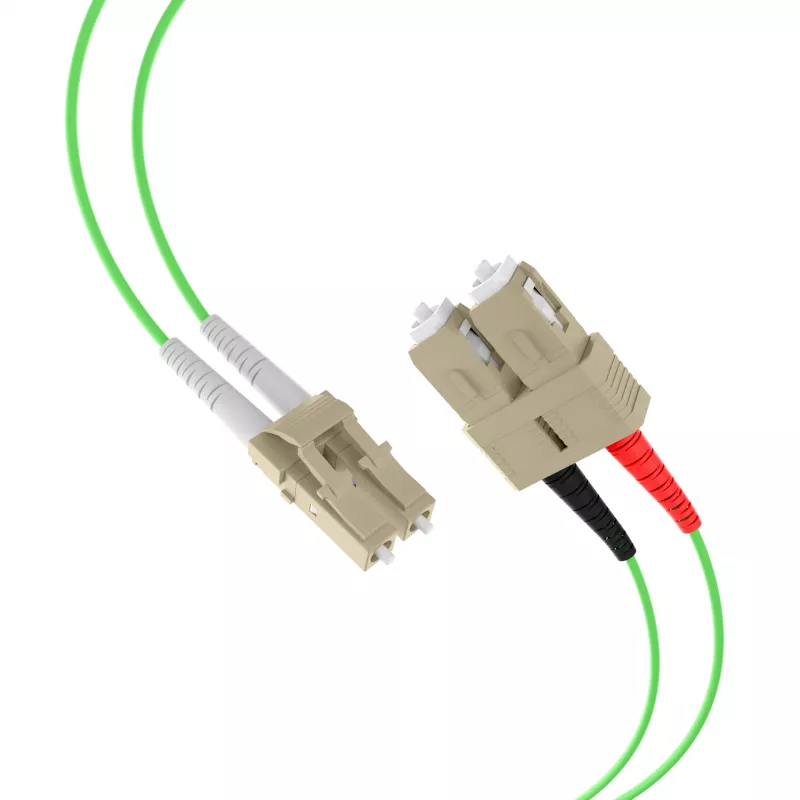

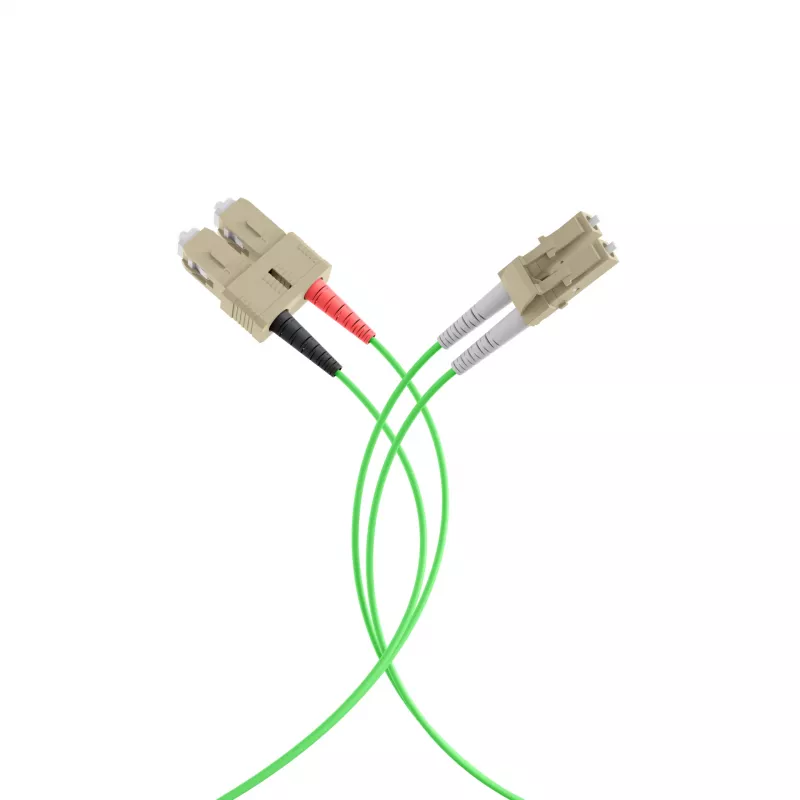

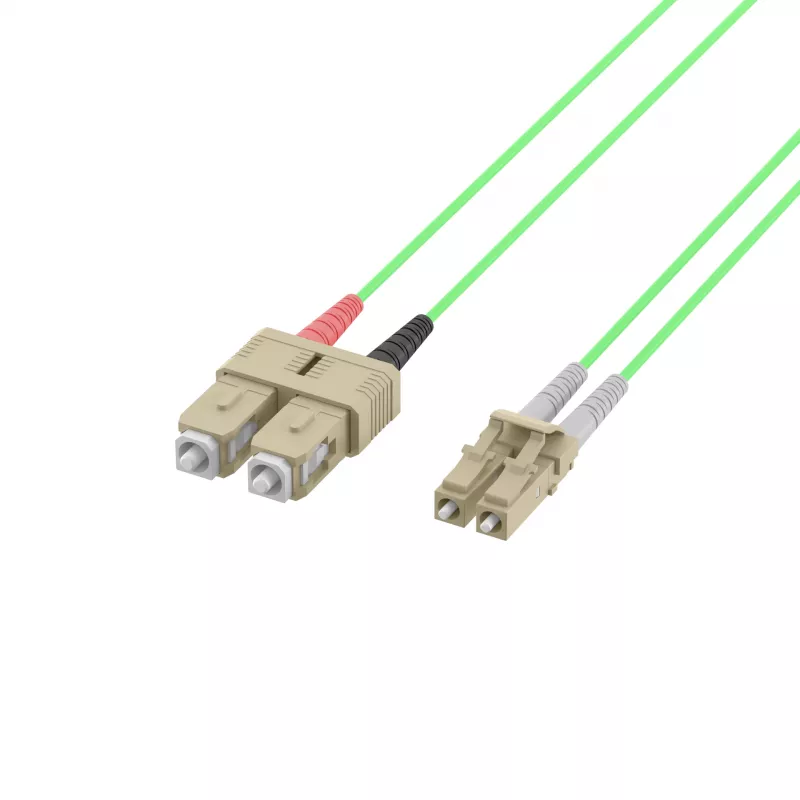

EFB Elektronik IPL-DR-LCUSCU-5-0500 Cabo de patch de fibra ótica, OM5, LC-SC, 5 m, LSZH, verde-limão

The EFB Elektronik IPL-DR-LCUSCU-5-0500 is a high-performance fiber optic patch cable designed for demanding network environments. Featuring OM5 wideband multimode fiber (WBMMF), this duplex cable supports multiple wavelengths for high-speed data transmission up to 40 Gbps and beyond. With LC to SC connectors and a length of 5 meters, it is ideal for data centers, enterprise networks, and telecommunications infrastructure.

Advantages

OM5 fiber provides backward compatibility with OM3/OM4 while enabling future-proofing for emerging high-speed standards. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces by reducing toxic fumes and smoke in case of fire. The rugged I-V(ZN)H construction offers rodent protection and halogen-free materials, making it suitable for both indoor and outdoor installations.

Suitable for

• Data center interconnects
• Enterprise network cabling
• Telecommunications and broadband
• High-speed storage area networks (SAN)
• Video and broadcast applications

Key specifications

• Fiber Type: Multimode OM5 (50/125 µm)
• Connectors: LC Duplex to SC Duplex
• Cable Length: 5 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Construction: I-V(ZN)H (Indoor/Outdoor, Non-Metallic, Rodent Protected)
• Jacket Color: Lime Green
• Attenuation: 3.5 dB/km @ 850nm, 2.3 dB/km @ 953nm, 1.5 dB/km @ 1300nm
• Minimum Modal Bandwidth: 2800 MHz·km @ 850nm, 1850 MHz·km @ 953nm
• Insertion Loss: ≤ 0.3 dB (typical)
• Return Loss: ≥ 30 dB (typical)
• Operating Temperature: -20°C to +70°C
• Standards: IEC 60793-2-10 Type A1a.4, ISO/IEC 11801, EN 50173, TIA/EIA-568.3-D

Recommendations

For optimal performance, ensure connectors are cleaned before installation. This cable is compatible with all standard LC and SC interfaces. Pair with OM5-rated transceivers for maximum bandwidth.
