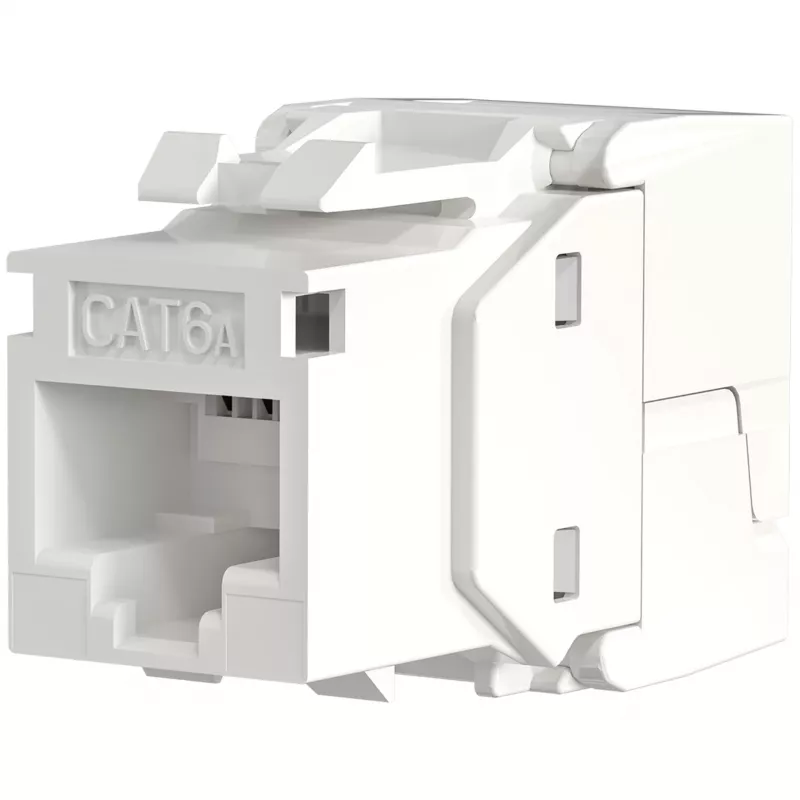

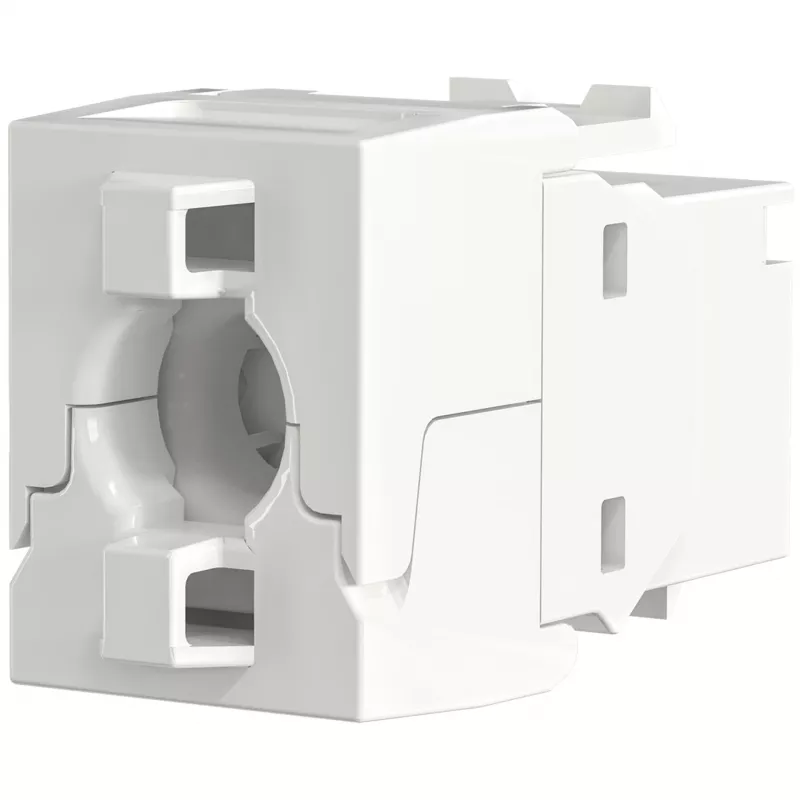

EFB Elektronik Keystone RJ45 UTP Cat.6A 500MHz Component Certified - Rede - Vídeo/Analógico

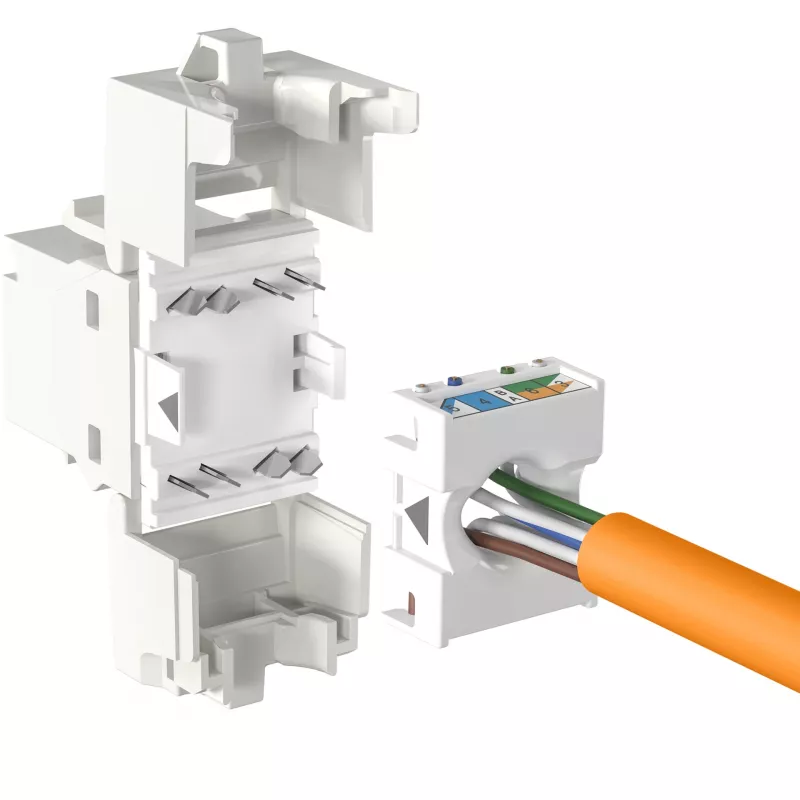

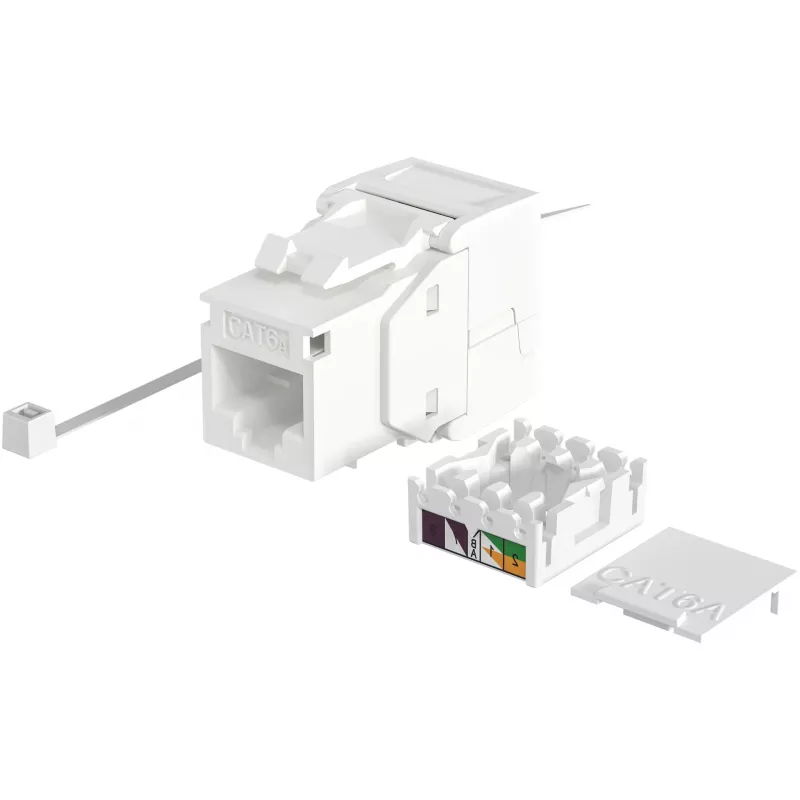

The EFB Elektronik RJ45 Keystone UTP Cat.6A module is a high-performance, component-certified keystone jack designed for structured cabling networks. It supports frequencies up to 500 MHz, exceeding Cat.6A standards, and is ideal for high-speed data, video, and analogue signal transmission. The tool-less IDC termination ensures quick and reliable installation without special tools.

Advantages

Component certified for guaranteed performance; tool-less termination reduces installation time; supports PoE++ for power-hungry devices; gold-plated contacts ensure reliable connectivity over 750 insertion cycles.

Suitable for

• Enterprise LAN cabling
• Data centers requiring high bandwidth
• Video surveillance and analogue signal distribution
• PoE applications including cameras, access points, and IoT devices

Key specifications

• Connector Type: RJ45
• Module Type: Keystone Jack
• Shielding: UTP (Unshielded Twisted Pair)
• Performance Category: Cat.6A (ISO/IEC 11801 Class EA)
• Frequency Bandwidth: 500 MHz
• Certification: Component Certified (e.g., GHMT, Delta)
• Termination Type: IDC, Tool-less
• Number of Contacts: 8P8C
• Contact Plating: Gold-plated (typically 50µ")
• Wire Gauge Compatibility: AWG 22-24 solid wire
• Wiring Standard: TIA/EIA 568 A/B
• Housing Material: Plastic
• PoE Support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Insertion Cycles: >750
• Operating Temperature: -10°C to +60°C
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Color: White (RAL 9010)

Recommendations

For optimal performance, pair with Cat.6A patch cables and compatible patch panels. Ensure proper cable management to maintain signal integrity.
