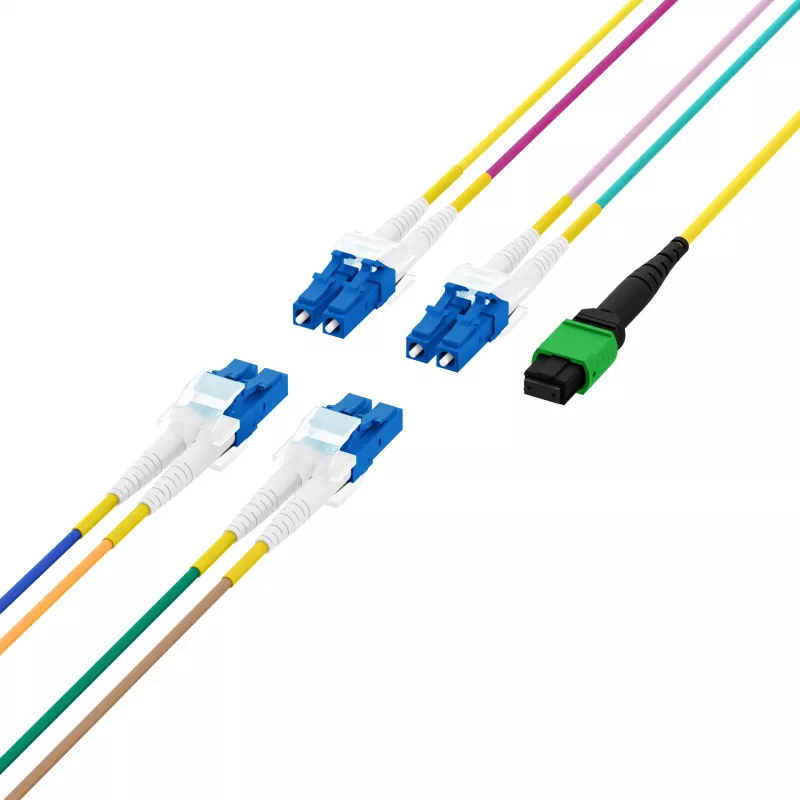

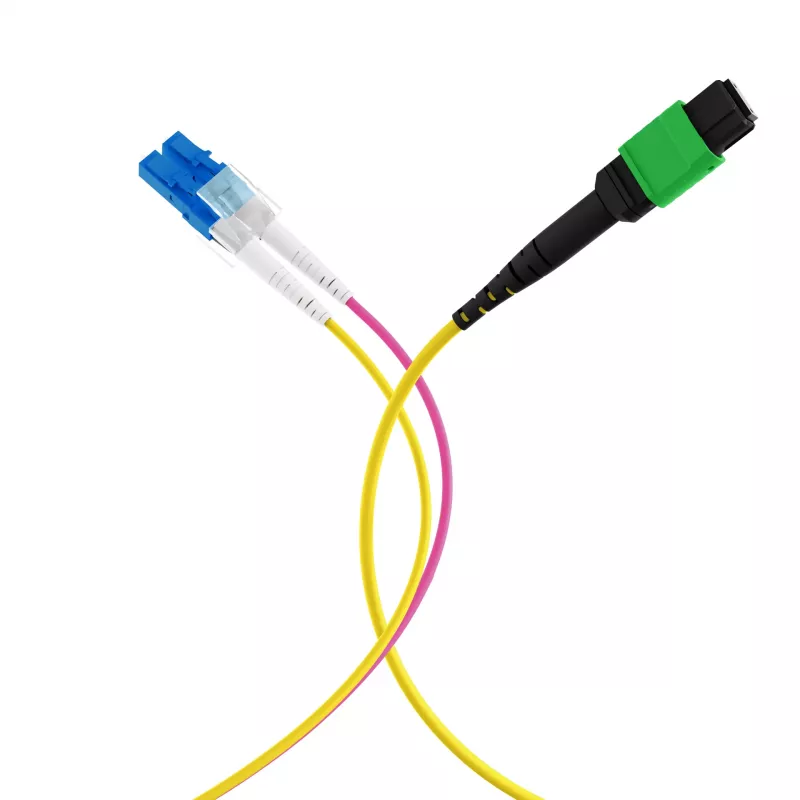

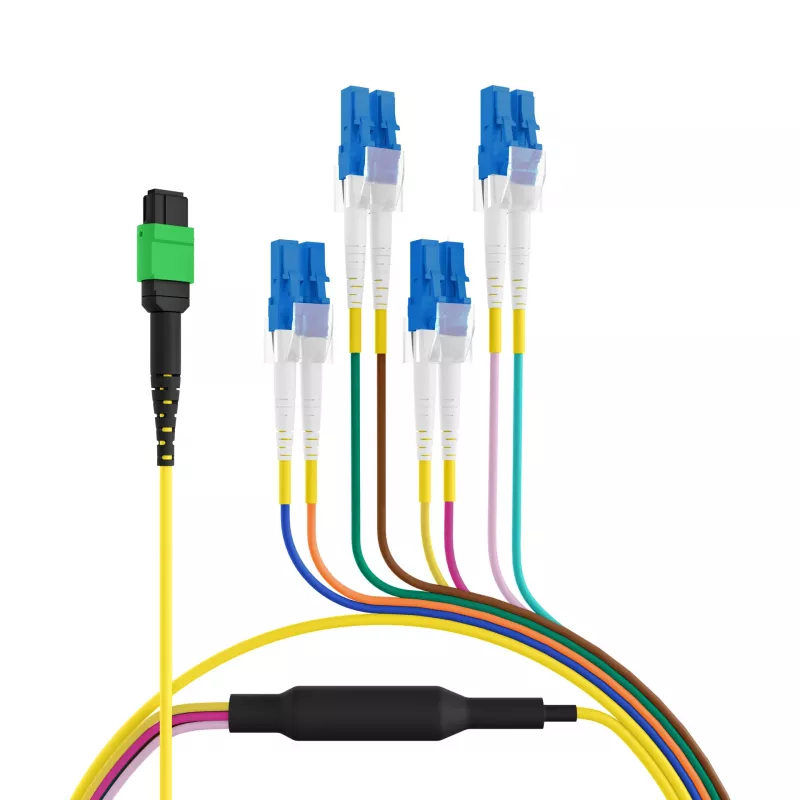

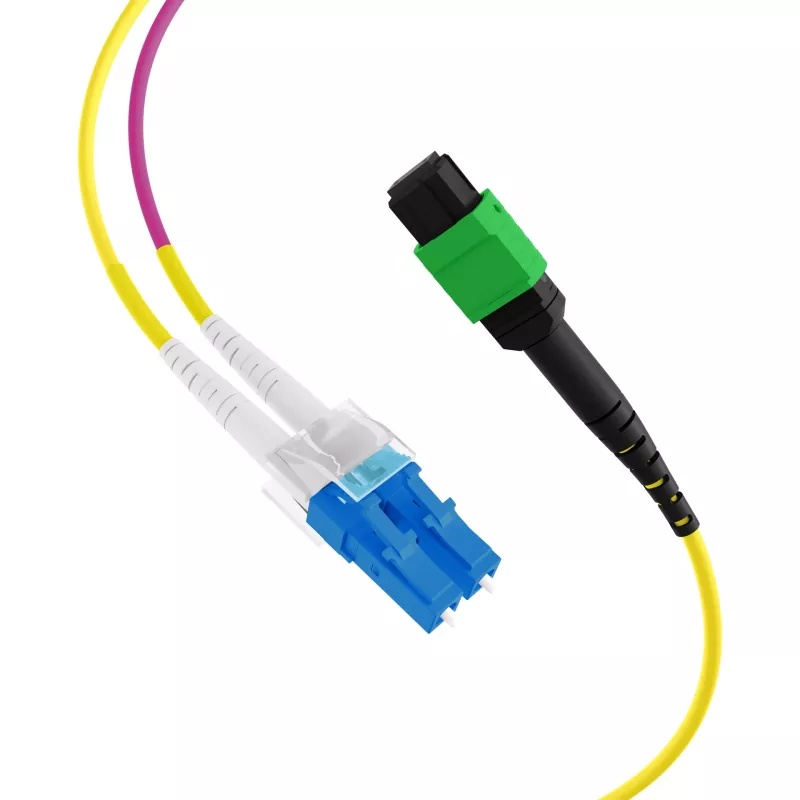

EFB Elektronik MPOF08LCOS2-2 cabo trunk MPO-PLUS/APC(F) para LC OS2 8 fibras, tipo B, LSZH, amarelo, 2 m

This fiber optic trunk cable provides a high-density MPO-PLUS/APC female to 4x duplex LC connection for 8-fiber singlemode OS2 links. Its Type B polarity and yellow LSZH jacket support structured cabling in data centers and enterprise networks.

Advantages

MPO-PLUS/APC connector with angled polish ensures low back reflection, while the LSZH jacket reduces toxic smoke in fire conditions. The 2 m length is ideal for patching between MPO cassettes and LC equipment.

Suitable for

• 40G/100G parallel optic links
• Data center backbone cabling
• Telecom distribution frames

Key specifications

• Fiber type: OS2 singlemode
• Fiber count: 8
• Connector A: MPO-PLUS/APC (female)
• Connector B: 4x duplex LC
• Polarity: Type B
• Jacket: LSZH, yellow
• Length: 2 m
• Insertion loss: MPO < 0.35 dB, LC < 0.25 dB
• Return loss: MPO APC > 60 dB, LC > 50 dB
• Operating temperature: -20°C to +70°C

Recommendations

Verify polarity and gender compatibility with your MPO cassettes and transceivers before installation.
