EFB Elektronik MPOF12LCOM4-5 cabo trunk MPO-PLUS (F) para LC duplex, OM4, 12 fibras, tipo B, LSZH, violeta erika, 5 m

The MPOF12LCOM4-5 trunk cable is a factory-terminated 12-fiber OM4 assembly that converts a single MPO-PLUS (female) connector into six LC duplex ports, saving rack space and installation time in high-density 40G/100G Ethernet environments. Its Type B polarity and Erika Violet LSZH jacket make it easy to identify and safe for indoor use where low smoke and zero halogen are required.

Highlights

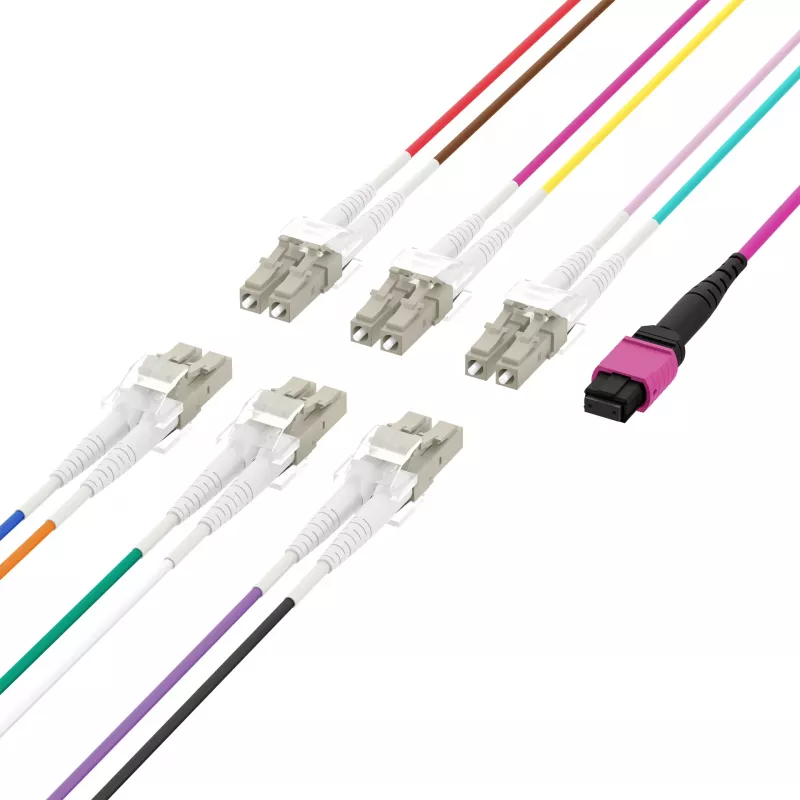

• 12 multimode OM4 fibers (50/125 µm) with MPO-PLUS female to 6× LC duplex breakout
• Type B polarity for standard parallel optics connectivity
• LSZH jacket in Erika Violet for easy identification and safety
• 5-meter length, ideal for patching between distribution areas
• Low insertion loss: max 0.35 dB MPO, 0.25 dB LC

In daily use

This trunk cable is a reliable backbone for data centers, SANs, and LANs. The MPO-PLUS connector ensures stable mating with reduced wear, while the breakout to LC duplex allows direct connection to transceivers or patch panels. The LSZH jacket meets strict fire safety requirements, and the Erika Violet colour helps distinguish OM4 from other fiber grades.

Full specifications

• Fiber type: OM4 multimode, 50/125 µm core/cladding
• Fiber count: 12
• Connector A: MPO-PLUS (female)
• Connector B: 6× LC duplex
• Polarity: Type B
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable colour: Erika Violet
• Length: 5 m
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Max insertion loss: 0.35 dB (MPO), 0.25 dB (LC)
• Operating temperature: -10°C to +70°C
• Storage temperature: -20°C to +85°C
• Compliance: RoHS, REACH

Final note

For high-density fiber links where performance and safety matter, the MPOF12LCOM4-5 delivers a clean, factory-tested solution.
