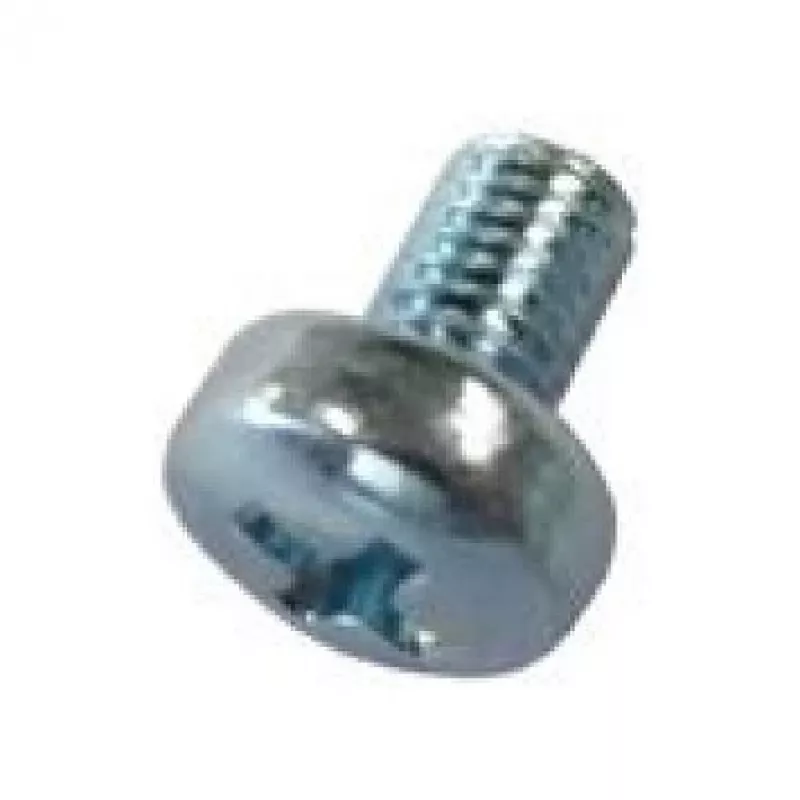

EFB Elektronik Parafuso de cabeça lenticular M5 x 8 mm 4.8 zincado DIN 7985

The EFB Elektronik Pan Head Screw M5 x 8 mm is a high-quality metric screw designed for general fastening applications in electronics and light machinery. Manufactured from steel with property class 4.8 and zinc-plated finish, it offers moderate corrosion resistance and reliable performance. Compliant with DIN 7985 standard and RoHS certified.

Advantages

This screw provides a secure and durable fastening solution. The zinc plating protects against rust, while the Phillips drive (PH2) ensures easy installation. Its pan head design offers a low profile and a neat appearance.

Suitable for

• General fastening in electronics and light machinery
• Assembling components where a metric coarse thread is required
• Applications needing moderate corrosion resistance

Key specifications

• Thread Diameter: M5
• Length: 8 mm
• Thread Pitch: 0.8 mm
• Drive Type: Phillips (PH2)
• Material: Steel, Property Class 4.8
• Surface Finish: Zinc Plated
• Standard: DIN 7985
• Head Diameter: approx. 9.2 mm
• Head Height: approx. 3.1 mm
• Tensile Strength: 400 MPa
• Yield Strength: 320 MPa
• RoHS Compliant: Yes

Recommendations

For best results, use with a matching nut or threaded hole. Ensure the screw is tightened to the recommended torque for property class 4.8. Store in a dry environment to preserve the zinc coating.
