EFB Elektronik PDU de carregamento USB para rack 19" 1U - 16 portas USB, entrada CEE 7/7, Preto

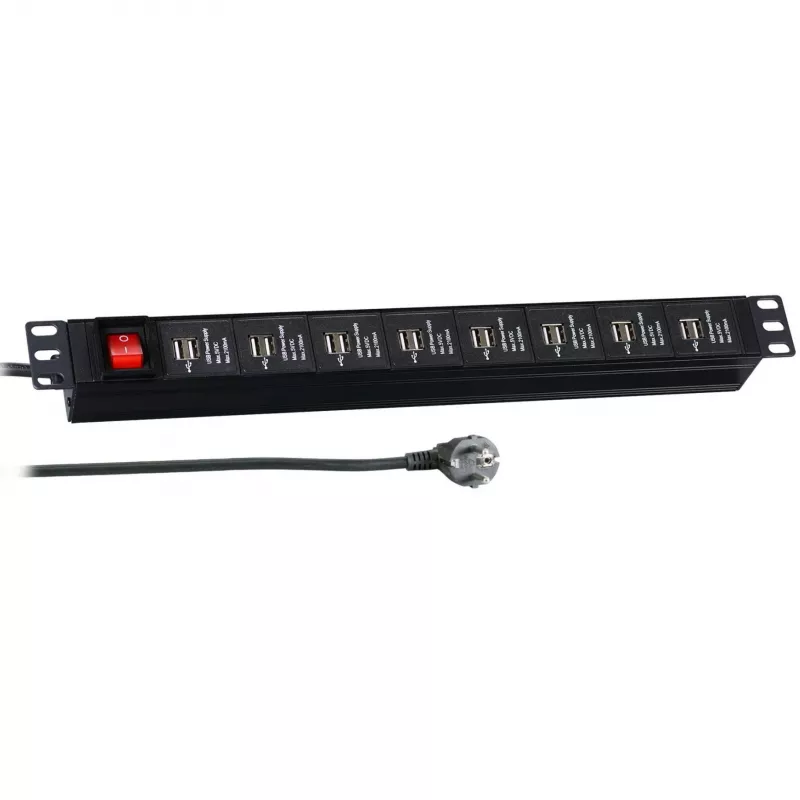

The EFB Elektronik EK631USB.1 is a professional 19-inch 1U rackmount USB charging PDU designed for centralized charging of multiple devices in server racks, network cabinets, or workstations. With 16 USB Type-A ports delivering a total power output of 150W (5V DC, up to 2.4A per port), it provides efficient and organized power distribution for smartphones, tablets, and other USB-powered equipment. The unit features a CEE 7/7 (Schuko) input plug with a 2-meter cable and includes a power switch for easy control.

Advantages

Space-saving 1U design fits standard 19-inch racks, eliminating clutter and providing a centralized charging solution. High total output current of 30A ensures simultaneous charging of multiple devices without overload. Built-in overcurrent and overvoltage protection safeguards connected devices. LED power status indicator provides at-a-glance monitoring.

Suitable for

• Data centers and server rooms requiring organized USB charging
• Educational institutions and libraries with device charging stations
• Retail and hospitality environments for customer device charging
• Office workstations and conference rooms
• Industrial and laboratory settings needing reliable USB power

Key specifications

• Device Type: Rackmount USB Charging PDU
• Rack Size: 19-inch, 1U
• Input Connector: CEE 7/7 (Schuko) Plug
• Input Voltage: 230V AC, 50/60 Hz
• Output Connectors: 16 x USB Type-A
• Output Voltage: 5V DC per port
• Max. Output Current per Port: 2.4A
• Total Max. Output Current: 30A
• Total Max. Power Output: 150W
• Housing Material: Steel / Aluminum
• Color: Black
• Input Cable Length: 2 meters
• Protection: Overcurrent, Overvoltage
• LED Indicators: Power Status
• Mounting Orientation: Horizontal
• Certifications: CE, RoHS

Recommendations

For optimal performance, connect the PDU to a dedicated 230V AC circuit. Ensure the total current draw of connected devices does not exceed 30A. This unit is ideal for environments where multiple USB devices need to be charged simultaneously in a compact, rack-mounted form factor.
