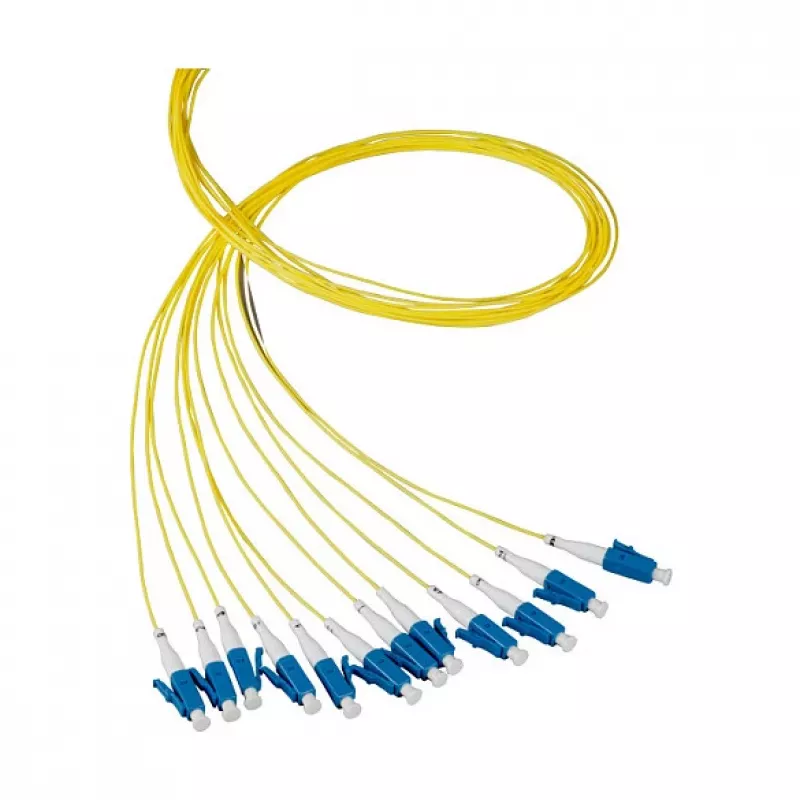

EFB Elektronik Pigtail de Fibra LC-APC 8° 9/125 OS2 Monomodo Amarelo 2 m

The EFB Elektronik Fibre Pigtail LC-APC 8° 9/125 OS2 is a high-quality single-mode fiber optic pigtail designed for reliable and low-loss connections in data centers, telecommunications, FTTx, and LAN networks. This pigtail features a pre-terminated LC/APC connector with an 8° angled polish to minimize back reflection, ensuring excellent return loss performance. The 9/125 µm core/cladding diameter complies with OS2 standards, and the fiber is bend-insensitive (ITU-T G.657.A1) for easy handling. The yellow LSZH jacket provides durability and safety, while the 2-meter length offers flexibility in patch panel and splice closures.

Advantages

Low insertion loss (≤0.3 dB typical) and high return loss (≥60 dB typical) ensure optimal signal integrity. The bend-insensitive fiber reduces signal degradation in tight bends. LSZH jacket enhances fire safety. Zirconia ceramic ferrule guarantees stable performance.

Suitable for

• Data centers
• Telecommunications networks
• FTTx (Fiber to the x)
• Local Area Networks (LAN)
• Patch panels and splice closures

Key specifications

• Connector: LC/APC (8° angle)
• Fiber type: Single-mode OS2
• Core/Cladding: 9/125 µm
• Fiber standard: ITU-T G.657.A1
• Length: 2 m
• Jacket: LSZH, yellow
• Number of fibers: 1 (simplex)
• Buffer diameter: 0.9 mm
• Insertion loss: ≤0.3 dB typical
• Return loss: ≥60 dB typical
• Ferrule: Zirconia ceramic
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with compatible LC/APC adapters and ensure proper cleaning before installation. This pigtail is ideal for high-speed networks requiring low loss and high return loss.
