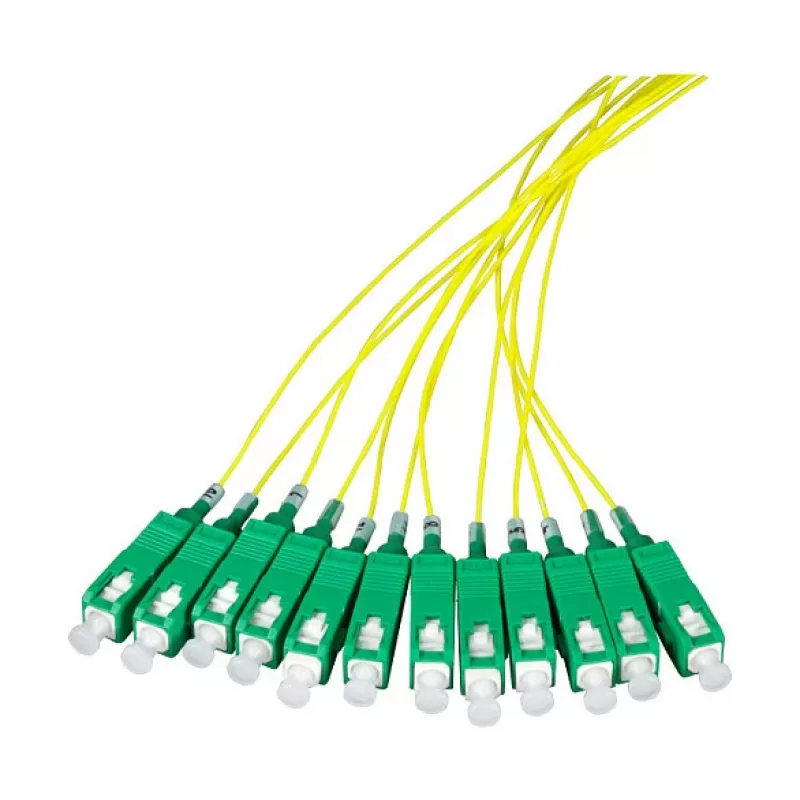

EFB Elektronik Pigtail de fibra SC-APC8° 9/125µm OS2 amarelo, 2m

The EFB Elektronik Fibre Pigtail SC-APC8° is a high-quality single-mode fiber optic pigtail designed for reliable and low-loss connections in telecommunications, data centers, and FTTx networks. With a 9/125µm core/cladding and OS2 ultra-low loss performance, this pigtail ensures excellent signal integrity over long distances. The SC connector features an 8° angled physical contact (APC) polish for minimal back reflection, making it ideal for high-bandwidth applications. The yellow LSZH jacket provides durability and safety in indoor installations.

Advantages

This pigtail offers exceptional insertion loss (≤0.2 dB) and return loss (≥60 dB), ensuring high-performance signal transmission. The LSZH jacket reduces toxic fumes in case of fire, enhancing safety. Its 2-meter length provides flexibility for splicing and patching in confined spaces.

Suitable for

• FTTx networks
• Data centers
• Telecommunications
• LAN and WAN infrastructure
• Fiber optic termination and splicing

Key specifications

• Product Type: Fiber Optic Pigtail
• Fiber Type: Single-mode OS2
• Core/Cladding: 9/125 µm
• Connector: SC/APC with 8° angle
• Length: 2 m
• Jacket: LSZH, Yellow
• Insertion Loss: ≤0.2 dB
• Return Loss: ≥60 dB
• Operating Temperature: -20°C to +70°C
• Standards: IEC 61754-4, TIA/EIA-604-3A, RoHS, REACH

Recommendations

For optimal performance, use with compatible SC/APC adapters and ensure proper cleaning before installation. This pigtail is ideal for high-speed networks requiring low reflection.
