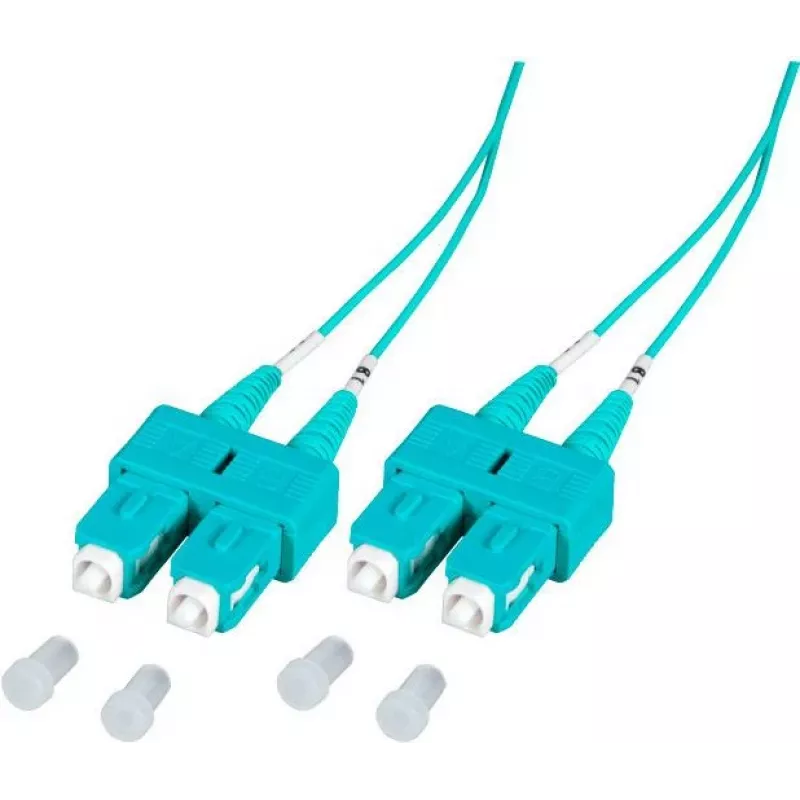

EFB Elektronik SCSCOM3DAQ2 Cabo de Patch de Fibra Ótica Multimodo Duplex SC OM3, LSZH Aqua, 2m

Connect high-speed network equipment in data centers and enterprise LANs with this 2-meter duplex multimode fiber optic patch cable. It features SC connectors on both ends and an aqua LSZH jacket, making it suitable for 10G Ethernet links up to 300 meters.

Key specifications

• Fiber type: OM3 multimode 50/125 µm
• Connectors: SC to SC, duplex
• Length: 2 m
• Jacket: LSZH, aqua
• Bandwidth: 1500 MHz·km @ 850 nm
• Insertion loss: ≤ 0.3 dB

Why choose it

The OM3 fiber supports 10 Gbps data rates up to 300 meters and 40/100 Gbps up to 100 meters. LSZH jacketing reduces toxic smoke in case of fire, making it appropriate for enclosed spaces.

Ideal use cases

• Data center interconnects
• LAN backbone links
• Storage area networks
• Fibre Channel connections

Good to know

This cable complies with IEC 60793-2-10 Type A1a.2 and TIA/EIA-492AAAC-A. Operating temperature range is -20°C to 70°C.
