EFB Elektronik U-DQ(ZN)BH 12G 50/125µm OM3 LSZH preto CPR-B2CA Cabo de fibra ótica low-smoke

The EFB Elektronik U-DQ(ZN)BH 12G 50/125µm OM3 LSZH Black CPR-B2CA Low-Smoke Fiber Optic Cable is a high-performance universal indoor/outdoor cable designed for reliable data transmission in demanding environments. With 12 multimode fibers of OM3 class, it supports high-bandwidth applications up to 10 Gb/s over distances up to 300 meters. The cable features a loose tube construction with non-metallic strain relief (aramid yarns) and a black LSZH (Low Smoke Zero Halogen) sheath, ensuring safety and durability. It complies with CPR fire classification B2ca, making it suitable for installation in buildings with strict fire safety requirements.

Advantages

This cable offers excellent attenuation performance: max 2.5 dB/km at 850 nm and 0.8 dB/km at 1300 nm, with modal bandwidth of 1500 MHz·km at 850 nm and 500 MHz·km at 1300 nm. The LSZH sheath minimizes toxic smoke emission in case of fire, enhancing safety for personnel and equipment. The non-metallic design eliminates the risk of electrical interference and is ideal for areas where metallic components are prohibited.

Suitable for

• Data center backbone cabling
• Local area network (LAN) installations
• Fiber-to-the-desk (FTTD) applications
• Industrial environments requiring low smoke and halogen-free materials
• Building infrastructure with CPR B2ca fire classification requirements

Key specifications

• Product Type: Fiber Optic Cable
• Fiber Type: Multimode
• Fiber Class: OM3
• Fiber Count: 12
• Core/Cladding Diameter: 50/125 µm

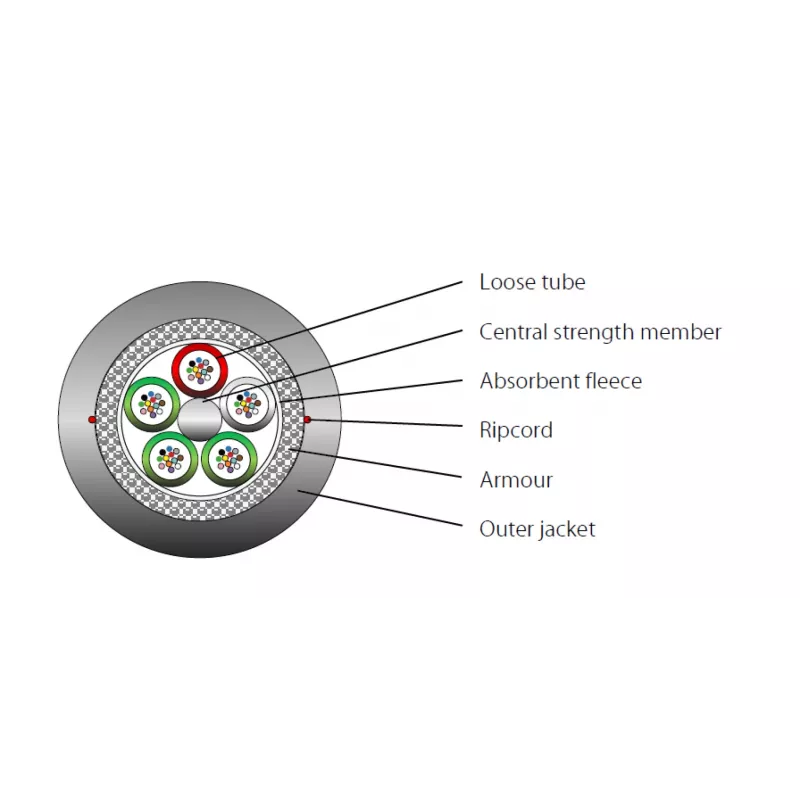

• Cable Construction: U-DQ(ZN)BH (Universal, Loose Tube, Non-Metallic Strain Relief)
• Sheath Material: LSZH (Low Smoke Zero Halogen)
• CPR Fire Classification: B2ca
• Cable Color: Black
• Application Environment: Indoor/Outdoor (Universal)
• Attenuation (850 nm): 2.5 dB/km max
• Attenuation (1300 nm): 0.8 dB/km max
• Modal Bandwidth (850 nm): 1500 MHz·km
• Modal Bandwidth (1300 nm): 500 MHz·km
• Standards Compliance: IEC 60794-1, EN 50575 (CPR)
• Strain Relief: Aramid Yarns (Non-metallic)

Recommendations

For optimal performance, use with OM3-compatible connectors and patch panels. Ensure proper cable management to maintain bend radius and avoid stress on fibers. This cable is ideal for new installations or upgrades requiring high-speed, reliable connectivity with enhanced safety features.
