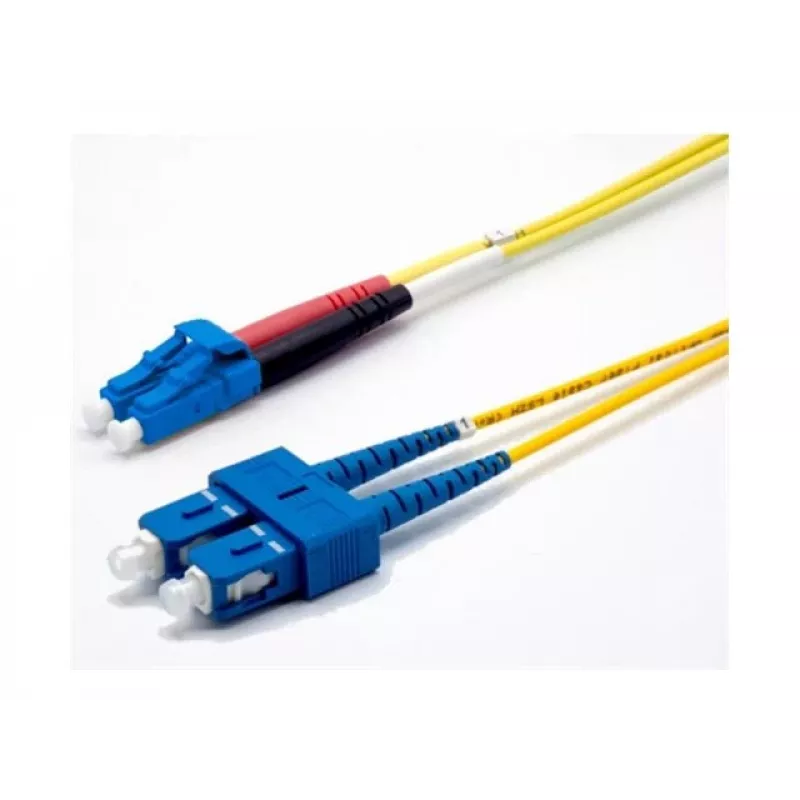

Ekivalan Cabo de rede OS2 Duplex, 9/125 µm, LC/SC, Amarelo, 2,0 m COZ008DCLC2SJ0020A

Fiber optic patch cables are the backbone of high-speed, long-distance data links, but poor connector alignment or substandard fiber can introduce loss and reflection, degrading signal integrity. This Ekivalan OS2 duplex patch cable eliminates those concerns with precision LC and SC connectors and single-mode OS2 fiber, ensuring reliable performance for your network infrastructure.

Who is it for

Network engineers, data center technicians, and IT professionals who need a dependable, low-loss connection between single-mode fiber equipment with LC and SC interfaces. Ideal for telecom rooms, enterprise backbones, and long-haul links.

Main features

• Duplex single-mode OS2 fiber (ITU-T G.652.D) with 9/125 µm core/cladding for long-distance transmission.
• LC to SC connectors with UPC polish for low insertion loss and high return loss.
• Yellow LSZH jacket for easy identification and low smoke, zero halogen safety.
• 2.0 m length, ideal for patching between panels and equipment.

Specifications

• Cable type: Fiber optic patch cable
• Fiber mode: Single-mode
• Fiber type: OS2
• Core/cladding diameter: 9/125 µm
• Connector 1: LC
• Connector 2: SC
• Connector polish: UPC
• Cable length: 2.0 m
• Jacket colour: Yellow
• Jacket material: LSZH
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Operating temperature: -20°C to 70°C
• Attenuation at 1310 nm: ≤ 0.35 dB/km
• Attenuation at 1550 nm: ≤ 0.25 dB/km

Tips

When installing, avoid sharp bends below the minimum bend radius to prevent signal loss. Use dust caps on connectors when not in use to maintain performance.
