Kopp Nautic Unidade combinada, tomada com interruptor e tampa basculante, cinzento, IP44, montagem à superfície 138656001

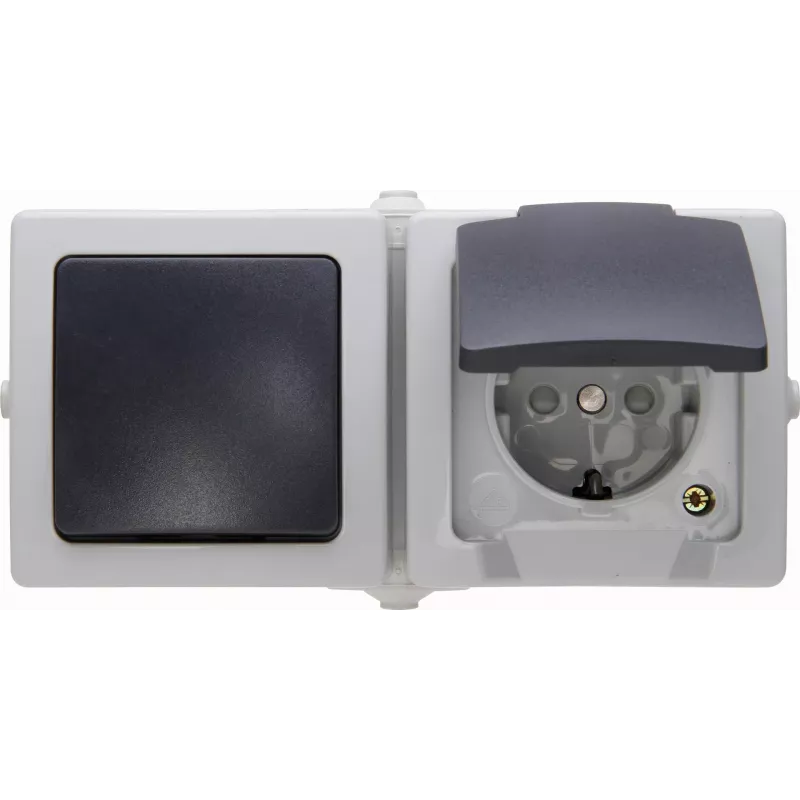

The Kopp Nautic combination unit integrates a Schuko socket with a hinged lid and a configurable switch (off-switch or two-way) in a single surface-mounted housing. Its splash-proof IP44 design and grey thermoplastic construction make it suitable for damp rooms and protected outdoor areas where a standard socket would be unsafe.

Highlights

• Integrated child protection in the socket
• Hinged lid keeps the socket clean and dry when not in use
• Switch can be wired as a single-pole off-switch or a two-way changeover switch
• Halogen-free material
• VDE certified

In daily use

The hinged lid opens easily to accept a standard Schuko plug and closes firmly to protect the contacts from splashes and dust. The switch provides convenient control of the connected load without unplugging, and the screw terminals allow secure connection of solid or stranded conductors. The grey colour blends with most outdoor and utility room installations.

Full specifications

• Product type: Combination unit (socket with switch)
• Series: Kopp Nautic
• Socket type: Schuko (Type F)
• Number of sockets: 1
• Switch type: Off-switch (single-pole) / changeover switch (two-way), configurable
• IP rating: IP44
• Mounting type: Surface-mounted
• Colour: Grey
• Material: Thermoplastic
• Rated voltage: 250 V AC
• Rated current (socket): 16 A
• Rated current (switch): 10 A
• Frequency: 50/60 Hz
• Connection type: Screw terminals
• Cover type: Hinged lid
• Child protection: Yes
• Halogen-free: Yes
• Suitable for: Damp rooms, outdoor protected areas
• Operating temperature: -25 °C to +40 °C
• Certifications: VDE

Final note

With its robust IP44 protection and integrated switch, this Nautic unit is a reliable choice for controlling power in demanding environments.
