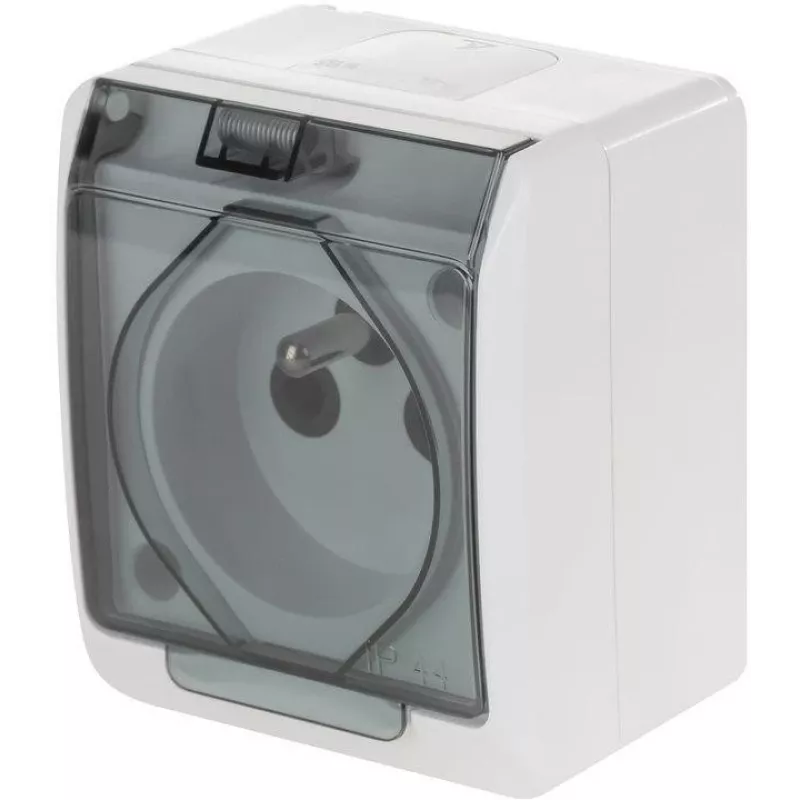

ELEKTRO-PLAST NASIELSK Hermes Tomada individual de sobrepor resistente às intempéries com contacto de proteção 16A IP44 Tampa cor de fumo GNT 0321-01

The ELEKTRO-PLAST NASIELSK Hermes GNT 0321-01 is a single surface-mounted weatherproof socket outlet designed for reliable electrical connections in damp and dusty environments. Featuring a hinged smoked flap and IP44 ingress protection, this socket is ideal for both indoor and outdoor applications where protection against splashing water and dust is required. The socket includes an earthing pin for safety and is rated for 16A/250V AC, compatible with Type E (Polish/French) plugs.

Advantages

This weatherproof socket offers robust protection with its IP44 rating, ensuring safe operation in challenging conditions. The smoked flap provides additional protection when not in use, while the surface-mounted design simplifies installation. The screw terminals allow for secure wiring up to 2.5 mm², and the thermoplastic body ensures durability over a wide temperature range.

Suitable for

• Outdoor power supply for garden tools, lighting, and appliances
• Industrial environments such as workshops and warehouses
• Damp indoor areas like basements, garages, and laundry rooms
• Temporary power connections at construction sites or events

Key specifications

• Socket Type: Single, Type E (Polish/French)
• Mounting: Surface-mounted
• Earthing: Yes (with earthing pin)
• Current Rating: 16 A
• Voltage Rating: 250 V AC
• Ingress Protection: IP44
• Protective Cover: Hinged, smoked/tinted flap
• Body Material: Thermoplastic
• Cover Material: Polycarbonate
• Colour: White (body), Smoked (flap)
• Connection: Screw terminals
• Max. Wire Cross-Section: 2.5 mm²
• Frequency: 50/60 Hz
• Operating Temperature: -20°C to +40°C
• Certifications: CE

Recommendations

For optimal performance, ensure the socket is installed by a qualified electrician and used within its rated specifications. Regularly inspect the flap and seals for wear to maintain IP44 protection.
