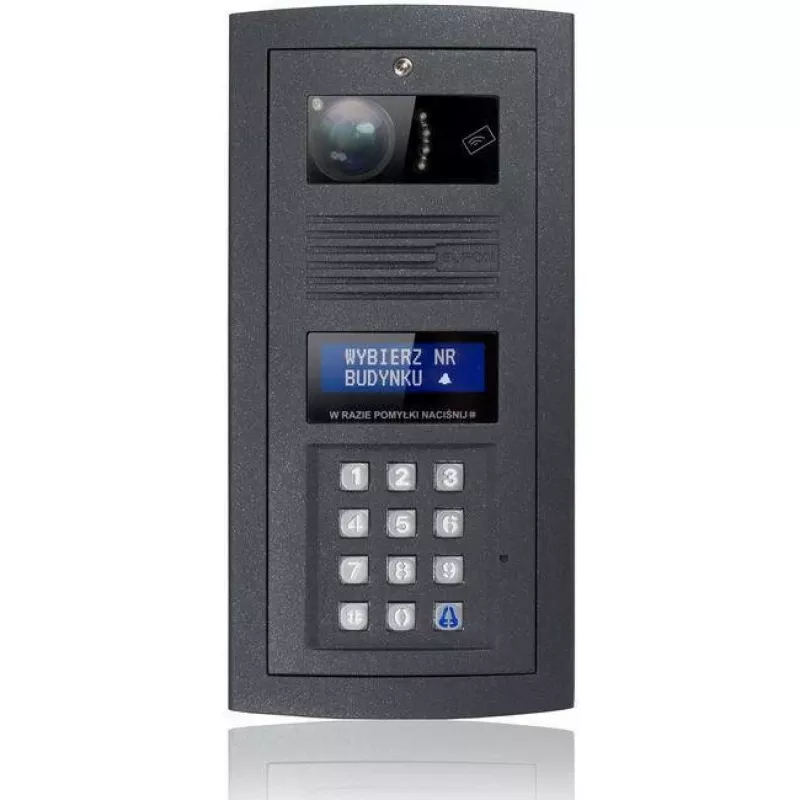

ELFON OPTIMA OP-MA765RC HR-G módulo com RFID

The ELFON OPTIMA OP-MA765RC HR-G is a module with RFID for the ELFON OPTIMA digital multi-zone intercom system. It features a built-in CCD camera with 700 TVL resolution and infrared illumination for night visibility. The module includes a RFID reader for access control using UNIQUE standard key fobs and cards.

Key features

• Built-in CCD camera with 700 TVL resolution
• Infrared illumination for night visibility
• Lens tilt adjustment of 15 degrees in each direction
• Symmetric video signal output for long-distance transmission
• Automatic display heating to reduce slowdown at low temperatures
• Additional relay for controlling external devices
• KE input for connecting a normally open (NO) button with configurable functions (electric strike, relay, or both)
• Automatic detection of intercom line short circuit
• Compatible with AC/DC and reversing electric strikes
• RFID reader for opening the lock with UNIQUE standard key fobs and cards
• Supports registration of: 8 service keys, 24 general keys, 20 keys per apartment (max. 5100 keys)
• Choice between two call modes: with or without confirmation (ringing after time)
• Panel protected by individual service code
• Graphite housing
• Flush-mounted part dimensions: 100x231x30 mm
• Surface-mounted part dimensions: 124x258x11 mm
• Maximum installation distance from panel to last handset or monitor: YTKSY 1x2x0.8 mm cable: 600 m for handsets, 350 m for monitors; YTKSY 1x2x0.5 mm cable: 350 m for handsets, 200 m for monitors
• Housing sold separately
• Digital multi-zone Master-Slave system
• Supports up to 765 apartments
• Maximum 15 access zones (local intercom lines)
• Maximum 8 Master panels Optima MA765
• Maximum 60 Slave panels Optima SL255
• Concierge service: Master panel can be installed at concierge for communication with all residents
• 3 types of dialing from Master panel: one-step (block number and apartment number), two-step (block number (ring) apartment number), and direct (apartment number)
• Polish product, manufacturer ELFON Sp. z o.o.
• Installation mode: allows panel-handset connection from the handset for solo testing
• Handset test: panel automatically detects handsets with improperly placed handset
• Apartment numbering: any number from 1-9999, non-contiguous ranges possible, physical handset number can be reassigned
• General parameter settings (e.g., lock open time, call time)
• Personalized settings per apartment (e.g., ring type and volume, ring time)
• Code system for lock opening: 8-digit service code (also for system configuration), 8 general codes (4-digit), 4-digit individual code for each apartment (255)
• "GABINET" mode: automatic electric strike opening when handset is off-hook
• Test functions for system configuration: communication test

Specifications

• Brand: Elfon
• Model: OP-MA765RC HR-G
• Camera resolution: 700 TVL
• Lens tilt adjustment: 15 degrees in each direction
• RFID standard: UNIQUE
• Flush-mounted dimensions: 100x231x30 mm
• Surface-mounted dimensions: 124x258x11 mm
• Housing color: graphite
• Maximum apartments: 765
• Maximum zones: 15
• Maximum Master panels: 8
• Maximum Slave panels: 60
• Maximum keys: 5100
