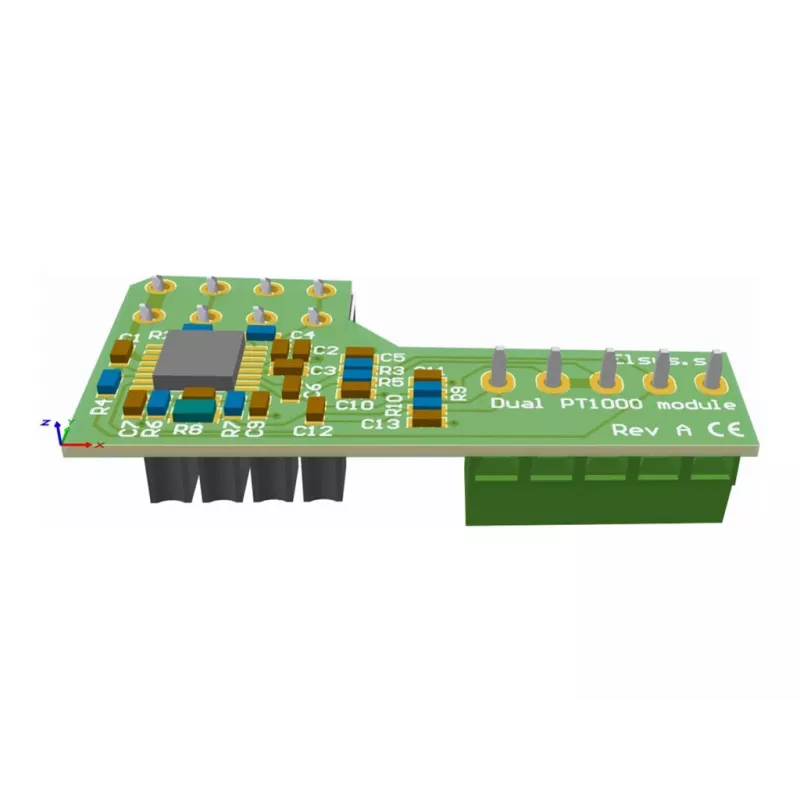

Elsys Módulo de barra de terminais - duplo

In industrial control panels and building automation systems, reliable connection points are essential. The ELSYS ELT-MOD-DUALPT1000 dual channel terminal block module provides a robust solution for distributing power and signals. With its 8-pole configuration (2x4), screw terminals, and DIN rail mounting, it simplifies wiring and ensures secure connections in demanding environments.

Key specifications

• Module type: Terminal block module, dual channel
• Number of poles: 8 (2x4 configuration)
• Connection method: Screw terminal
• Wire cross-section: 0.2 - 4 mm² solid (AWG 24-12), 0.2 - 2.5 mm² stranded (AWG 24-14)
• Rated voltage: 400 V AC / 600 V DC
• Rated current: 24 A
• Mounting: 35 mm DIN rail
• Housing material: Polyamide PA 6.6, flammability UL94-V0
• Operating temperature: -25°C to +70°C
• Colour: Grey
• Certifications: CE, RoHS
• Stripping length: 9-10 mm
• Tightening torque: 0.5 - 0.6 Nm
• Insulation resistance: > 10^9 Ohm
• Dielectric strength: 2.5 kV
• Pollution degree: 3

Why choose it

This terminal block module is built for reliability. The polyamide housing offers excellent mechanical and electrical insulation, while the high insulation resistance and dielectric strength ensure safe operation. Its wide wire range and clear labelling make installation quick and error-free. The compact design saves space on the DIN rail without compromising performance.

Ideal use cases

• Industrial control panels
• Building automation systems
• Power distribution in machinery
• Signal and power wiring in cabinets

Good to know

The module is designed for use in pollution degree 3 environments, making it suitable for industrial settings. It complies with CE and RoHS directives, ensuring environmental and safety standards. Always follow the recommended stripping length and tightening torque for optimal connection quality.
