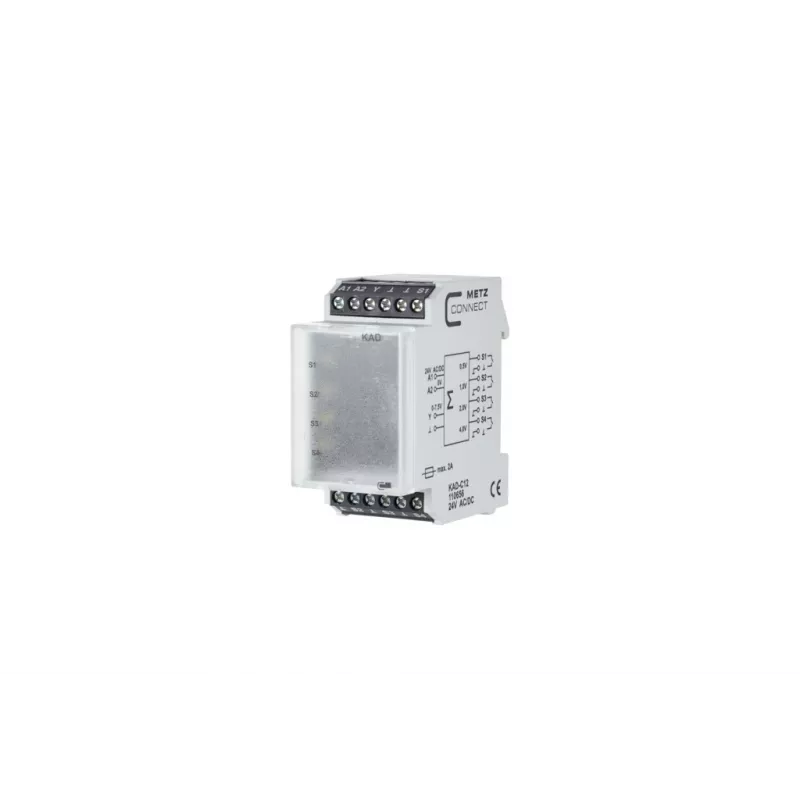

Emissor de valor analógico METZ CONNECT KAD-C12 0-10V 24V AC/DC botão rotativo encastrar branco puro 110656

Delivering a precise 0-10 V DC control signal from a 24 V AC/DC supply, the METZ CONNECT KAD-C12 analog value transmitter is a compact solution for building automation and HVAC control. Its rotary knob adjusts the output from 0 to 100% with a maximum current of 1 mA, ensuring accurate setpoint adjustment for actuators, dimmers, and controllers.

Overview

The KAD-C12 belongs to the KAD-C series of flush-mounted analog value transmitters. It is designed for installation in standard switch boxes, offering a clean, professional appearance with its pure white (RAL 9010) plastic housing. Connection is via screw terminals, and the unit operates with very low power consumption (max. 0.5 W), making it an energy-efficient choice for continuous use.

What stands out

• Wide supply voltage range: 24 V AC/DC ±15% for flexible integration.
• Linear 0-10 V DC output with 1 mA drive capability.
• User-friendly rotary knob for smooth 0–100% adjustment.
• Flush-mounted design fits standard switch boxes (IP20).
• Low power consumption of only 0.5 W.
• CE certified and suitable for operating temperatures from 0°C to +50°C.

Technical details

• Product type: Analog value transmitter
• Model series: KAD-C
• Operating voltage: 24 V AC/DC (±15%)
• Output signal: 0-10 V DC
• Max output current: 1 mA
• Control element: Rotary knob
• Adjustment range: 0-100%
• Power consumption: Max. 0.5 W
• Mounting type: Flush-mounted (standard switch box)

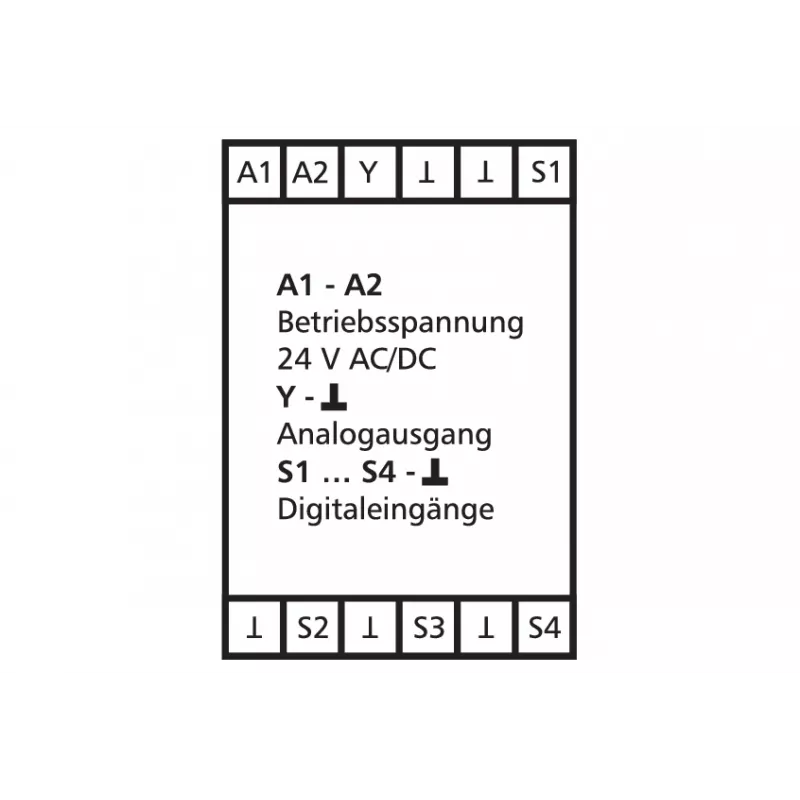

• Connection type: Screw terminals
• Protection class: IP20
• Operating temperature: 0°C to +50°C
• Storage temperature: -20°C to +70°C
• Housing material: Plastic
• Color: Pure white (RAL 9010)
• Application area: Building automation, HVAC control
• Certifications: CE
• Number of outputs: 1

Our verdict

The METZ CONNECT KAD-C12 is a reliable and precise analog value transmitter that excels in building automation tasks. Its robust design, low energy consumption, and simple rotary adjustment make it a practical choice for installers and system integrators.
