EMITER paraquadros acoplado AC hermetic IP65 descarregador de sobretensão Noark Tipo 2, 50A trifásico, RCD Tipo A 63A/300mA

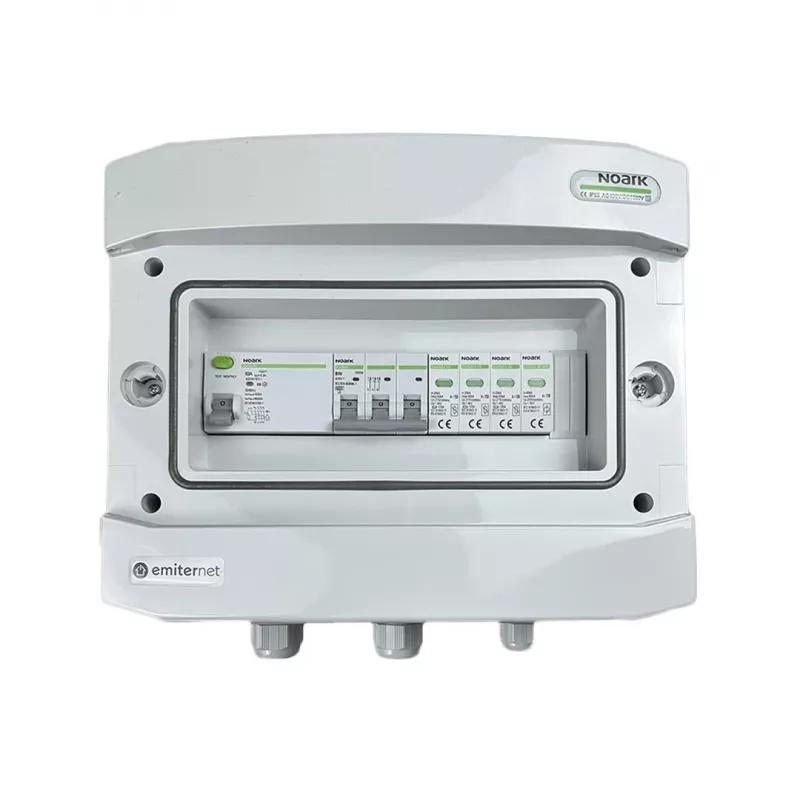

The EMITER Switchgear Attached AC Hermetic IP65 Surge Arrester Noark Type 2 is a robust surge protective device designed for industrial and commercial applications. It combines Type 2 surge protection with an integrated RCD (Type A, 63A/300mA) and a 50A switchgear, all housed in a hermetically sealed IP65 enclosure for outdoor or harsh environments.

Advantages

This all-in-one unit simplifies installation by combining surge protection, residual current protection, and switchgear in a single enclosure. The IP65 rating ensures protection against dust and water jets, making it suitable for outdoor use. Hermetic sealing prevents moisture ingress, extending product life. The visual status indicator (green/red flag) allows quick inspection of protection status.

Suitable for

• Outdoor electrical panels and distribution boards
• Industrial facilities requiring Type 2 surge protection
• Commercial buildings with sensitive electronic equipment
• Applications needing RCD protection (Type A) for AC circuits

Key specifications

• Product Type: Surge Protective Device (SPD) with integrated RCD and switchgear
• SPD Type: Type 2
• System Type: AC (3-Phase + Neutral)
• Number of Poles: 3P+N
• Nominal Discharge Current (In): 20 kA (8/20 µs)
• Maximum Discharge Current (Imax): 40 kA (8/20 µs)
• Voltage Protection Level (Up): < 1.5 kV
• Maximum Continuous Operating Voltage (Uc L-N): 275 V AC
• Maximum Continuous Operating Voltage (Uc N-PE): 275 V AC
• Rated System Voltage (Un): 230/400 V AC
• Ingress Protection: IP65
• Mounting Type: Wall-mounted (enclosed)
• Protection Mode: L-N, N-PE
• Technology: Metal Oxide Varistor (MOV)
• Status Indication: Visual (green/red flag)
• Operating Temperature Range: -40°C to +80°C
• Housing Material: UV resistant polycarbonate
• Standards Compliance: IEC/EN 61643-11
• Maximum System Current: 50A
• RCD Type: A, 63A/300mA
• Hermetic Sealing: Yes

Recommendations

For optimal protection, install this device at the main distribution board. Ensure the system voltage and current ratings match your installation. Regular visual inspection of the status indicator is recommended. This product is ideal for upgrading existing panels or new installations requiring compact, all-in-one protection.
