EMITER Quadro elétrico DC/AC hermético IP66 EMITTER com descarregador de sobretensões DC Dehn 1000V Tipo 2, 6 x strings PV, 6 x MPPT // AC Dehn Tipo 2, 100A 3 fases, FR 100A, sinalização de fases + tomada

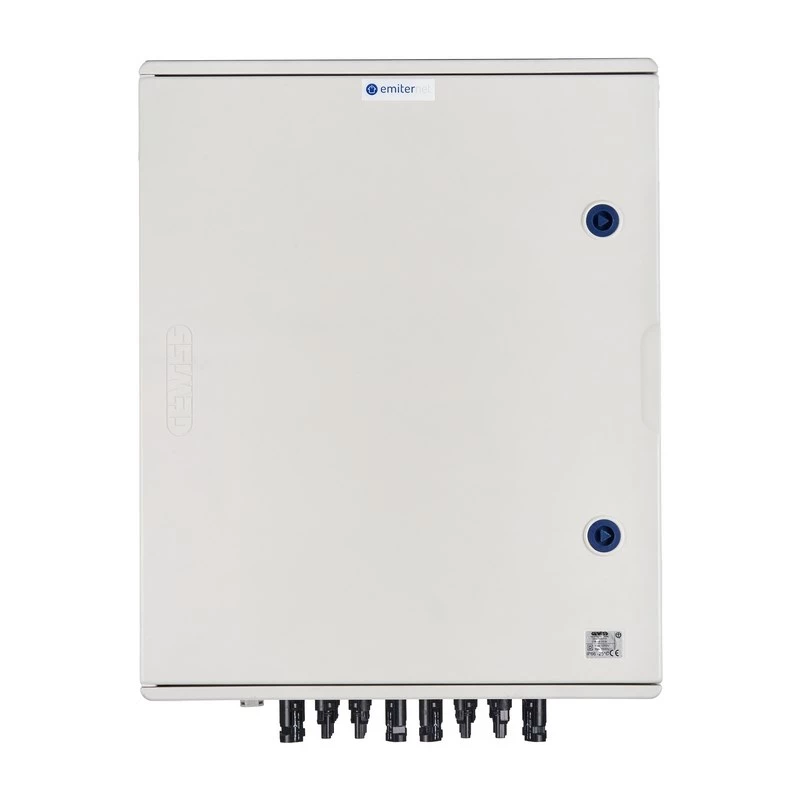

The EMITER EM-1009_DCAC is a high-performance PV DC/AC distribution box designed for demanding solar photovoltaic systems. It integrates both DC and AC surge protection, string fusing, and a main disconnect switch in a single hermetic IP66 enclosure, ensuring reliable operation in harsh outdoor environments.

Advantages

Combines DC and AC protection in one compact unit, reducing installation complexity and cost. Hermetic IP66 enclosure provides excellent dust and water ingress protection. Equipped with Dehn Type 2 surge arresters for both DC and AC sides, safeguarding against lightning-induced surges. Supports up to 6 PV strings with 6 MPPT channels, maximizing energy harvest. Includes a 100A 3-phase AC switch and auxiliary socket for convenient maintenance.

Suitable for

• Commercial and industrial solar PV installations
• Ground-mounted and rooftop solar systems
• Applications requiring robust surge protection and high ingress protection

Key specifications

• Product Type: PV DC/AC Distribution Box
• Enclosure Protection Rating: IP66
• DC Input Strings: 6
• MPPT Channels Supported: 6
• Max DC System Voltage: 1000 V
• DC Surge Protection Device (SPD): Dehn Type 2
• AC System Configuration: 3-Phase
• AC Rated Current: 100 A
• AC Surge Protection Device (SPD): Dehn Type 2
• Main AC Disconnector/Switch: 100 A
• SPD Manufacturer: Dehn
• Auxiliary Features: Phase Signaling, Auxiliary Socket
• Application: Solar Photovoltaic (PV) Systems
• Enclosure Type: Hermetic
• DC String Protection: Fuses

Recommendations

For optimal performance, ensure proper grounding and follow manufacturer installation guidelines. This unit is designed for use by qualified electricians.
