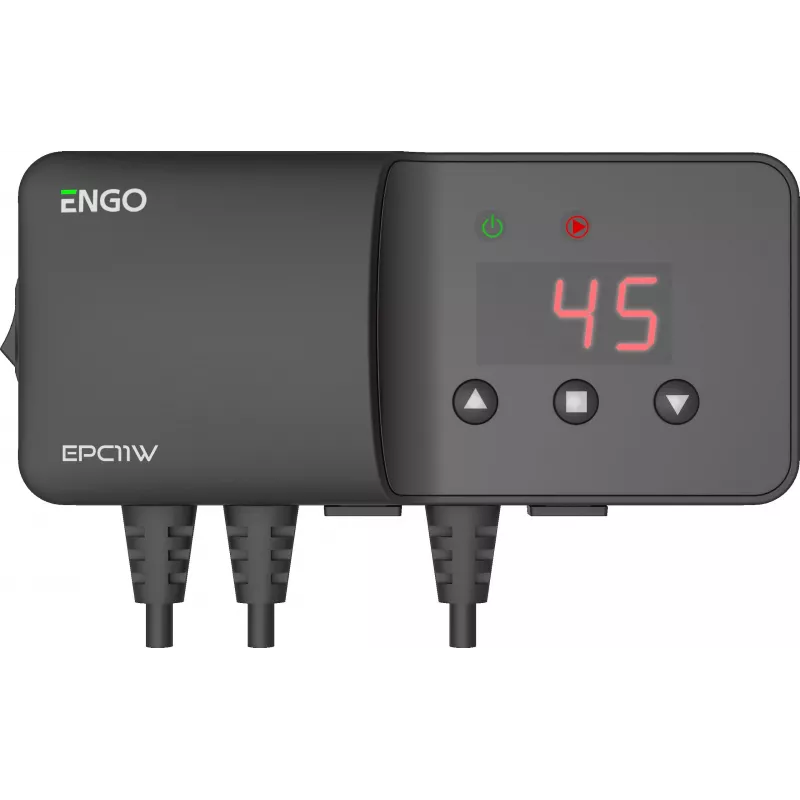

ENGO Controls EPC11W Controlador de Bomba

The ENGO Controls EPC11W is a professional pump controller designed for central heating (CH) and domestic hot water (DHW) systems. It provides reliable and efficient control of circulation pumps, ensuring optimal performance and energy savings. With its digital LED display and intuitive operation, the EPC11W is an ideal solution for modern heating installations.

Advantages

Energy-efficient operation with low power consumption (<2 W). Fixed hysteresis of 2°C ensures stable temperature control. Anti-stop and anti-freeze functions protect the pump and system. Easy wall-mounting and simple setup.

Suitable for

• Central heating pump control
• Domestic hot water pump control
• Replacement or upgrade of existing pump controllers

Key specifications

• Power supply: 230V AC, 50Hz
• Max output current: 6 A
• Max output power: 1380 W
• Power consumption: <2 W
• Temperature measurement range: 0 - 99°C
• Temperature setting range: 5 - 80°C
• Hysteresis: 2°C (fixed)
• Sensor type: NTC external temperature sensor
• Sensor cable length: 1.2 m
• Power cable length: 1.5 m
• Pump output cable length: 1.5 m
• Display: Digital LED
• Operating modes: CH pump, DHW pump
• Anti-stop function: Yes (15 sec every 10 days)
• Anti-freeze function: Yes (activates below 5°C)
• Protection class: IP20
• Mounting: Wall-mounted
• Operating ambient temperature: 0 - 40°C
• Housing material: ABS plastic

Recommendations

For best performance, install the controller in a dry indoor location. Ensure proper sensor placement for accurate temperature readings. Compatible with most single-phase circulation pumps.
