Ergotron 200 Series Combo Arm 61 cm (24") Parede Preto

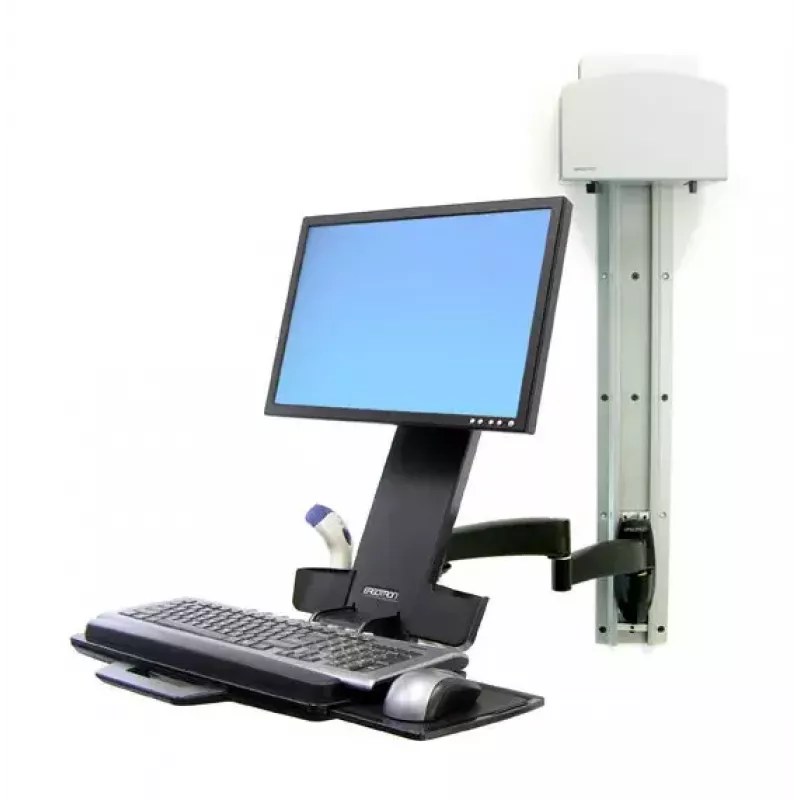

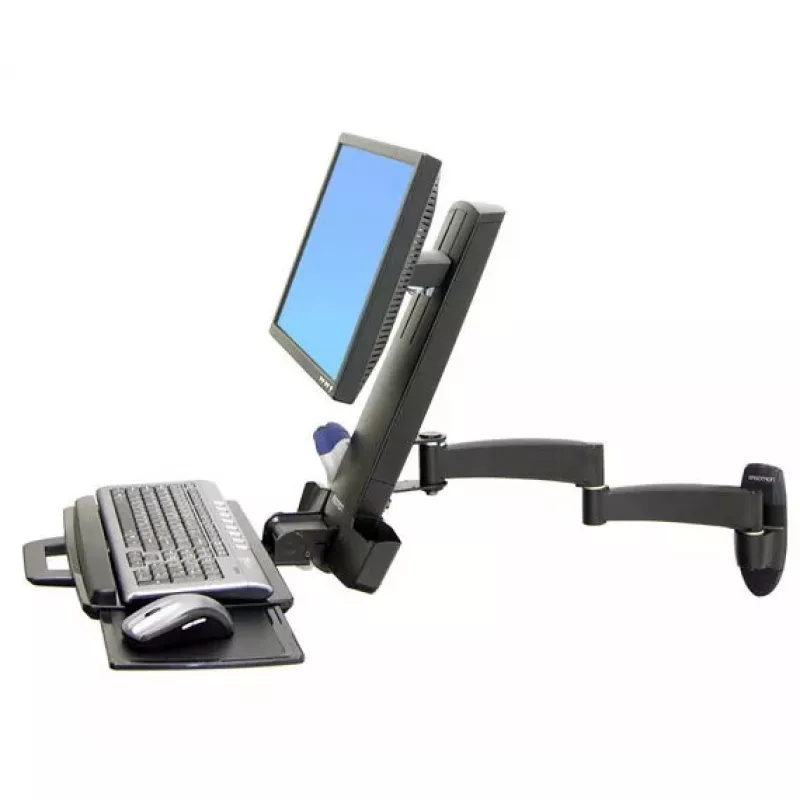

The Ergotron 200 Series Combo Arm 61 cm (24") Wall Black is a wall-mounted workstation arm that holds a monitor, barcode scanner, keyboard, wrist rest and mouse on the same articulating arm. It supports flat-panel displays up to 61 cm (24") and a maximum weight capacity of 8.2 kg, with VESA compatibility from 75 x 75 mm to 100 x 100 mm. The arm features three-point telescoping motion and a unique cable management system that conceals and organizes cords for easier cleaning and maintenance.

Advantages

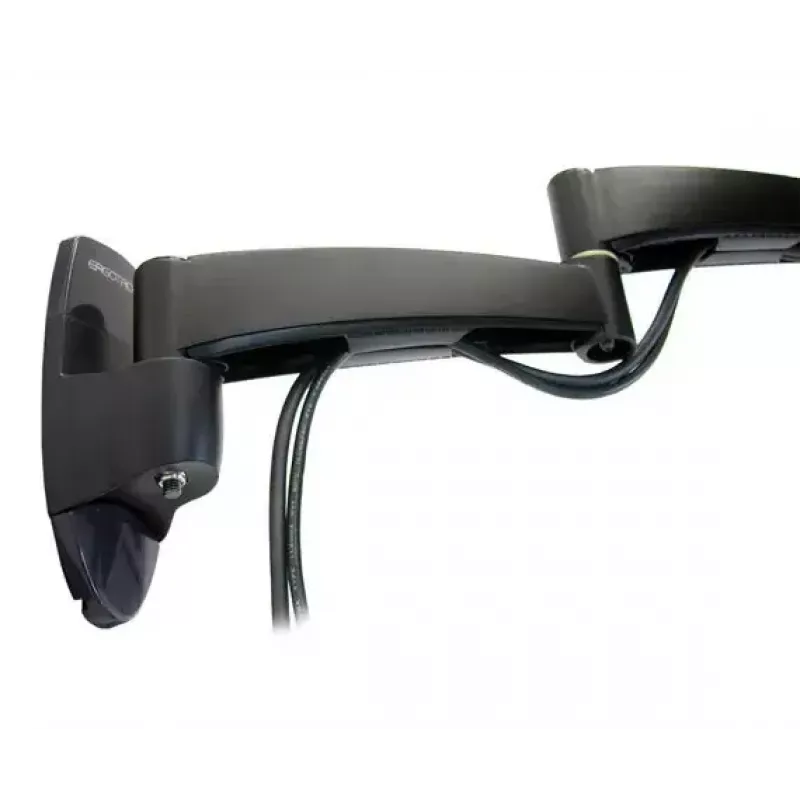

This combo arm allows easy positioning of the monitor and keyboard to improve ergonomic comfort and productivity. It offers adjustable distance between screen and keyboard, five-inch (13 cm) LCD height adjustment and a tilt range of -30° to 30° for optimal viewing. The product is constructed from rugged steel, uses Constant Force patented lift technology for smooth one-touch LCD adjustment, and includes an ergonomic negative-tilt keyboard tray with an interchangeable left or right mouse tray. A barcode scanner holder provides convenient access to handheld scanners. The expansive cable management system keeps cords hidden and organized, and the unit is simple to clean which supports infection-control needs.

Suitable for

• Point-of-care workstations in clinics and hospitals

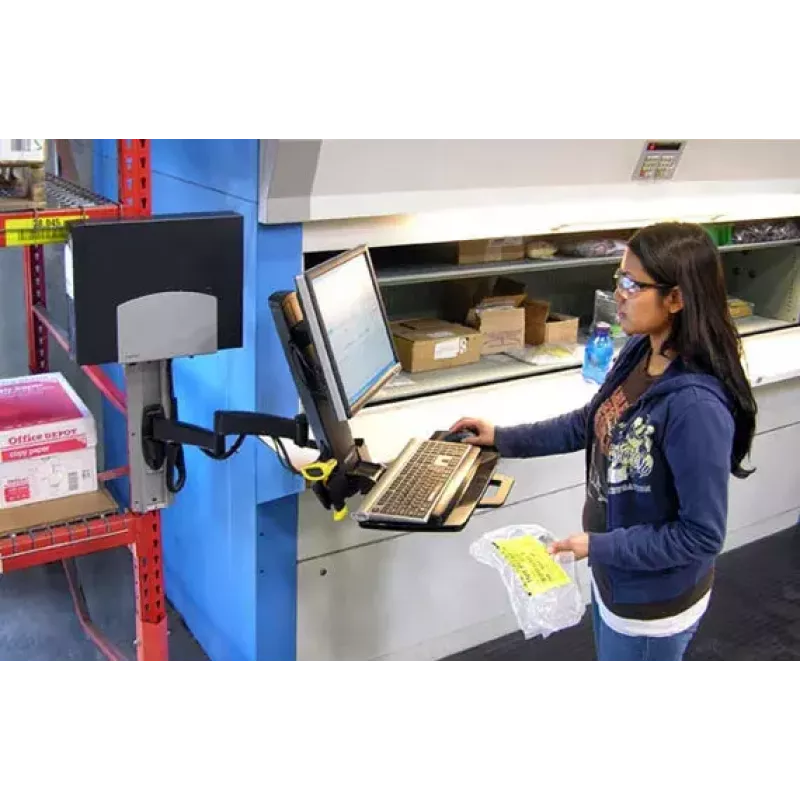

• Retail checkout and inventory stations with barcode scanning
• Laboratories and cleanroom-adjacent work areas requiring easy cleaning

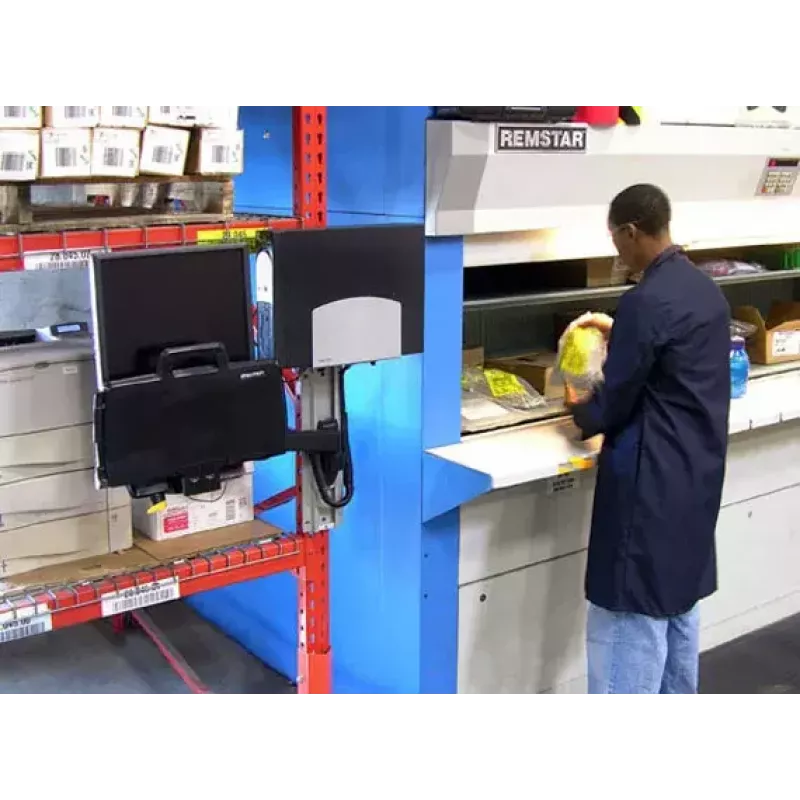

• Office or industrial environments where wall-mounted space-saving solutions are needed

Key specifications

• Maximum screen size: 24" (61 cm)
• Maximum weight capacity: 8.2 kg
• VESA compatibility: 75 x 75 mm to 100 x 100 mm
• Tilt range: -30° to 30°
• LCD height adjustment: 5 in (13 cm)
• Material: steel construction
• Product colour: Black
• Number of displays supported: 1

How to use

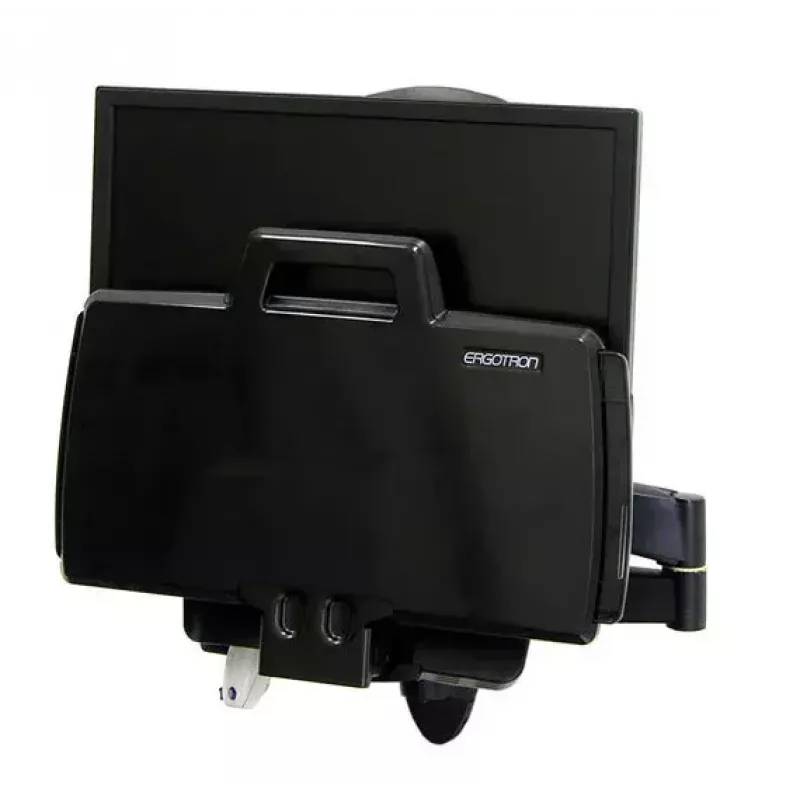

Mount the Ergotron 200 Combo Arm securely to a suitable wall surface following the manufacturer’s installation instructions and local building codes. Attach the monitor using the appropriate VESA holes and fasteners, then mount the keyboard, wrist rest, mouse tray and barcode scanner holder to the arm. Use the Constant Force adjustment to position the LCD and keyboard at the preferred height, distance and tilt for comfortable typing and viewing. Retract or fold the arm back against the wall when the workstation is not in use to save space.

Recommendations

Ensure the combined weight of monitor and accessories does not exceed the 8.2 kg capacity. Check that the wall and mounting hardware can support the load. Regularly route and secure cables within the cable management channel to maintain a clean, hygienic workspace and to prevent strain on connectors.
