Estroboscópio de discoteca Eurolite TSL-150 preto LED 30W DMX

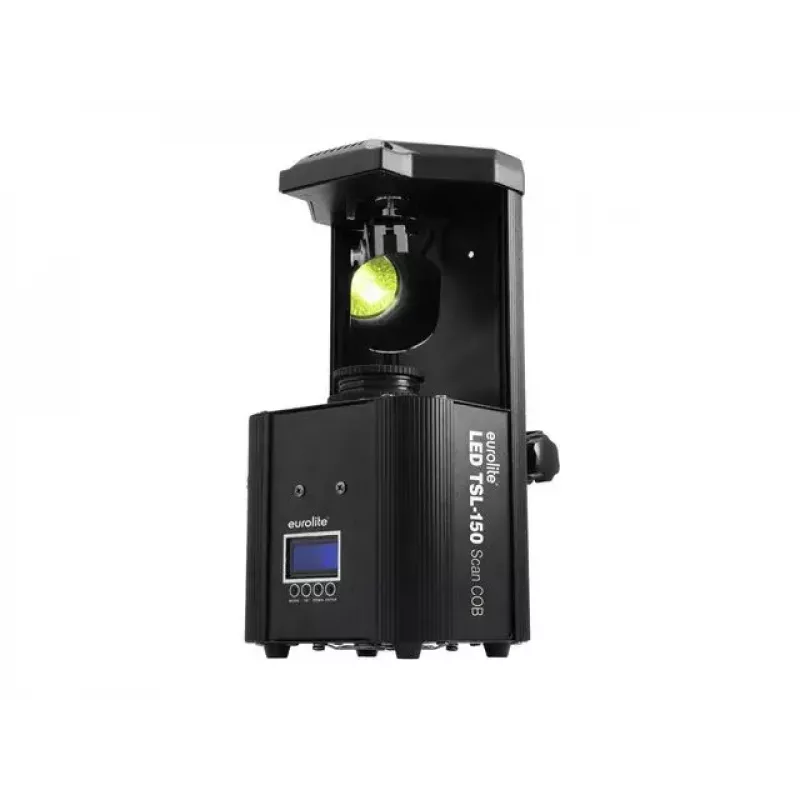

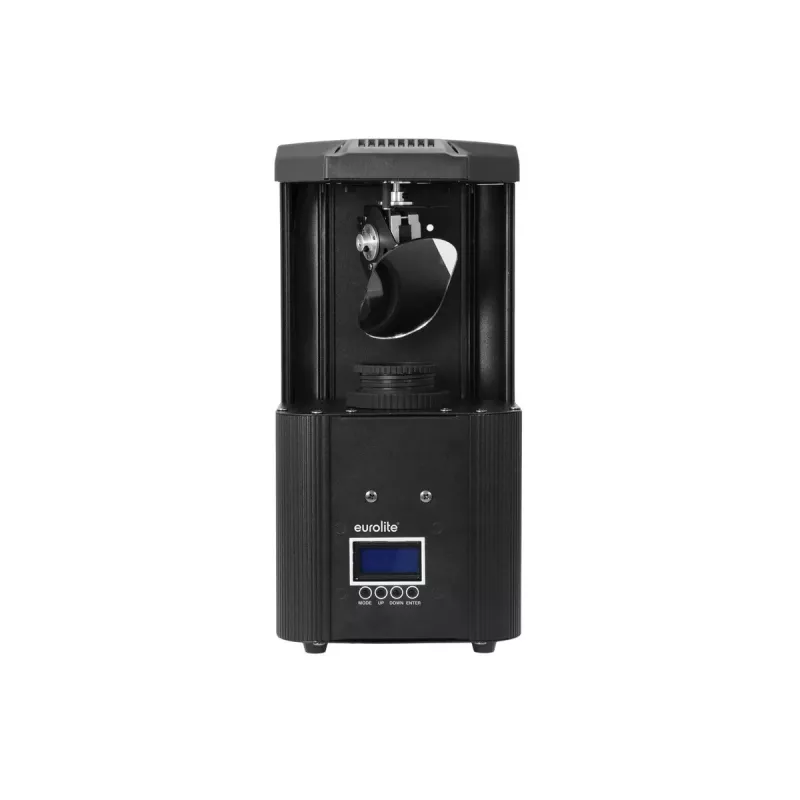

The Eurolite TSL-150 Black LED 30W DMX is a compact disco stroboscope for indoor events and small installations. It uses a single 30 W COB LED and combines color- and gobo-wheel effects with strobe, rainbow and electronic dimming. The unit supports DMX control, stand-alone operation with Master/Slave and sound-to-light via a built-in microphone. Power is supplied via an IEC mains connector and the internal switch-mode supply accepts 100–240 V AC.

Advantages

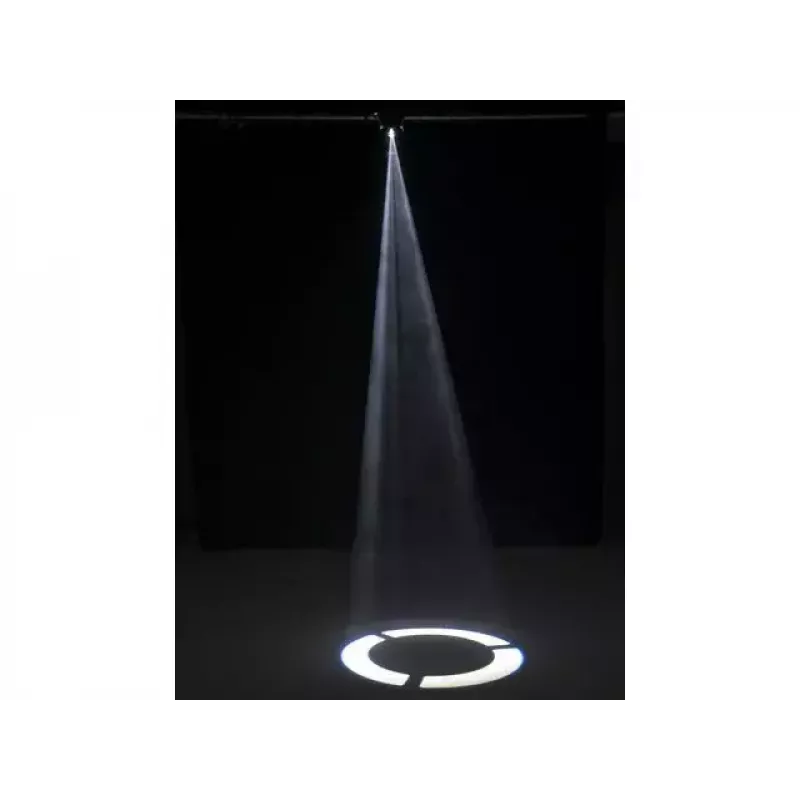

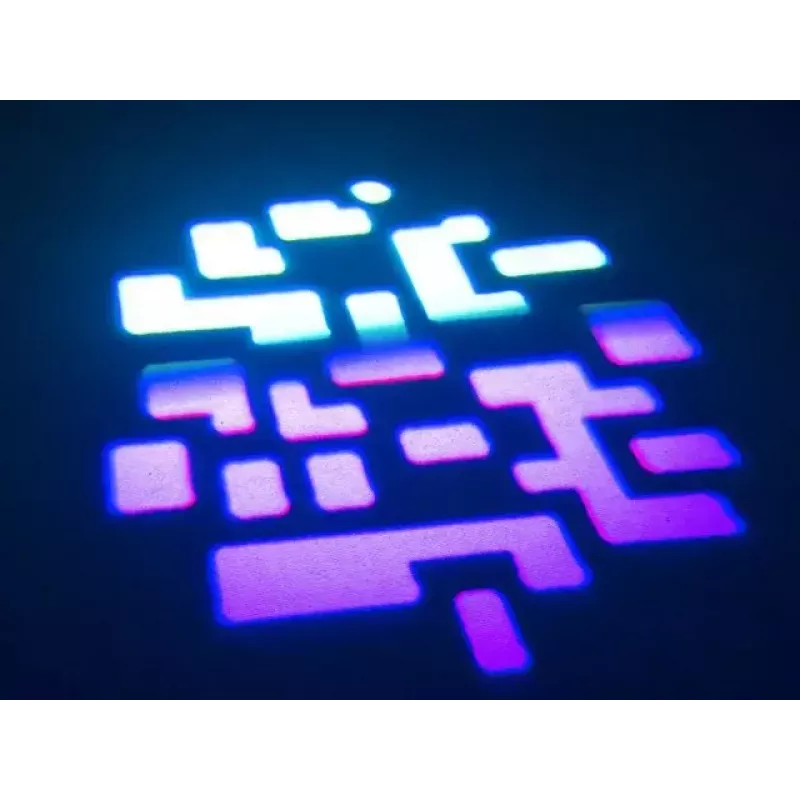

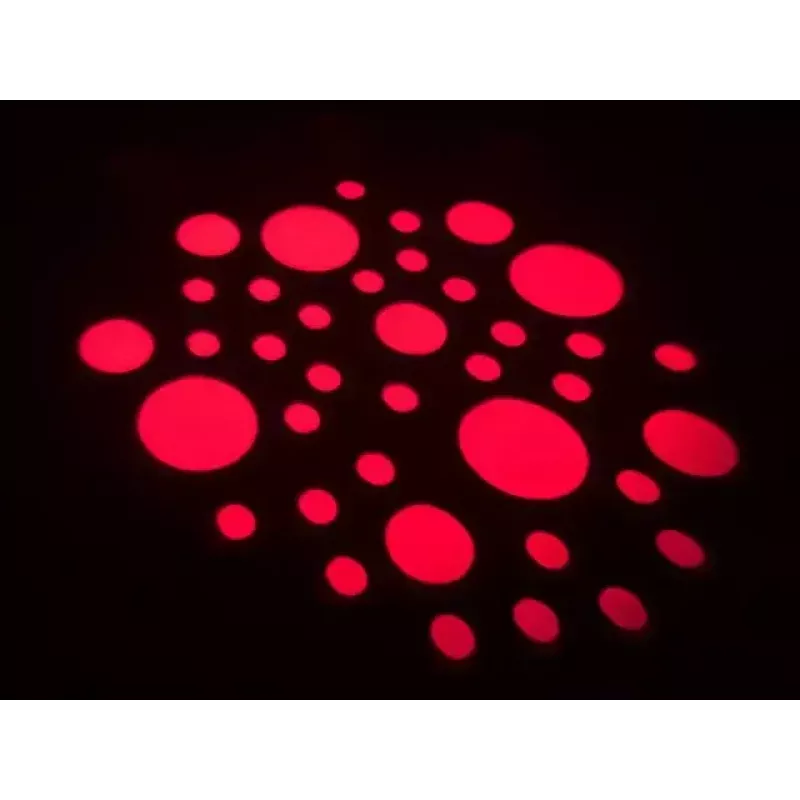

This portable light offers a 30 W COB LED source for bright, efficient output; a 12° light beam for focused projection; both a 7-color dichroic color wheel plus white and a 7-gobo wheel with open position; and adjustable effects such as gobo-shake, rainbow speed, strobe (2–18 flashes/sec) and electronic dimmer. It can be controlled via any standard DMX controller, runs stand-alone with internal programs, and responds to sound using a built-in microphone with adjustable sensitivity and fuzzy-sound logic to keep programs running during quiet passages.

Suitable for

Key specifications

How to use

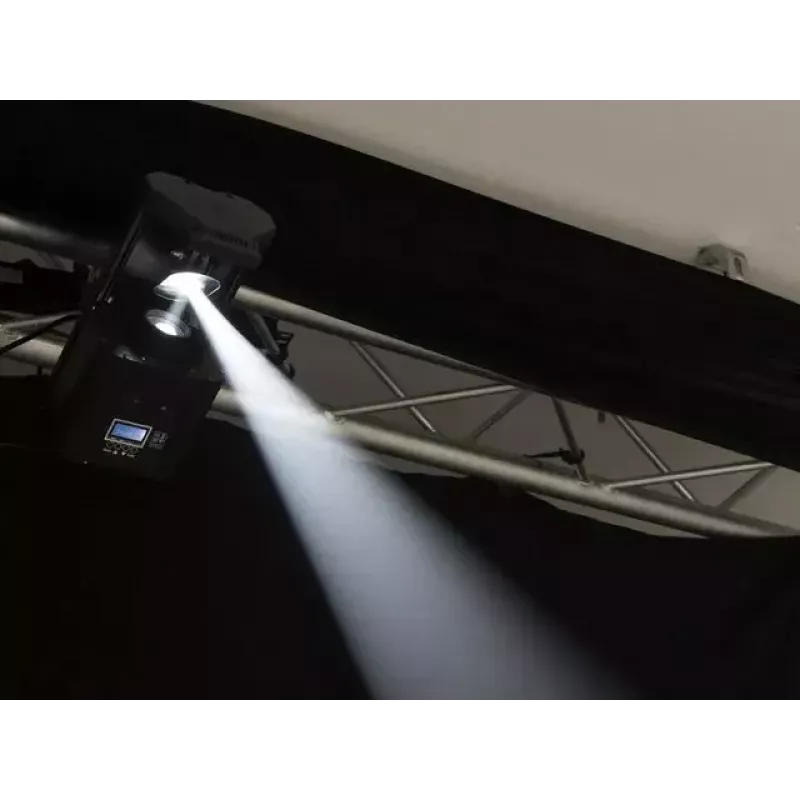

Mount the unit securely and connect the supplied power cord to the IEC mains input. Select the desired control mode using the control board: choose DMX for external control and set the DMX start address with the blue LCD and buttons, or select stand-alone/Master-Slave for internal program operation. For music-reactive operation enable sound-to-light; adjust microphone sensitivity on the control board to match ambient volume. Use manual focus to sharpen gobos and color projections. When using DMX, connect the fixture to your DMX chain using standard DMX cabling and configure the controller according to the 9-channel mapping.

Recommendations

Use in dry indoor environments only. Allow ventilation space for the fan-cooled housing and avoid covering air vents. For reliable sound activation, place the unit where the built-in microphone picks up music clearly but is not directly next to loud speakers. Use a compatible DMX controller and standard DMX cables for precise effect control.
