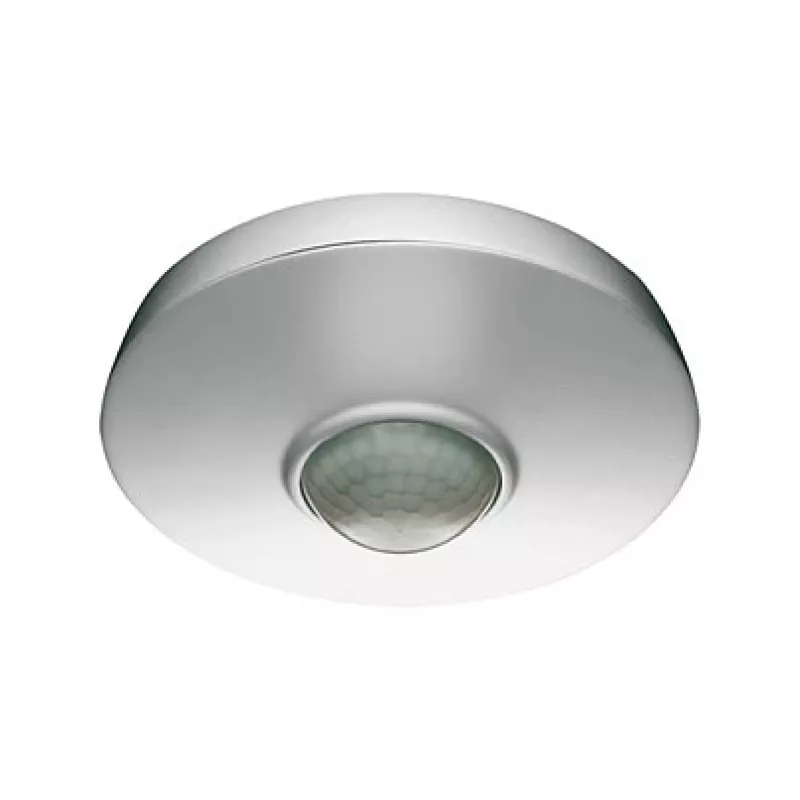

ESYLUX PD 360/8 Slave Detetor de presença infravermelho passivo, montagem no teto, 8 m alcance, Branco

The ESYLUX PD 360/8 Slave is a passive infrared (PIR) presence detector designed to extend the detection area of a master presence detector in a wired 2-wire bus system. Ideal for indoor ceiling flush-mounting, it provides a 360° detection angle with an 8 m diameter range at 2.5 m mounting height. The detector is powered via the master device and features a sleek white housing (RAL 9010) made of UV-stabilised polycarbonate.

Advantages

Seamlessly expands the coverage of an existing master presence detector; easy flush-mount installation; reliable PIR technology for energy-efficient lighting and HVAC control; durable, UV-stabilised material ensures long service life.

Suitable for

• Office spaces requiring extended presence detection
• Conference rooms, corridors, and open-plan areas
• Indoor commercial and institutional buildings

Key specifications

• Product Type: Presence Detector (Slave Unit)
• Sensor Technology: Passive Infrared (PIR)
• Detection Angle: 360°
• Detection Range (Diameter): 8 m (at 2.5 m mounting height)
• Mounting Type: Ceiling flush-mounted
• Optimal Mounting Height: 2.5 m
• Recommended Mounting Height: 2.0 - 3.0 m
• Color: White (RAL 9010)
• Protection Class: IP20
• Application Area: Indoor
• Connectivity: Wired (2-wire bus system to master)
• Operating Temperature: 0 °C to +50 °C
• Material: UV-stabilised polycarbonate
• Installation Depth: Approx. 55 mm
• Functions: Extends detection area of a master presence detector
• Power Supply: Via master device
• Housing Diameter: 82 mm
• Visible Height: 18 mm

Recommendations

For optimal performance, mount at 2.5 m height and pair with a compatible ESYLUX master presence detector. Ensure the installation location is free from obstructions that may block the PIR field of view.
