ESYLUX PD-C 180i KNX ECO Sensor infravermelho passivo (PIR) - Com fio - 16 m - Teto - Interior - Aço inoxidável - Branco

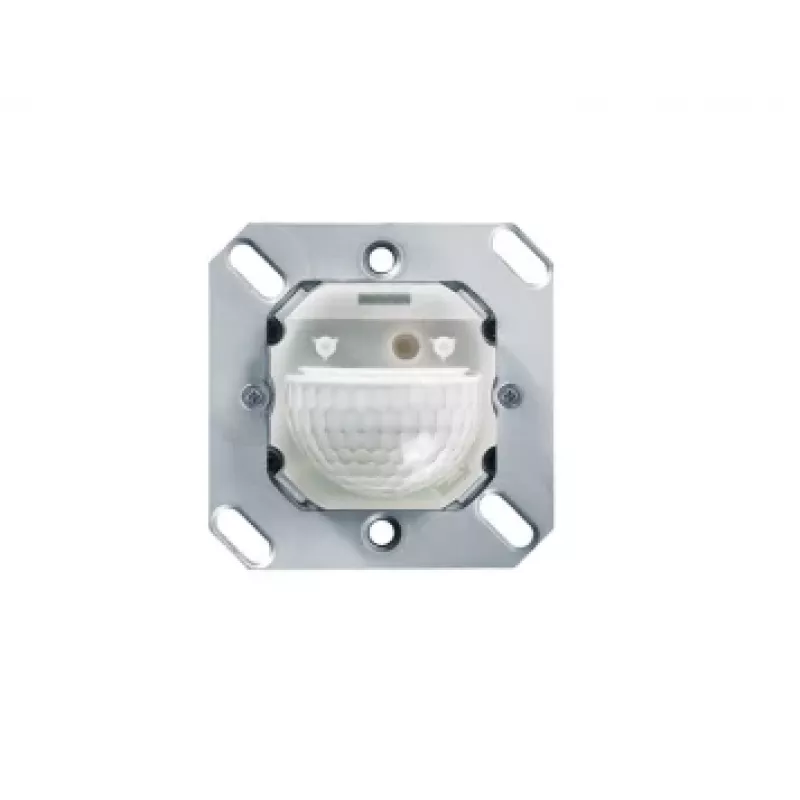

The ESYLUX PD-C 180i KNX ECO is a high-performance passive infrared (PIR) sensor designed for intelligent lighting and HVAC control in KNX building automation systems. With a 360° detection angle and a 16 m diameter range, it reliably detects movement in indoor spaces. The sensor is flush-mounted on the ceiling and features a sleek white housing made of UV-stabilised polycarbonate with a stainless steel ring. It supports constant light control, scene recall, and self-learning switch-off delay, making it ideal for energy-efficient and comfortable building management.

Advantages

Energy-saving presence and light control; seamless integration into KNX systems; adjustable detection zones with 1120 switching segments; self-learning delay optimises comfort and efficiency; robust UV-stabilised housing for long-lasting performance.

Suitable for

• Office buildings
• Conference rooms
• Classrooms
• Corridors and stairwells
• Open-plan areas

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (diameter): 16 m
• Recommended mounting height: 2 m - 5 m
• Optimal mounting height: 3 m
• Bus system: KNX
• Installation type: Ceiling flush mount
• Protection class: IP20
• Operating voltage: KNX bus voltage
• Colour: Traffic White (RAL 9010)
• Housing material: UV-stabilised polycarbonate
• Operating temperature: 0 °C to +50 °C
• Functions: Light control, HVAC control, constant light control, scene recall
• Detection zones: 1120 switching segments
• Light measurement range: 5 - 2000 Lux
• Switch-off delay: Self-learning, adjustable
• Application: Indoor

Recommendations

For optimal performance, mount at 3 m height and ensure clear line of sight to the monitored area. Pair with KNX actuators for full lighting and HVAC automation.
