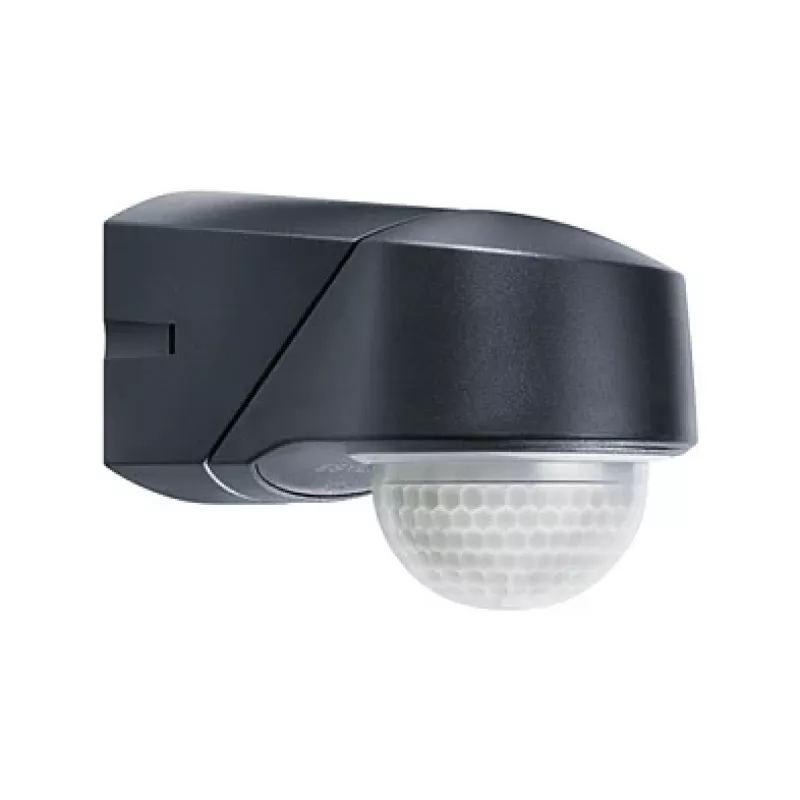

ESYLUX RC 230i detetor de movimento passivo de infravermelhos para teto/parede 20m, preto, IP54, 2500 Lux, 2,5m

The ESYLUX RC 230i is a high-quality passive infrared (PIR) motion detector designed for ceiling or wall mounting. With a 360° detection angle and a tangential range of 20 meters, it is ideal for large indoor areas such as offices, warehouses, and corridors. The device features an adjustable light sensor (5-2500 Lux) and time delay (10 s - 60 min), making it suitable for automatic lighting control. Its robust IP54 rating and UV-stabilised polycarbonate housing ensure durability in demanding environments.

Advantages

Reliable 360° detection with a 20m diameter range; adjustable light threshold and time delay for energy savings; easy installation on ceiling or wall; IP54 protection for use in dusty or humid areas; low standby power consumption (<0.5 W).

Suitable for

• Office buildings and meeting rooms
• Warehouses and storage areas
• Corridors and stairwells
• Industrial facilities
• Public buildings

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (tangential): 20 m diameter
• Detection range (radial): 8 m diameter
• Mounting type: Ceiling / Wall
• Optimal mounting height: 2.5 m
• Adjustable mounting height: 2.0 - 3.0 m
• Operating voltage: 230 V AC, 50 Hz
• Switching capacity (resistive): 2300 W
• Switching capacity (inductive): 1150 VA (cos φ = 0.5)
• Light sensor range: 5 - 2500 Lux
• Time delay adjustment: 10 s - 60 min
• Protection rating: IP54
• Colour: Black
• Operating temperature: -25 to +50 °C
• Stand-by power consumption: < 0.5 W
• Material: UV-stabilised polycarbonate
• Installation type: Flush-mounted (surface-mounted with accessory)
• Control output: 1x NO contact (relay)

Recommendations

For optimal performance, mount the detector at the recommended height of 2.5 m and ensure the detection area is free of obstructions. Use the adjustable light sensor and time delay to customise operation for energy efficiency.
