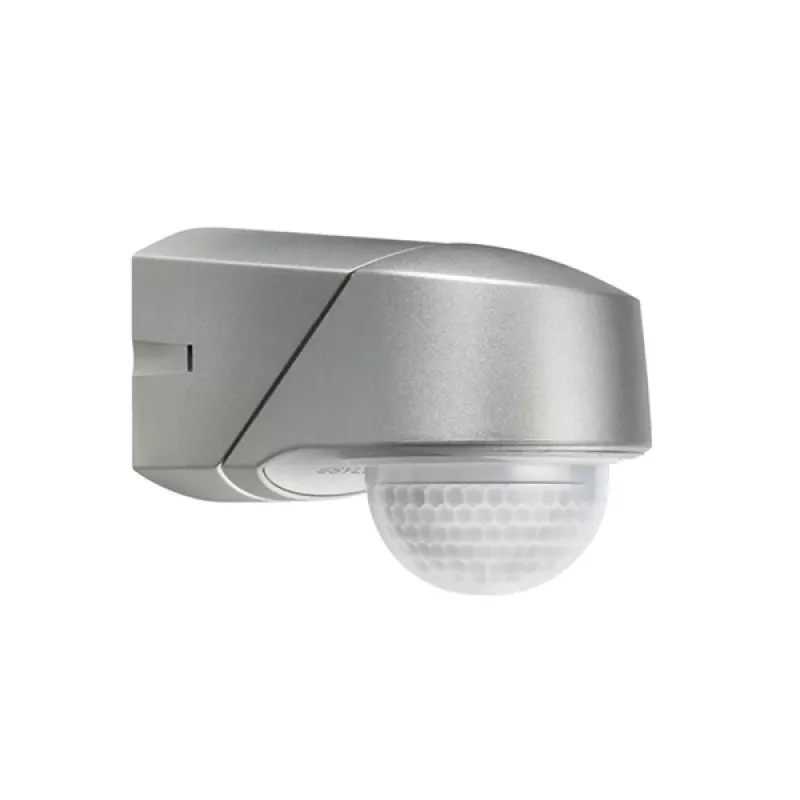

ESYLUX RC 230i detetor de presença 20 m teto/parede aço inoxidável IP54 2500 Lux 2,5 m

The ESYLUX RC 230i is a high-quality passive infrared (PIR) presence detector designed for ceiling or wall mounting. With a detection range of 20 meters diameter at 2.5 m mounting height and a 360° detection angle, it provides reliable presence detection for large areas. The stainless steel housing and IP54 rating make it suitable for demanding environments. The integrated light sensor adjusts switching thresholds from 10 to 2500 lux, and the time delay can be set from 10 seconds to 60 minutes. Ideal for commercial and industrial applications.

Advantages

Reliable PIR detection with 20 m range; robust stainless steel design; IP54 protection against dust and water splashes; adjustable light sensor and time delay; easy ceiling or wall mounting.

Suitable for

• Office spaces
• Conference rooms
• Corridors and stairwells
• Industrial halls
• Warehouses

Key specifications

• Product Type: Presence Detector
• Detection Technology: Passive Infrared (PIR)
• Mounting Type: Ceiling, Wall
• Material: Stainless Steel
• Detection Angle: 360°
• Detection Range (Diameter): 20 m (at 2.5 m mounting height)
• Recommended Mounting Height: 2.0 - 3.0 m
• Ingress Protection (IP) Rating: IP54
• Light Sensor Range: 10 - 2500 Lux
• Power Supply: 230 V AC, 50 Hz
• Switching Output Channels: 1 (Light)
• Max. Switching Power (Resistive Load): 2300 W
• Max. Switching Power (Inductive Load): 1150 VA (cos φ = 0.5)
• Time Delay (Light): 10 s - 60 min
• Operating Temperature: -25 °C to +50 °C
• Color: Stainless Steel

Recommendations

For optimal performance, mount at recommended height and avoid obstructions in the detection field. Suitable for use with ESYLUX lighting control systems.
