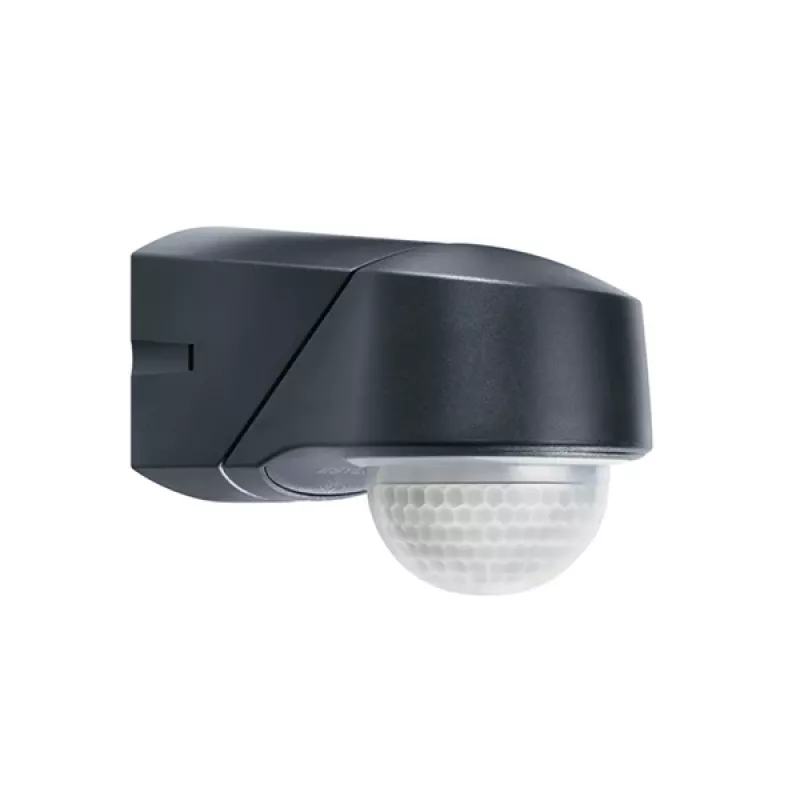

ESYLUX RC 280i Detetor de movimento infravermelho passivo (PIR) de teto/parede 20m alcance 360° Preto IP54 2500 Lux 2,5m

The ESYLUX RC 280i is a high-performance passive infrared (PIR) motion detector designed for professional indoor and outdoor lighting control. With a 360° detection angle and a 20-meter diameter range, it reliably detects movement in large areas. The detector is suitable for ceiling or wall mounting and features an IP54 rating for protection against dust and water splashes. Its adjustable twilight setting (2–2500 Lux) and time delay (10 seconds to 60 minutes) provide flexible automation for energy-efficient lighting.

Advantages

Energy-saving automatic lighting control with precise detection. Robust UV-stabilised polycarbonate housing ensures long-lasting durability. Simple surface mounting and easy configuration make it ideal for both new installations and retrofits.

Suitable for

• Warehouses and logistics areas
• Office corridors and stairwells
• Parking garages and underground car parks
• Industrial halls and workshops
• Outdoor covered areas (IP54)

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (diameter): 20 m
• Recommended mounting height: 2.5 m
• Light sensitivity: 2–2500 Lux
• Time delay: 10 s – 60 min
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity (resistive): 2300 W
• Max. switching capacity (inductive): 1150 VA (cos φ = 0.5)
• Max. current: 10 A
• Protection class: II
• IP rating: IP54
• Mounting type: Surface-mounted (ceiling/wall)
• Colour: Black
• Operating temperature: -25 °C to +50 °C
• Power consumption: approx. 0.5 W
• Material: UV-stabilised polycarbonate
• Number of channels: 1 (Light)

Recommendations

For optimal performance, mount the detector at the recommended height of 2.5 m and ensure the detection area is free from obstructions. Adjust the twilight and time settings according to the specific application requirements. This detector is not compatible with dimmable loads unless used with a suitable dimmer.
