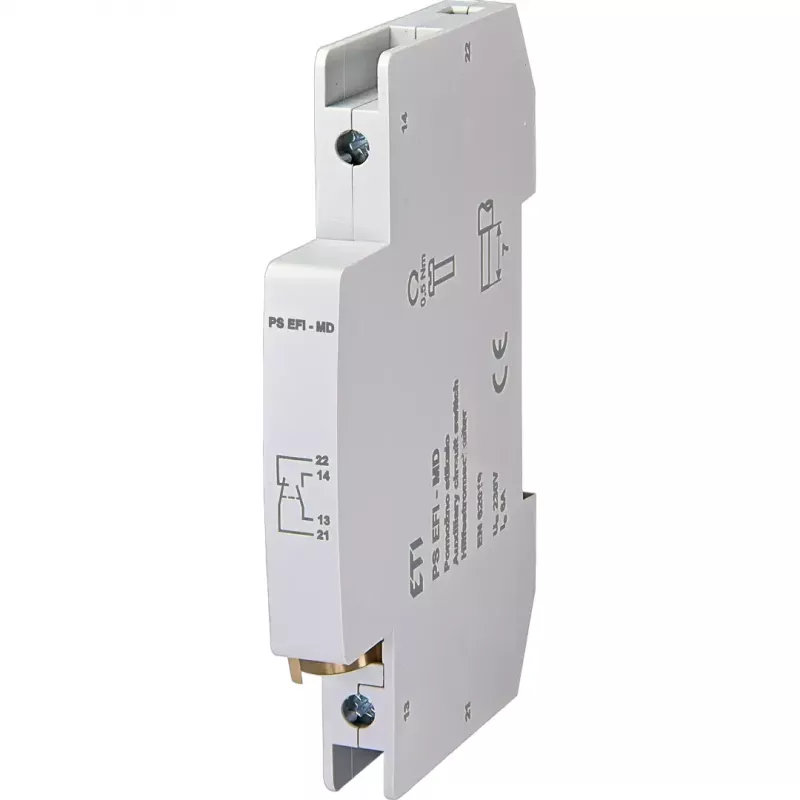

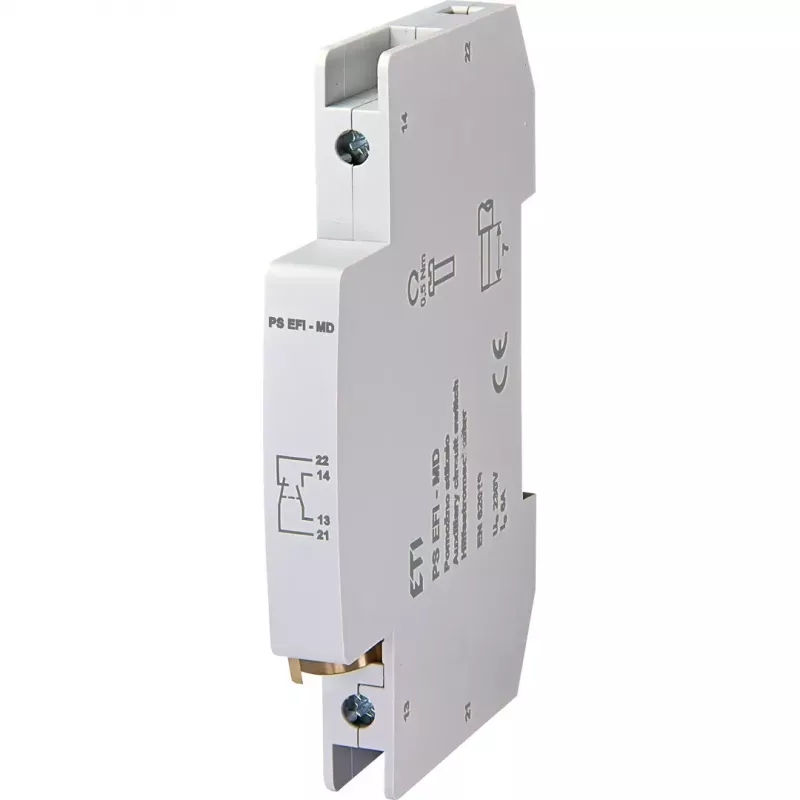

ETI 002069001 Interruptor auxiliar PS EFI-MD, 1 NO + 1 NC, 230 V AC, 6 A, 50/60 Hz

In modular electrical installations, monitoring the switching state of a main protective device is often necessary for control and signaling. The ETI 002069001 auxiliary switch provides a reliable way to obtain a galvanically isolated status signal from compatible PS EFI series devices, enabling integration into automation and building management systems.

Who is it for

This auxiliary switch is intended for electricians, panel builders, and maintenance technicians who need to remotely indicate the position of a circuit breaker or residual current device. It suits industrial automation, electrical distribution, and circuit protection applications where status feedback is required.

Main features

• Contact configuration: 1 normally open (NO) and 1 normally closed (NC) contact for flexible signaling.
• Rated operational voltage 230 V AC and current 6 A, suitable for control circuits.
• Operates at 50/60 Hz, covering common power frequencies.
• Designed as an accessory for ETI PS EFI series modular devices, ensuring mechanical compatibility.
• Compact form factor for DIN rail mounting alongside the main device.

Specifications

• Product type: Auxiliary switch
• Series: PS EFI-MD
• Contact configuration: 1 NO + 1 NC
• Rated operational voltage (Ue): 230 V AC
• Rated operational current (Ie): 6 A
• Frequency: 50/60 Hz
• Manufacturer part number: 002069001
• EAN: 3838895177388

Tips

Verify that the auxiliary switch matches the specific model of your PS EFI device before installation. The switch is intended for signaling and control circuits only; do not use it to switch power loads directly.
