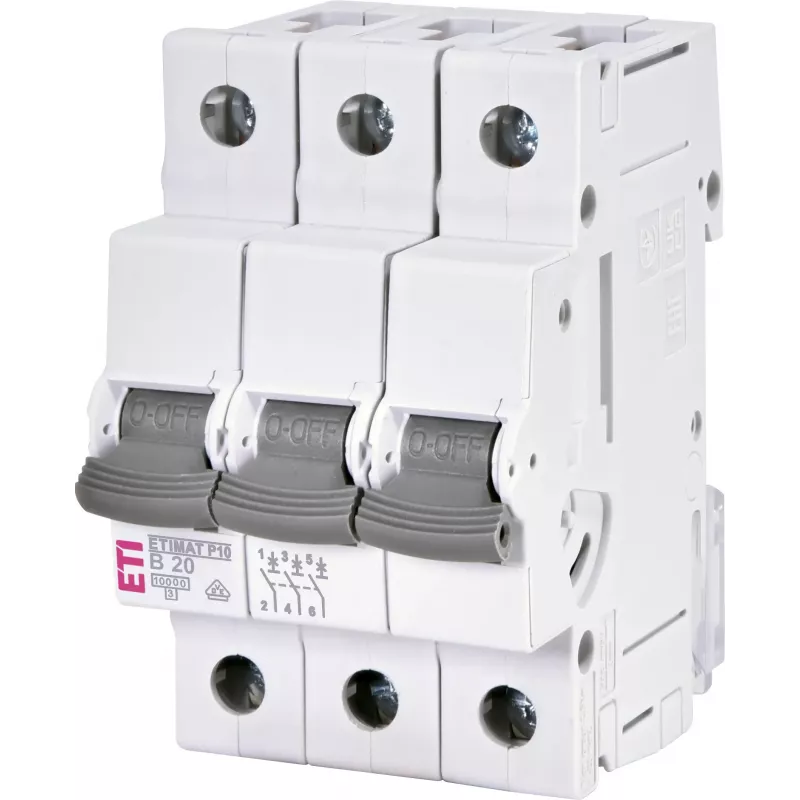

ETI ETIMAT P10 Disjuntor unipolar 3 polos B20 20A 10kA 415V 50/60Hz

The ETI ETIMAT P10 3-pole miniature circuit breaker delivers a 10 kA short-circuit breaking capacity, ensuring reliable protection for your electrical installations.

Overview

Part of the ETIMAT P10 series, this MCB is designed for DIN rail mounting and provides overcurrent and short-circuit protection in three-phase circuits. It features a B tripping characteristic, suitable for general applications with moderate inrush currents.

What stands out

• 10 kA breaking capacity for robust short-circuit protection
• 3-pole design for three-phase systems
• B characteristic for standard loads
• Wide operating temperature range from -25°C to +55°C
• High mechanical endurance of 20,000 cycles

Technical details

• Rated current: 20 A
• Rated voltage: 415 V AC
• Frequency: 50/60 Hz
• Tripping characteristic: B
• Energy limiting class: 3
• Degree of protection: IP20
• Terminal capacity: 1-25 mm² (solid), 1-16 mm² (flexible)
• Electrical endurance: 10,000 cycles
• Standard: EN 60898-1

Our verdict

A dependable MCB for protecting three-phase circuits, offering high breaking capacity and long service life.
