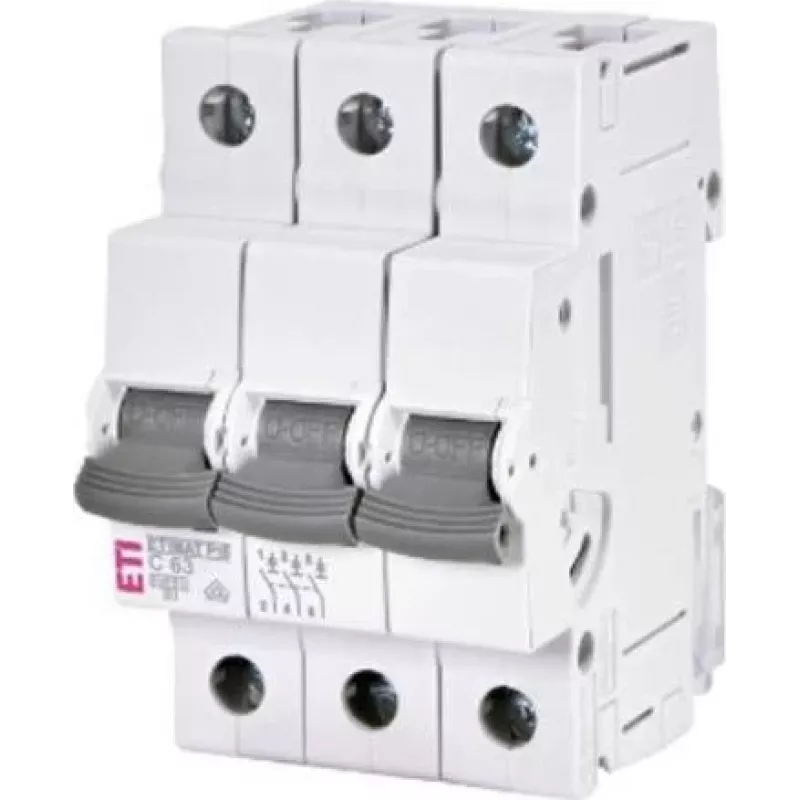

ETI ETIMAT P10 disjuntor 3 polos 63A curva C 001901336

Miniature circuit breaker for reliable overcurrent and short-circuit protection in three-phase circuits, rated at 63 A with C tripping characteristic and 10 kA breaking capacity.

Advantages

Provides effective protection for cables and equipment against overload and short-circuit currents. The C characteristic is suitable for general electrical installations with moderate inrush currents. Screw terminals accommodate conductors up to 25 mm² solid or 16 mm² flexible, ensuring secure connections.

Suitable for

• Three-phase distribution boards
• Protection of circuits with moderate inrush currents
• Industrial and commercial electrical installations

Key specifications

• Number of poles: 3
• Rated current: 63 A
• Tripping characteristic: C
• Rated voltage: 415 V AC
• Rated frequency: 50/60 Hz
• Short-circuit breaking capacity (Icn): 10 kA
• Mounting: DIN rail
• Terminal type: screw
• Max. conductor cross-section: 25 mm² solid, 16 mm² flexible
• Energy limiting class: 3
• Degree of protection: IP20 (terminals), IP40 (front)
• Standards: IEC/EN 60898-1
• Ambient operating temperature: -25°C to +55°C
• Overvoltage category: III
• Pollution degree: 2
• Electrical life: 10,000 cycles
• Mechanical life: 20,000 cycles

Recommendations

Ideal for protecting three-phase circuits in distribution boards where a C tripping characteristic is required. Ensure proper sizing according to load and short-circuit current.
