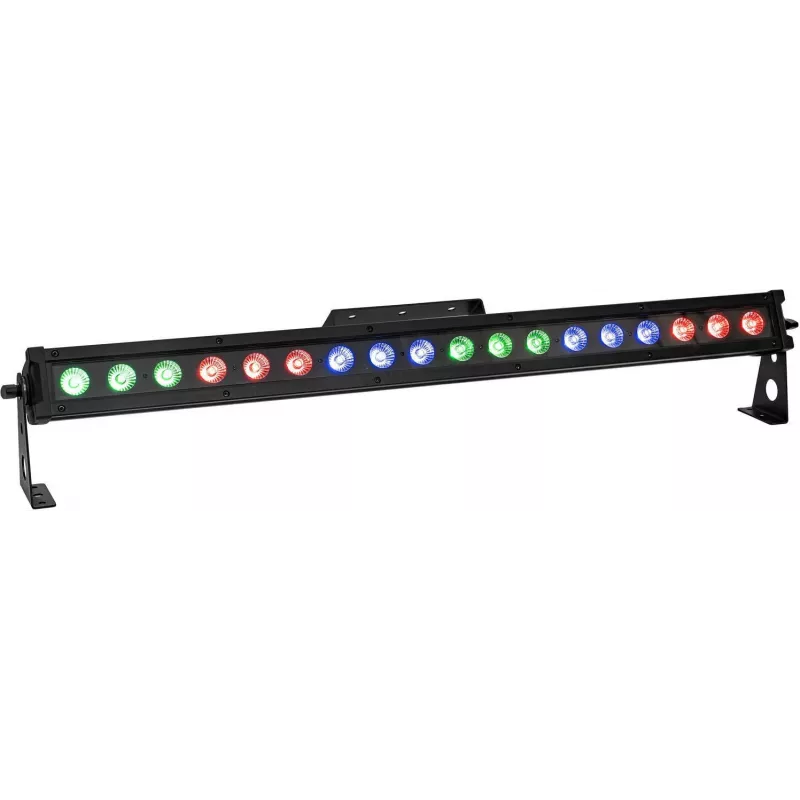

EUROLITE LED IP T-PIX 18 QCL Bar IP65 RGBW Pixel Bar 106 cm 18x8W

Professional IP65-rated LED pixel bar with 18 individually controllable 8W RGBW quad-color LEDs, delivering vibrant color mixing and pixel mapping effects for outdoor and indoor events. The 106 cm aluminum housing with convection cooling ensures silent operation, while the 18° beam angle produces a tight, punchy wash. With DMX512, standalone, master/slave, and sound-to-light modes, this bar adapts to any show scenario.

Advantages

IP65 protection allows use in rain, dust, and harsh environments. The 4-in-1 QCL LEDs provide rich red, green, blue, and white output with smooth color mixing. Individual pixel control enables dynamic chase effects and video-like animations. Fanless convection cooling means zero noise, perfect for theaters, houses of worship, and broadcast. PowerCON IP and 3/5-pin XLR connectors ensure reliable daisy-chaining.

Suitable for

• Outdoor festivals and concerts
• Architectural facade lighting
• Stage and studio pixel mapping
• Nightclubs and event productions
• Rental companies needing rugged fixtures

Key specifications

• 18 x 8W RGBW quad-color LEDs (4-in-1)
• 18 individually controllable pixels
• Beam angle: 18°
• DMX channels: 4, 6, 8, 9, 12, 18, 72, 74
• IP65 rated for outdoor use
• Aluminum housing with convection cooling
• Power consumption: 120 W
• PowerCON IP input/output
• 3-pin and 5-pin XLR DMX connectors
• LCD display for easy configuration
• Electronic dimmer 0-100% and strobe 1-20 Hz
• Operating voltage: 100-240 V AC, 50/60 Hz

Recommendations

Pair multiple bars end-to-end for seamless pixel effects across large stages. Use a DMX controller with pixel mapping software to unlock full creative potential. For permanent outdoor installations, ensure proper power and data cable management to maintain IP65 integrity.
