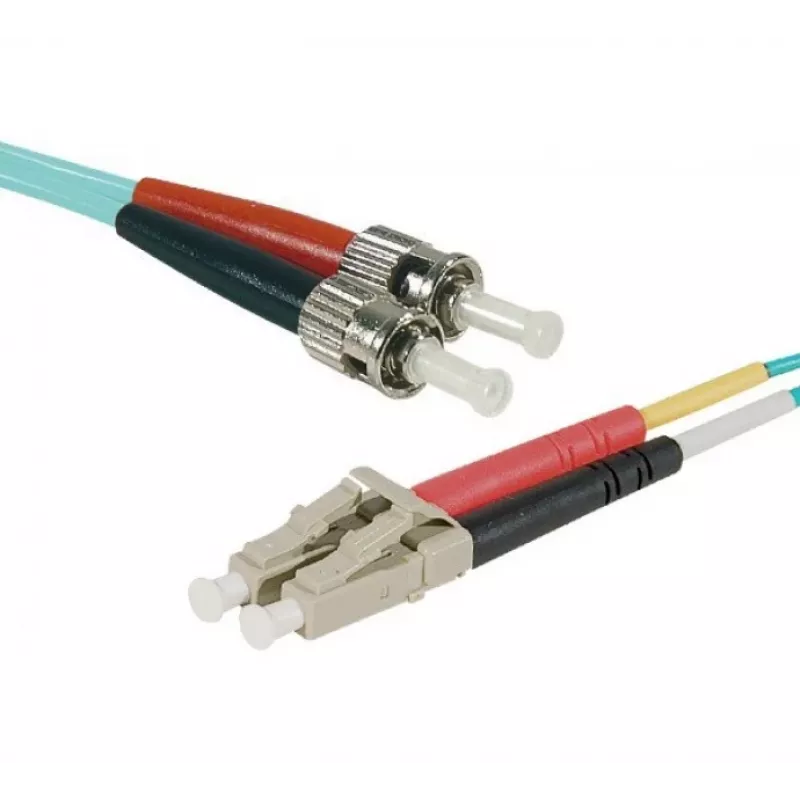

EXERTIS CONNECT cabo de patch de fibra ótica Eco, 50/125 µm, fibra OM3, ficha LC duplex/ficha ST duplex, água, 5,0 m UPC polimento UPC (392734)

High-speed data centers and enterprise networks need reliable fiber optic connections that maintain signal integrity over distance. This EXERTIS CONNECT patch cable solves that problem with OM3 multimode fiber, LC to ST duplex connectors, and UPC polish for low insertion loss and high return loss.

Who is it for

Network engineers and IT professionals deploying 10 Gigabit Ethernet over short to medium distances in data centers, campus backbones, or high-density patching environments. The aqua jacket and LSZH material make it suitable for areas with strict fire safety regulations.

Main features

• OM3 multimode fiber with 50/125 µm core/cladding diameter supports 10GBASE-SR up to 300 meters at 850 nm.
• LC Duplex to ST Duplex connectors with UPC polish ensure low insertion loss (< 0.3 dB) and high return loss (> 50 dB).
• LSZH (Low Smoke Zero Halogen) jacket in aqua color for easy identification and reduced toxic emissions in case of fire.
• 5.0 meter length provides flexibility in rack patching and equipment interconnection.
• Duplex construction with two fibers enables simultaneous bidirectional communication.

Specifications

• Cable type: Fiber Optic Patch Cable
• Fiber type: Multimode OM3
• Core/Cladding diameter: 50/125 µm
• Connector 1: LC Duplex
• Connector 2: ST Duplex
• Connector polish: UPC
• Cable length: 5.0 m
• Jacket material: LSZH
• Jacket color: Aqua
• Number of fibers: 2
• Maximum data rate: 10 Gigabit Ethernet (10GBASE-SR)
• Insertion loss: < 0.3 dB
• Return loss: > 50 dB
• Bandwidth @ 850nm: 1500 MHz-km
• Bandwidth @ 1300nm: 500 MHz-km
• Attenuation @ 850nm: 2.5 dB/km
• Attenuation @ 1300nm: 0.8 dB/km
• Operating temperature: -20°C to 70°C

Tips

When connecting LC to ST interfaces, ensure both connectors are clean and free of dust to maintain optimal performance. Use a fiber optic cleaning tool before each mating.
