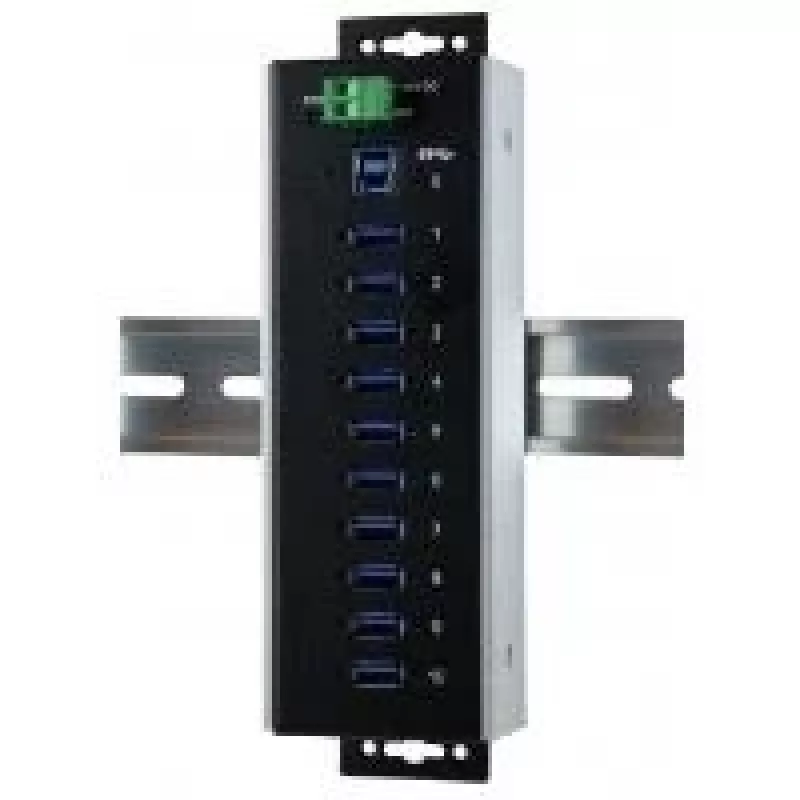

EXSYS EX-1110HMVS-WT Hub USB 3.2 Gen 1 industrial de 10 portas, montável em calha DIN, metal, 5Gbps

Industrial USB 3.2 Gen 1 hub with 10 downstream USB-A ports and a single USB-B upstream connection, delivering up to 5Gbps data transfer. Built for harsh environments, it supports DIN-rail or wall mounting and operates from a wide 9-24V DC input via terminal block, with metal housing and per-port surge protection.

Advantages

Ten SuperSpeed USB ports allow simultaneous connection of multiple devices in industrial settings. The rugged metal enclosure, wide operating temperature range, and 15kV ESD protection ensure reliable operation in demanding conditions. Plug-and-play and hot-swappable design simplifies installation and maintenance.

Suitable for

• Industrial automation and control cabinets
• Manufacturing and machine vision systems
• Kiosks, digital signage, and embedded applications
• Rugged computing environments requiring multiple USB peripherals

Key specifications

• USB 3.2 Gen 1 (USB 3.0) with 5Gbps data rate
• 10 downstream USB-A ports, 1 upstream USB-B port
• DIN-rail and wall-mount options
• DC 9-24V terminal block power input
• Metal housing, ESD and surge protection
• Operating temperature: -40°C to 85°C

Recommendations

For industrial USB expansion where reliability and mounting flexibility are critical, this hub provides a robust solution with extensive port count and wide power input range.
