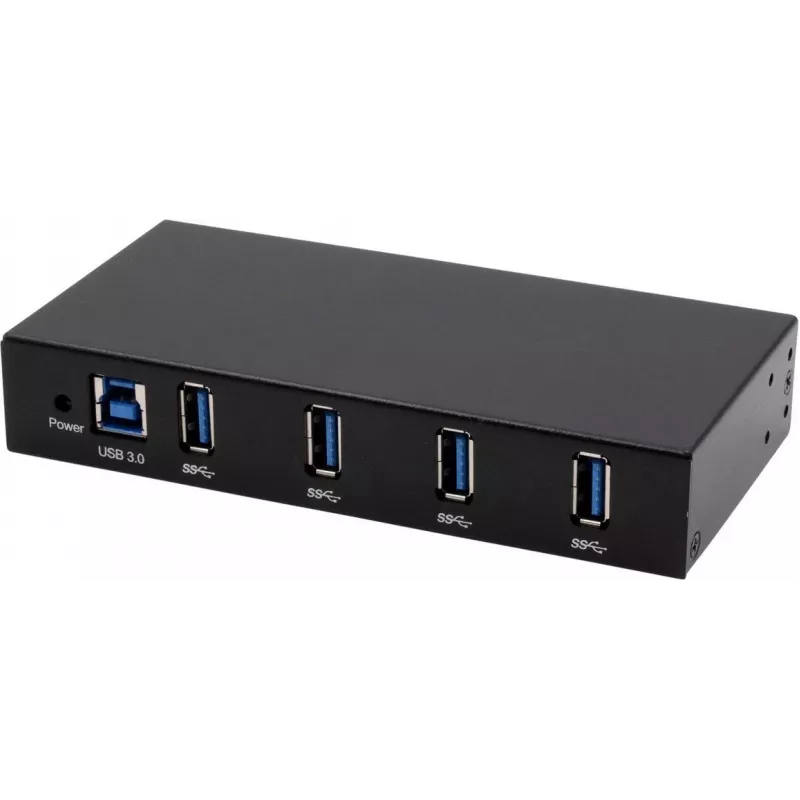

EXSYS EX-11234HMS-2 hub USB 3.2 Gen 1 de 4 portas, montagem em calha DIN e parede, chipset VIA VL817_Q7S

The EXSYS EX-11234HMS-2 is a robust 4-port USB 3.2 Gen 1 hub designed for industrial and commercial environments. Featuring the VIA VL817_Q7S chipset, it delivers reliable SuperSpeed data transfer up to 5 Gbps. The metal housing and versatile mounting options (Din-Rail and wall mount) make it ideal for control cabinets, workstations, and server rooms. With wide input voltage range (7-24V DC) and comprehensive protection features, this hub ensures stable operation in demanding conditions.

Advantages

Industrial-grade durability with metal housing and wide temperature range (-40°C to 85°C). Per-port overcurrent and surge protection (600W) safeguard connected devices. Plug & Play compatibility with Windows, macOS, and Linux eliminates driver hassles. LED indicators for power and port status provide at-a-glance monitoring.

Suitable for

• Industrial automation and control systems
• Embedded computing and IoT gateways
• Point-of-sale and digital signage installations
• Laboratory and test equipment connectivity

Key specifications

• USB Standard: USB 3.2 Gen 1 (USB 3.0 / USB 3.1 Gen 1)
• Downstream Ports: 4 x USB Type-A
• Upstream Port: 1 x USB Type-B
• Data Transfer Rate: Up to 5 Gbps
• Chipset: VIA VL817_Q7S
• Mounting: Din-Rail and Wall Mount (kit included)
• Power Input: 7-24V DC via DC jack (power supply not included)
• Housing Material: Metal
• Operating Temperature: -40°C to 85°C
• ESD Protection: 15KV Air, 8KV Contact
• Surge Protection: 600W per port
• Overcurrent Protection: Yes, per port
• LED Indicators: Power, Port Status
• Certifications: CE, FCC

Recommendations

For optimal performance, use a regulated power supply within 7-24V DC. The hub is compatible with USB 2.0 and USB 1.1 devices at reduced speeds. Ideal for expanding USB connectivity in industrial settings where reliability and protection are critical.
