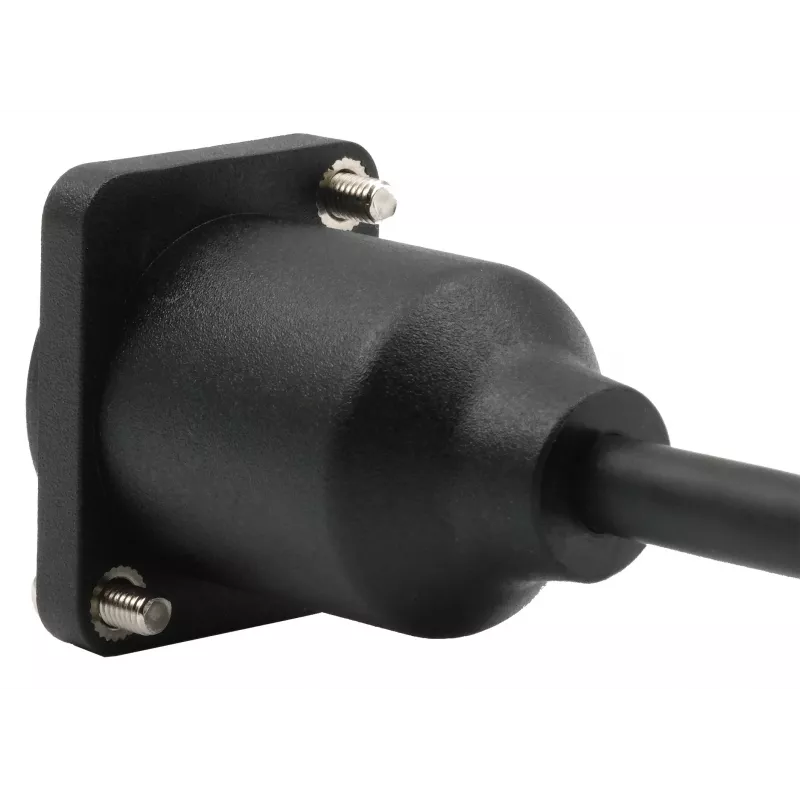

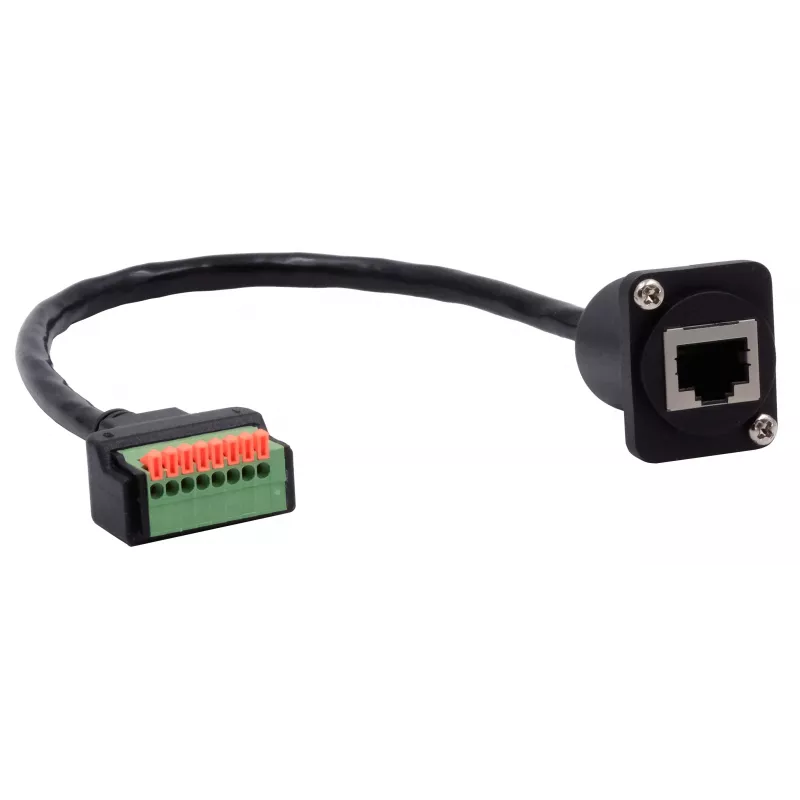

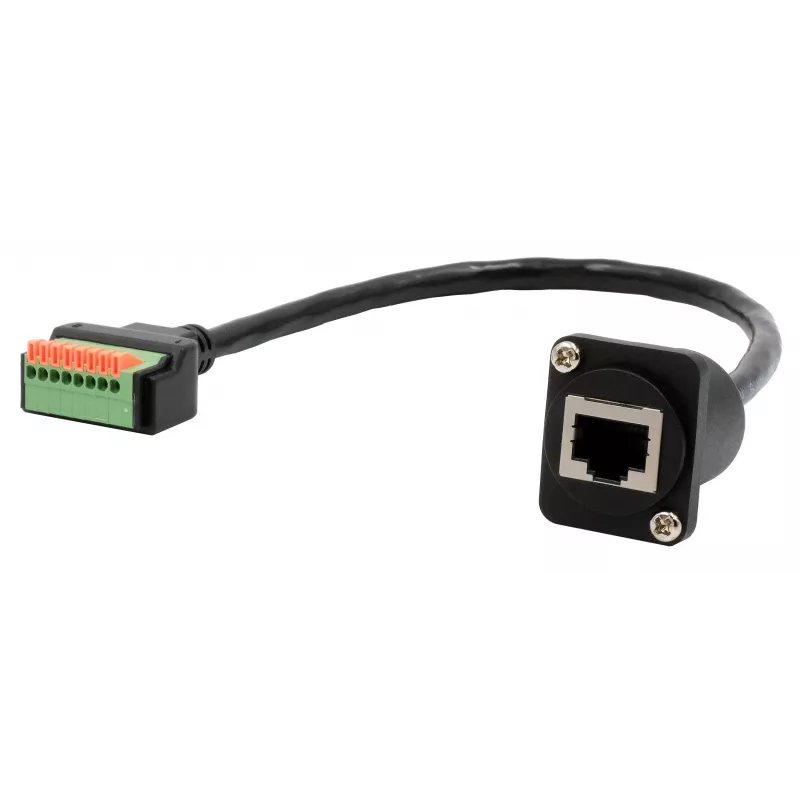

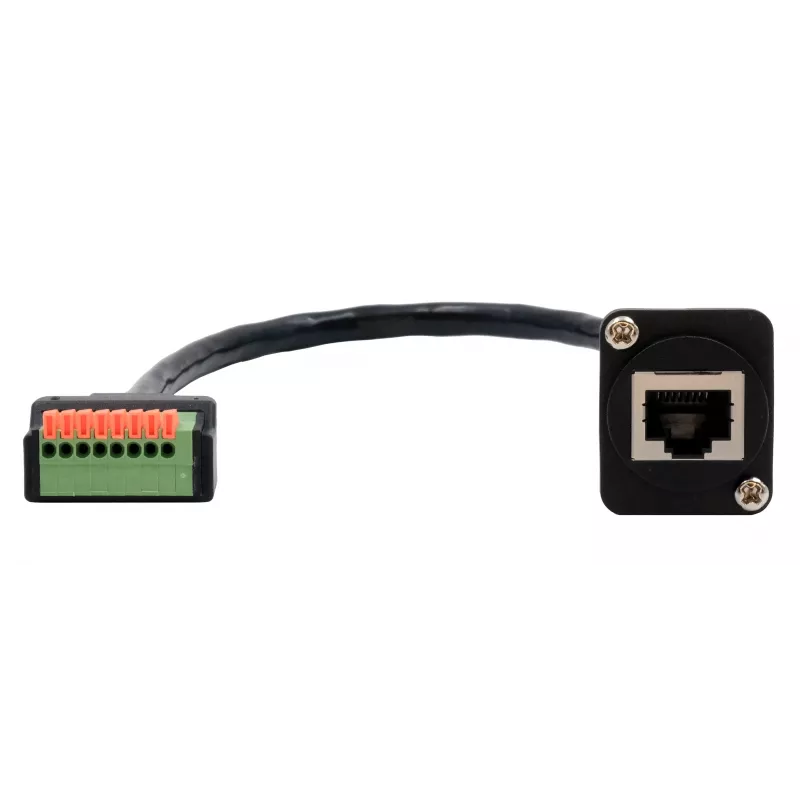

EXSYS EX-49161 Adaptador de conector fêmea RJ45 tipo D para bloco de terminais de 8 pinos com botão, CAT.5e, 20 cm

This D-Type panel mount adapter converts an RJ45 female port to an 8-pin screw terminal block, enabling custom wiring for industrial Ethernet and prototyping. A built-in push button provides convenient circuit control, while the CAT.5e unshielded cable supports Gigabit Ethernet at up to 1000 Mbps over a 20 cm length.

Advantages

Allows flexible connection of custom cables to standard RJ45 infrastructure without soldering. The screw terminals accept solid or stranded wires, and the D-Type metal frame ensures secure panel mounting in control cabinets or equipment enclosures.

Suitable for

• Industrial Ethernet installations requiring field-terminated connections
• Prototyping and testing of custom network wiring
• Panel-mounted network interfaces in machinery or kiosks

Key specifications

• Connector A: RJ45 female
• Connector B: 8-pin screw terminal block
• Mounting: D-Type panel mount
• Cable standard: CAT.5e, unshielded (UTP)
• Length: 20 cm
• Max data rate: 1000 Mbps
• Integrated push button

Recommendations

Ideal for system integrators and engineers who need a reliable, reconfigurable Ethernet connection point in industrial or custom installations.
