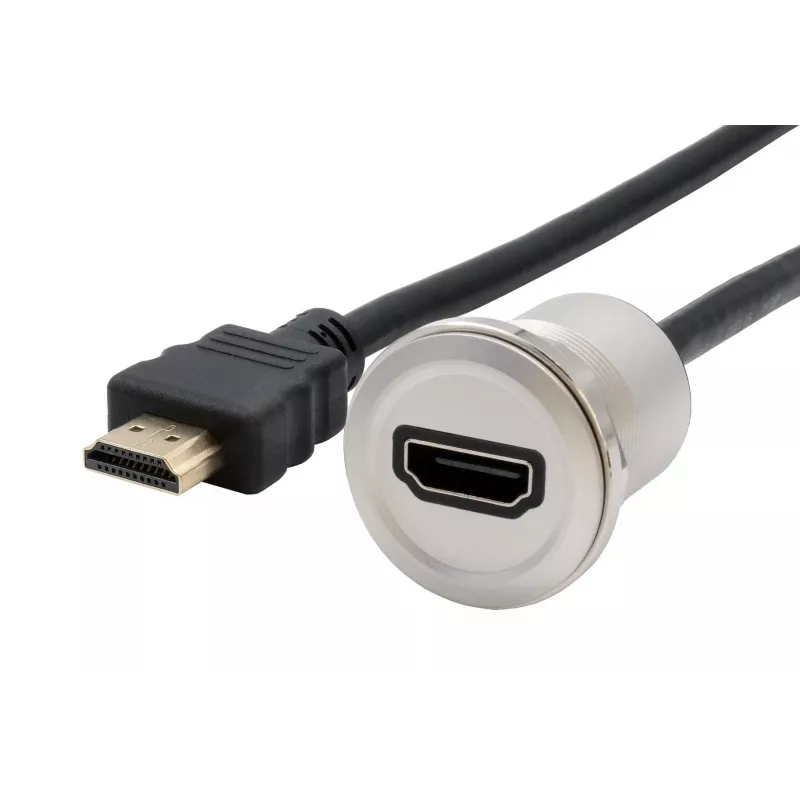

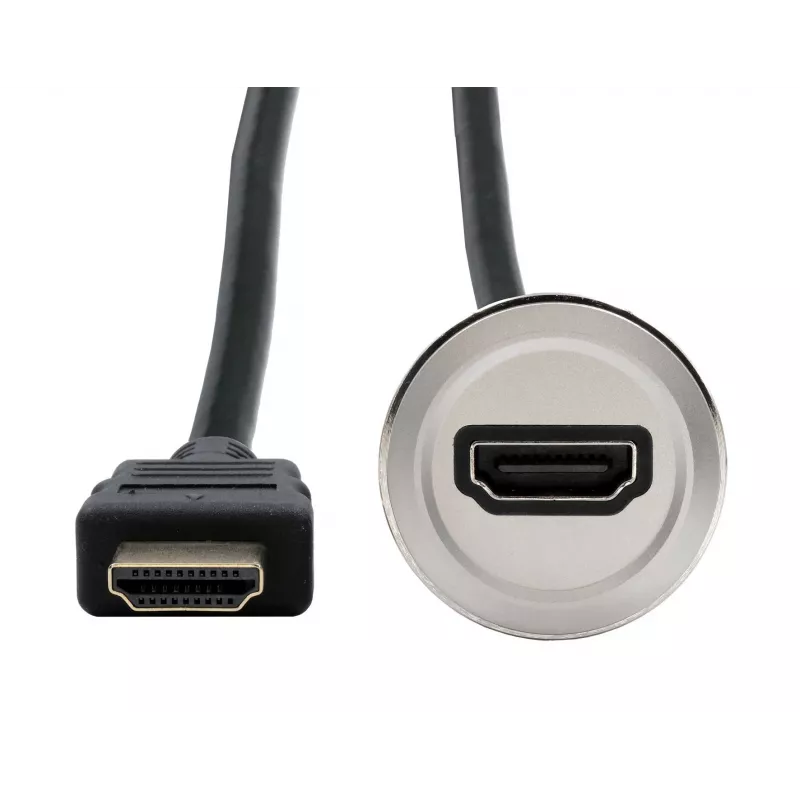

EXSYS EX-49180 Adaptador HDMI de montagem em painel metálico, conector fêmea para conector macho, 30 cm

Industrial and professional AV installations often require a clean, secure HDMI connection on a panel or enclosure. The EXSYS EX-49180 solves this by providing a robust metal panel-mount HDMI adapter with a 30 cm cable, converting a panel-mounted female HDMI port to a male connector for internal routing.

Who is it for

This adapter is ideal for system integrators, AV technicians, and industrial users who need to mount an HDMI interface on a control panel, machine housing, or custom enclosure. It suits professional environments where durability and reliable signal integrity are critical.

Main features

• Panel-mount HDMI Type A female connector with screw holes for secure installation.
• 30 cm cable terminated with a standard HDMI Type A male connector.
• Metal housing for durability and EMI shielding.
• Supports HDMI 2.0 specifications, including 4K resolution at 60 Hz and 18 Gbps bandwidth.
• Gold-plated connectors ensure optimal signal transfer and corrosion resistance.
• Triple shielding reduces interference for stable high-speed data transmission.

Specifications

• Connector 1: HDMI Type A female (panel mount)
• Connector 2: HDMI Type A male
• Cable length: 30 cm
• Housing material: Metal
• HDMI standard: 2.0
• Maximum resolution: 4K (3840x2160) @ 60 Hz
• Maximum data rate: 18 Gbps
• Connector plating: Gold
• Cable shielding: Triple shielded
• Colour: Silver / Grey

Tips

Ensure the panel cutout matches the mounting dimensions of the female connector. For best performance, pair with high-quality HDMI cables that also support HDMI 2.0 or higher.
