EXSYS EX-6009POE Injetor Gigabit PoE++ 90W, entrada de bloco de terminais 48-57V DC, IEEE 802.3bt Type 4, montagem em calha DIN/parede

This Gigabit PoE++ injector delivers up to 90W of power over Ethernet, compliant with IEEE 802.3bt Type 4, making it ideal for high-power devices such as PTZ cameras, LED lighting, and digital signage. It accepts a 48-57V DC input via a 2-pin terminal block and provides one Gigabit RJ45 data input and one Gigabit RJ45 PoE output with 4-pair power delivery.

Advantages

Supports the latest PoE++ standard for maximum power delivery. Metal housing with DIN-rail and wall-mount options ensures flexible installation. Wide operating temperature range from -40°C to 75°C suits harsh environments. Built-in over-current, over-voltage, and short-circuit protection enhances reliability.

Suitable for

• Powering high-wattage PoE devices like pan-tilt-zoom cameras and access points
• Industrial networks requiring robust power and data transmission
• Installations with DC power sources between 48V and 57V

Key specifications

• PoE Standard: IEEE 802.3bt Type 4 (PoE++)
• Max Power Output: 90W
• Data Rate: 10/100/1000 Mbps
• Input Voltage: DC 48-57V via terminal block

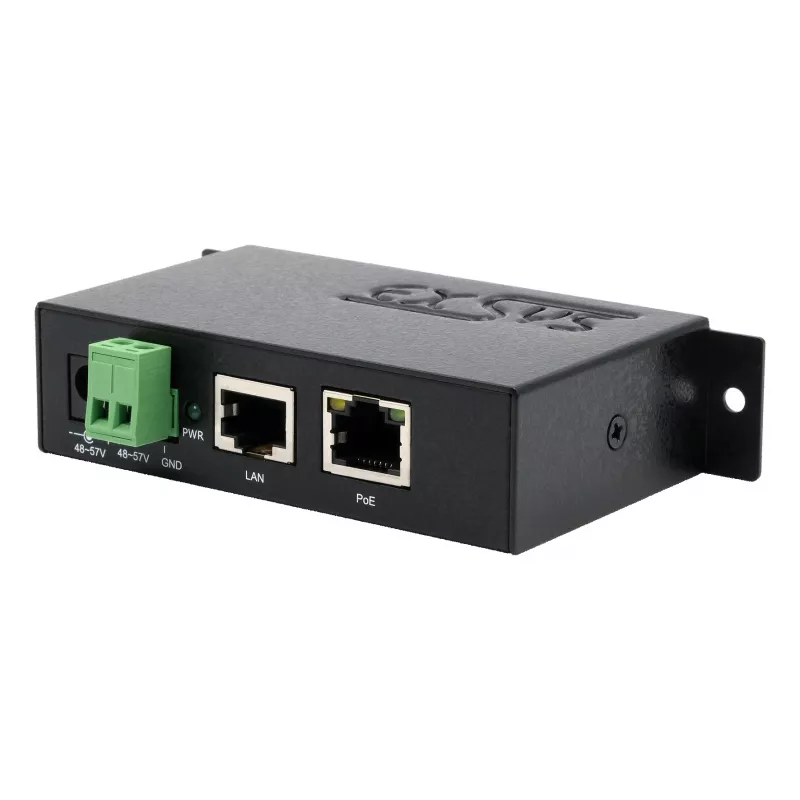

• Ports: 1x RJ45 Data In, 1x RJ45 Data+Power Out
• PoE Pin Assignment: 1/2(+), 3/6(-), 4/5(+), 7/8(-)
• Operating Temperature: -40°C to 75°C
• LED Indicators: Power, PoE Status

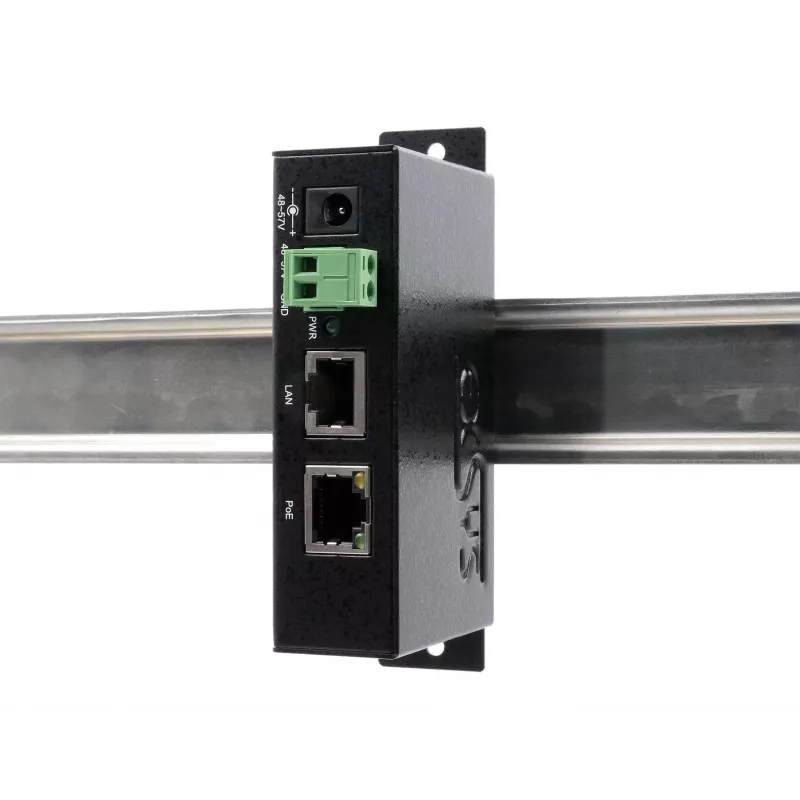

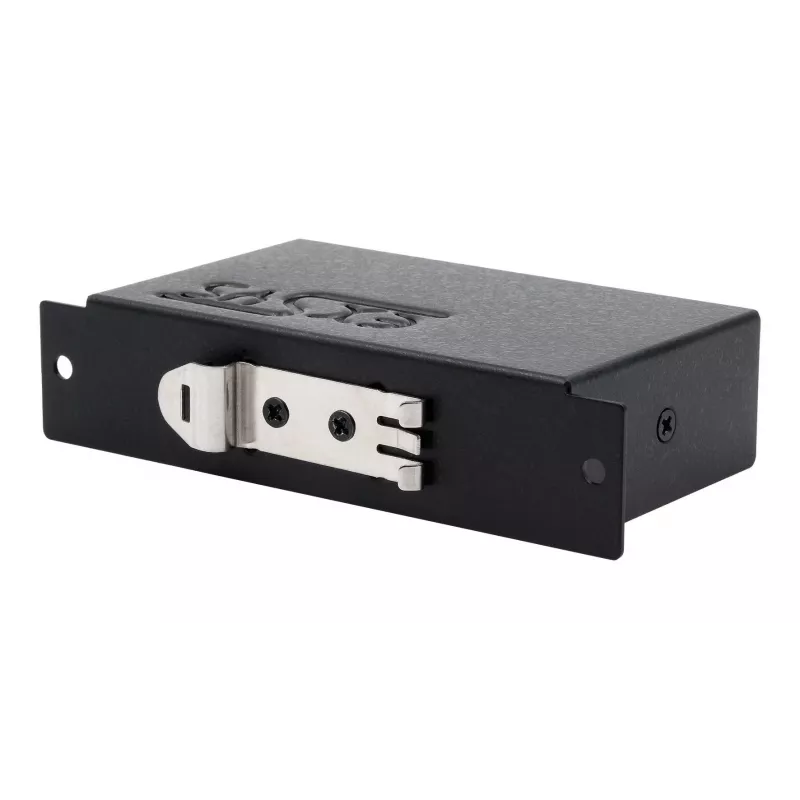

• Mounting: DIN-rail or wall-mount
• Housing: Metal

Recommendations

Verify that your power source can supply 48-57V DC with sufficient current for the connected PoE device. Use shielded Cat5e or better cabling for optimal performance.
