EXSYS EX-6072-3 adaptador de rede - PCIe low-profile - Gigabit Ethernet

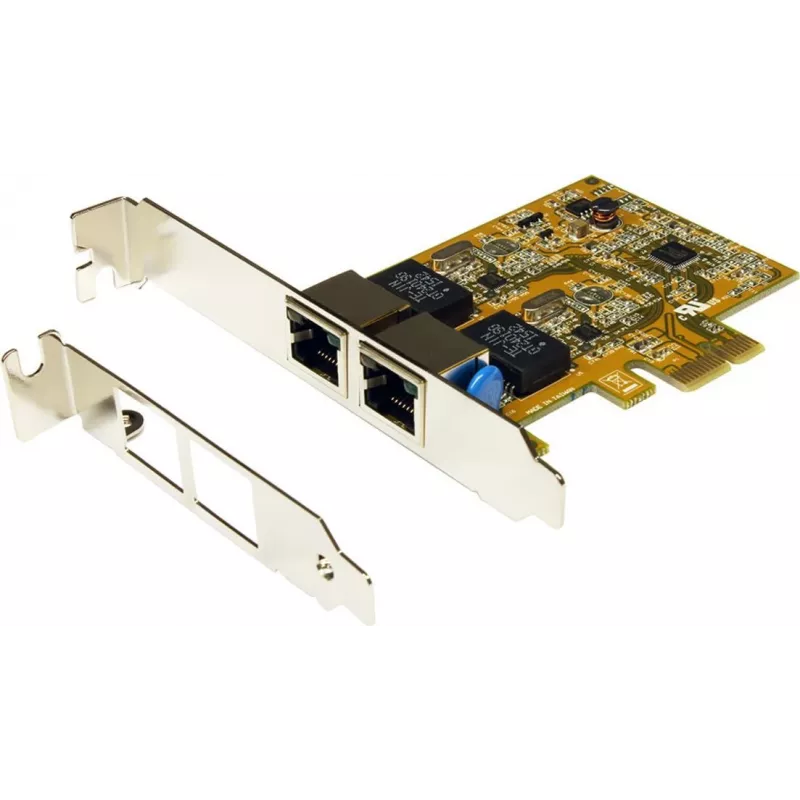

The EXSYS EX-6072-3 is a high-performance network adapter designed for PCI Express x1 slots, providing a reliable Gigabit Ethernet connection for desktop and server systems. Its low-profile form factor makes it ideal for compact and rack-mount cases, while included standard and low-profile brackets ensure compatibility with various chassis sizes.

Advantages

This adapter delivers stable and fast network connectivity with data transfer rates up to 1000 Mbps. It supports advanced features such as Wake-on-LAN, PXE boot, and jumbo frames, enhancing network management and performance. The Realtek RTL8111G chipset ensures broad compatibility and energy efficiency.

Suitable for

• Upgrading or adding Gigabit Ethernet connectivity to desktop PCs and servers
• Systems with limited space requiring low-profile expansion cards
• Network environments needing reliable, cost-effective wired connections

Key specifications

• Host Interface: PCI Express x1 (rev. 1.1)
• Network Ports: 1 x RJ-45
• Data Transfer Rate: 1000 Mbps (Gigabit Ethernet)
• Chipset: Realtek RTL8111G
• Form Factor: Plug-in Card, Low-Profile
• Brackets Included: Standard and Low-Profile
• IEEE Standards: 802.3, 802.3u, 802.3ab, 802.1Q, 802.1P, 802.3x
• Features: Wake-on-LAN, PXE Boot, Jumbo Frame Support (up to 9K bytes), Full Duplex, Auto MDI/MDI-X, TCP/UDP/IP Checksum Offload, Large Send Offload
• LED Indicators: Link/Activity
• Power Consumption: Low
• Operating Systems: Windows 7/8/10/11, Windows Server, Linux, macOS

Recommendations

For optimal performance, use with Cat. 5e or higher UTP/STP cabling. This adapter is an excellent choice for expanding network capabilities in space-constrained systems.
