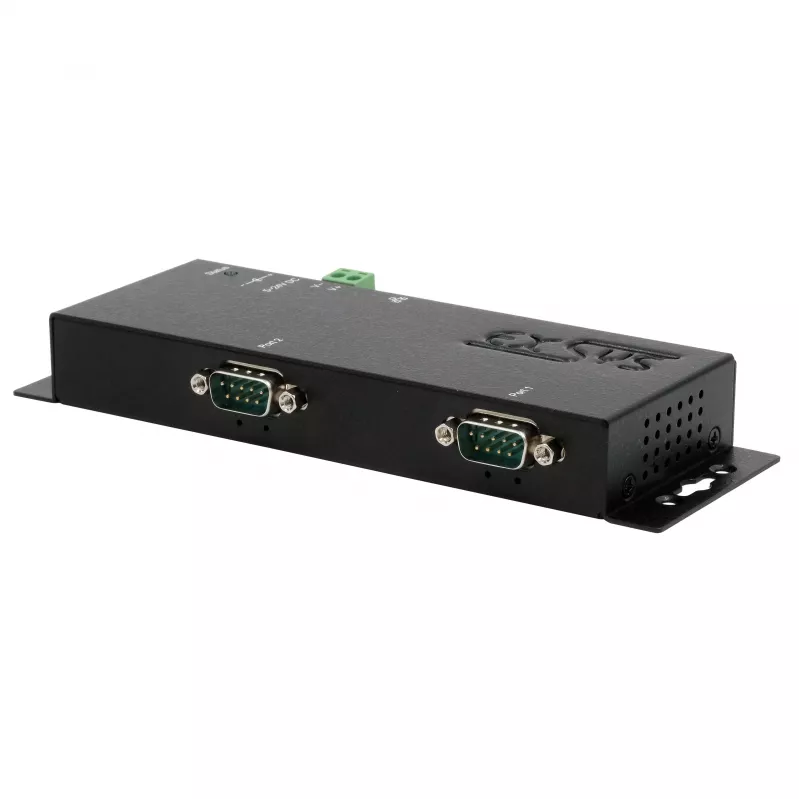

EXSYS EX-6162 Servidor Serial Ethernet para 2x RS-232 com Fonte de Alimentação 12V/3A

Connect legacy RS-232 devices to a modern Ethernet network with the EXSYS EX-6162. This robust serial server is ideal for industrial automation, point-of-sale systems, and remote monitoring applications where two serial devices need to be accessed over a LAN or the internet. The included 12V/3A power supply ensures reliable operation right out of the box.

Key specifications

• Ethernet Interface: 1x RJ45, 10/100 Mbps, Auto-MDI/MDI-X
• Serial Interface: 2x RS-232 (DB9 male), baud rate 300 bps to 230.4 Kbps
• Serial Parameters: Data bits 5/6/7/8, stop bits 1/1.5/2, parity none/even/odd/space/mark
• Flow Control: RTS/CTS, XON/XOFF, none
• Network Protocols: TCP/IP, UDP, DHCP, DNS, HTTP, ICMP, ARP, BOOTP, Telnet, SNMP, SMTP, SNTP, UPnP, DDNS, PPPoE, Modbus TCP/RTU/ASCII
• Operating Modes: Virtual COM, TCP Server, TCP Client, UDP, Pair Connection, Serial Tunnel, Ethernet Modem
• Configuration: Web-based, Windows utility
• Power Input: 12V DC, 3A adapter included
• Housing: Metal
• Operating Temperature: 0°C to 55°C
• ESD Protection: 15KV for serial ports
• Surge Protection: 2KV for Ethernet port
• LED Indicators: Power, Link/Activity, TX/RX per port

Why choose it

The EX-6162 provides a simple and reliable way to bring legacy serial equipment into modern IP-based networks. Its dual RS-232 ports and wide protocol support make it versatile for many industrial and commercial applications. The metal housing and built-in surge protection ensure durability in demanding environments.

Ideal use cases

• Connecting barcode scanners, receipt printers, or scales to a network
• Remote monitoring and control of industrial PLCs or sensors
• Serial device sharing over Ethernet for multiple users
• Integrating Modbus RTU devices with Modbus TCP systems

Good to know

The device supports virtual COM port drivers for Windows, allowing existing serial applications to work without modification. Configuration is straightforward via a web browser or the included Windows utility.
