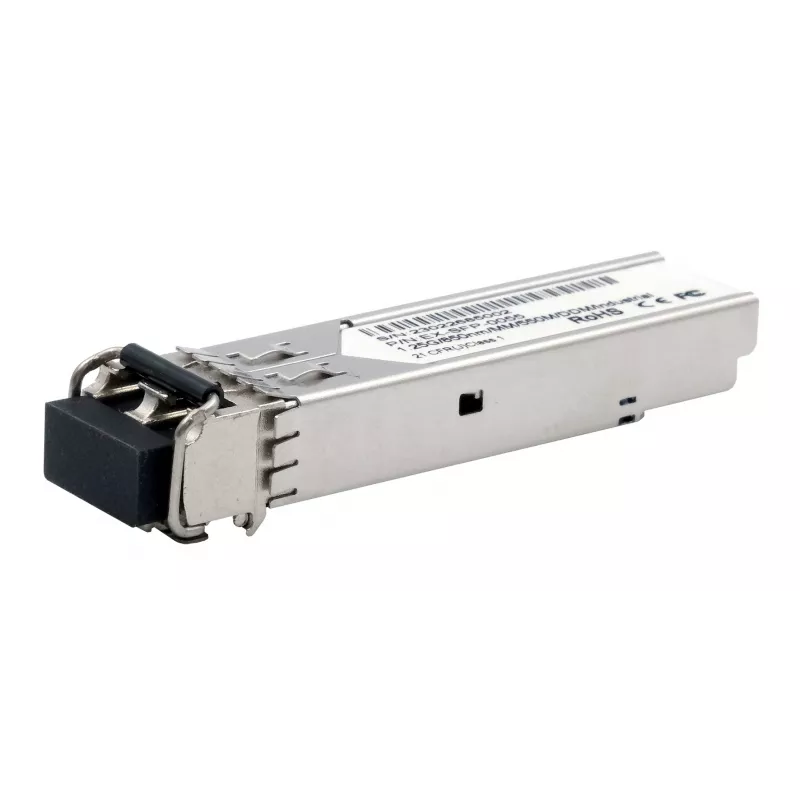

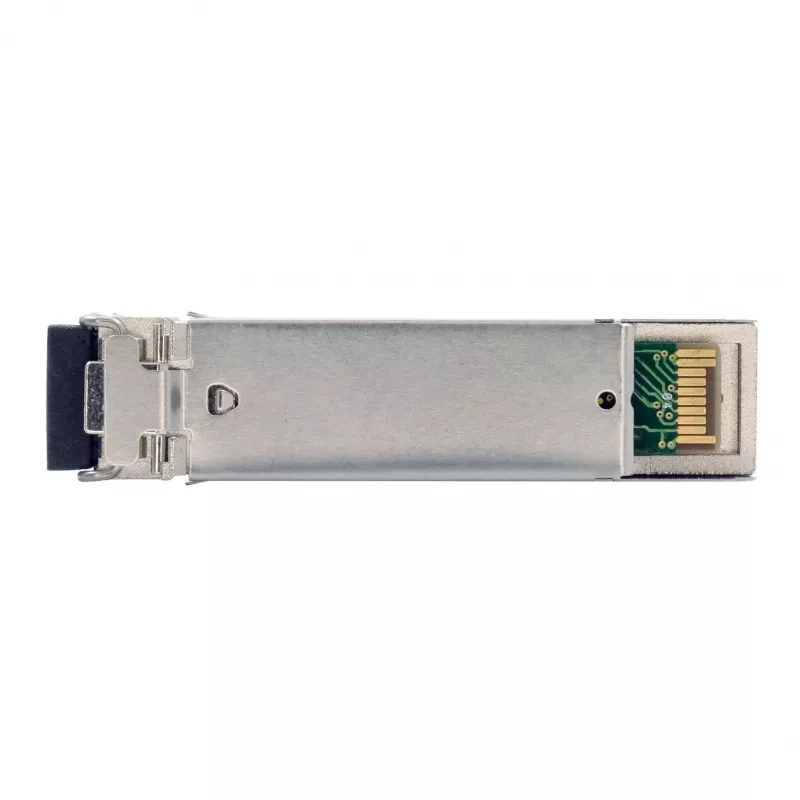

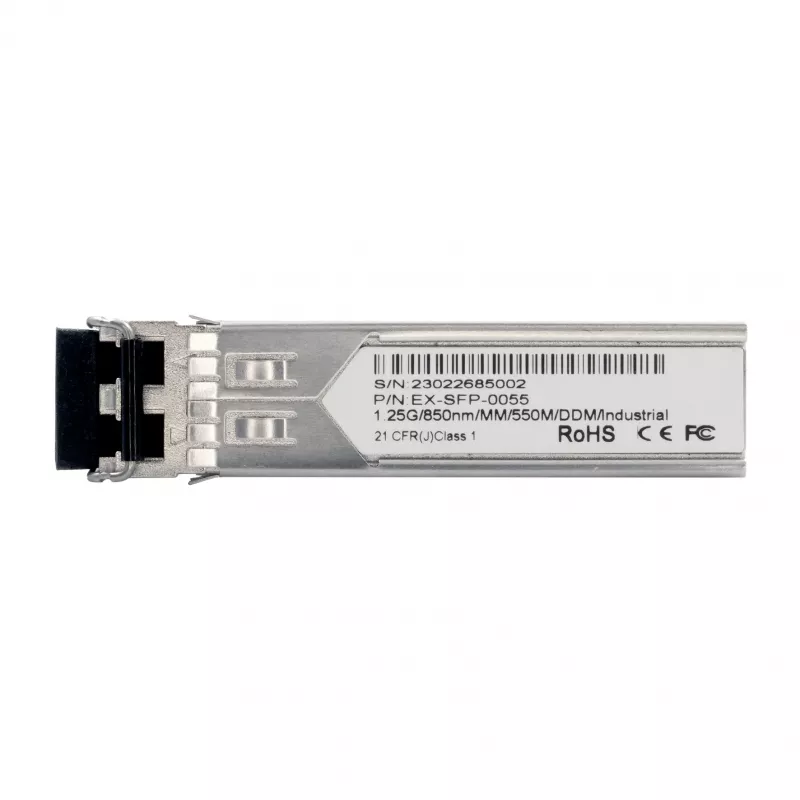

EXSYS EX-SFP-0055 Transceptor SFP LC duplex multimodo 550m 1,25Gbps 850nm -40°C a 80°C

Network upgrades often stall when existing multimode fiber runs exceed the reach of standard transceivers. The EXSYS EX-SFP-0055 SFP transceiver solves this by delivering reliable Gigabit Ethernet connectivity over multimode fiber up to 550 meters, even in extreme temperatures from -40°C to 80°C.

Who is it for

This transceiver is ideal for IT administrators and network engineers who need to extend fiber links in industrial environments, outdoor enclosures, or data centers where temperature fluctuations are common. It works with any MSA-compliant SFP port on switches, routers, or media converters.

Main features

• Hot-swappable SFP form factor for easy installation without network downtime.
• LC duplex connector for standard multimode fiber cabling.
• Supports Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of temperature, voltage, and optical power.
• Low power consumption under 1W, reducing energy costs.
• VCSEL laser technology at 850nm wavelength, compliant with 1000BASE-SX standard.
• Wide operating temperature range from -40°C to 80°C for harsh environments.

Specifications

• Transceiver type: SFP
• Data rate: 1.25 Gbps
• Fiber mode: Multimode
• Connector: LC Duplex
• Wavelength: 850 nm
• Maximum transfer distance: 550 m
• Duplex system: Full duplex
• Hot-plug support: Yes
• Operating temperature: -40°C to 80°C
• Mean time between failures (MTBF): 500,000 hours

Tips

For optimal performance, pair this transceiver with OM3 or OM4 multimode fiber. Ensure both ends of the link use the same transceiver type and wavelength. Use the DDM feature to monitor link health and proactively address issues.
