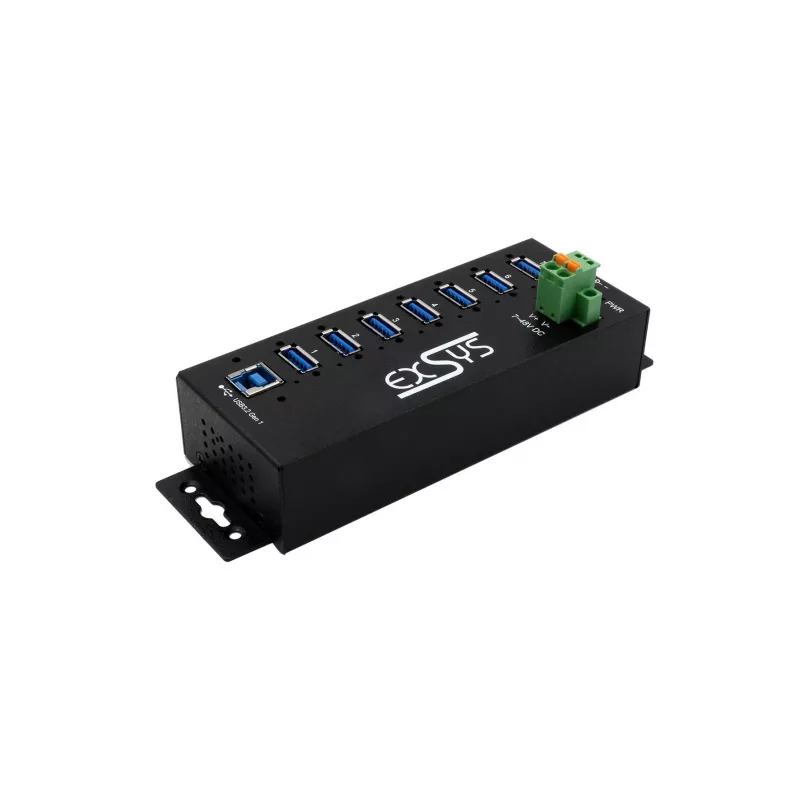

EXSYS Hub industrial USB 3.2 Gen1 de 7 portas com kit para calha DIN e proteção ESD de 15kV (EX-1187HMVS-2)

Industrial-grade 7-port USB 3.2 Gen 1 hub delivering up to 5 Gbps data transfer with robust 15 kV ESD protection, designed for DIN-rail or wall mounting in demanding environments.

Advantages

This hub provides seven downstream USB 3.2 Gen 1 ports, each capable of up to 900 mA power output, ensuring reliable connectivity for industrial peripherals. Its metal housing and wide operating temperature range (-40°C to 85°C) make it suitable for harsh conditions. The included DIN-rail kit and terminal block power input (7-24V DC) simplify installation in control cabinets.

Suitable for

• Industrial automation and control systems
• Machine vision and inspection setups
• Kiosk and digital signage applications
• Laboratory equipment connectivity

Key specifications

• USB version: USB 3.2 Gen 1 (5 Gbps)
• Downstream ports: 7 x USB Type-A
• Upstream port: USB Type-B
• ESD protection: 15 kV air, 8 kV contact
• Power input: 7-24V DC terminal block
• Operating temperature: -40°C to 85°C
• Housing: Metal

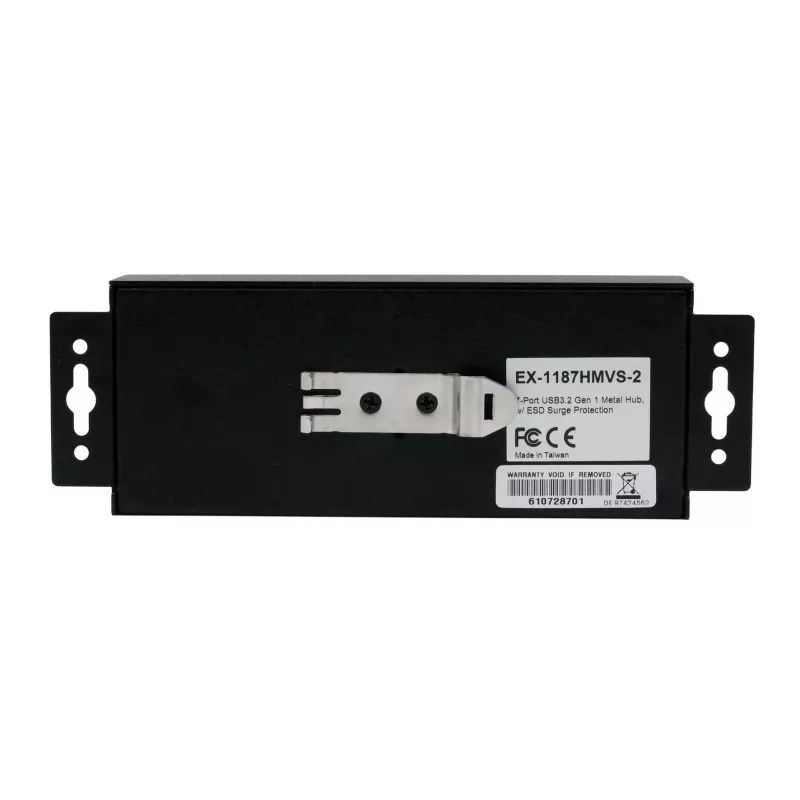

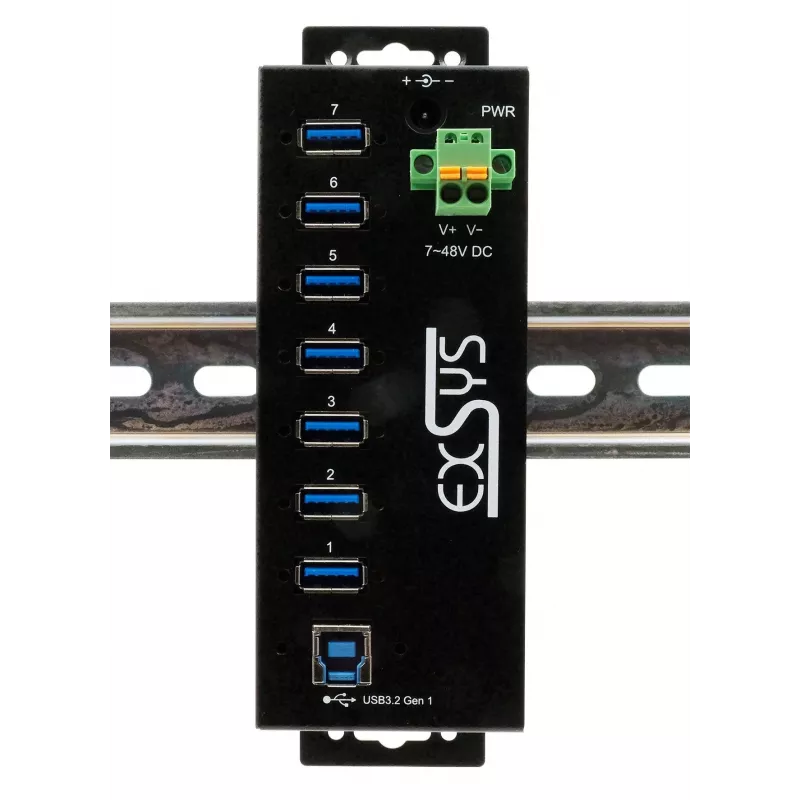

• Mounting: DIN-rail or wall-mount

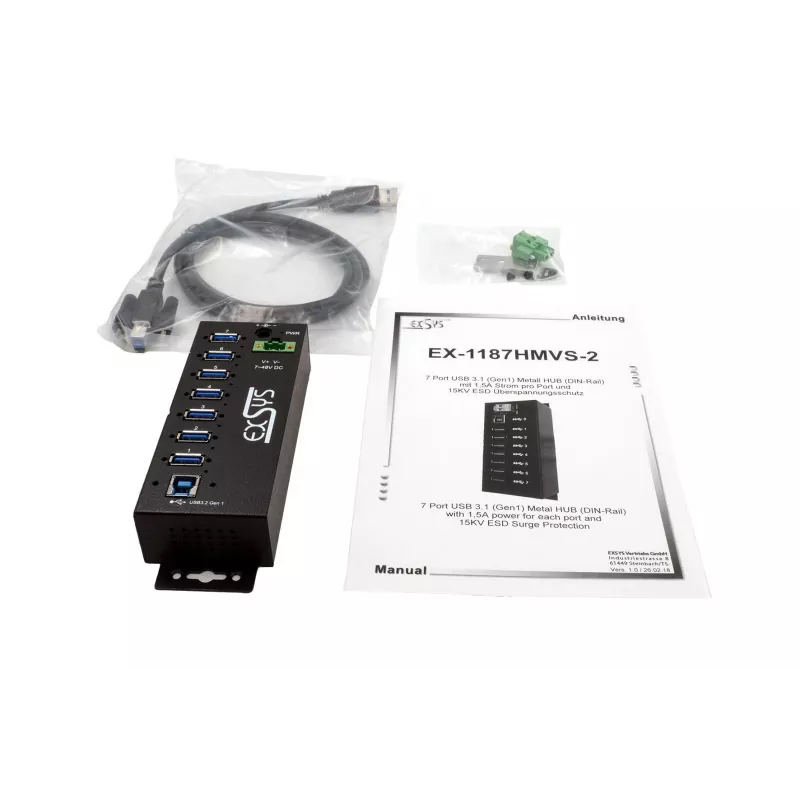

• Included: 1.8m USB Type-A to Type-B cable, DIN-rail kit

Recommendations

For reliable multi-port USB expansion in industrial settings, pair with a regulated 24V DC power supply to ensure stable operation across all ports.
