EXSYS M12 Codificação X 8 Polos Conector Fêmea para Conector Fêmea RJ45 Adaptador, 10Gbps, IP67, Latão Niquelado EX-49541

Connecting standard RJ45 Ethernet equipment in harsh industrial environments often fails due to vibration, moisture, and dust. This adapter bridges that gap by converting an M12 X-coded 8-pin female connector to an RJ45 female jack, enabling reliable 10 Gigabit Ethernet links in demanding conditions.

Who is it for

Automation engineers and network technicians deploying PROFINET, EtherCAT, or high-speed industrial Ethernet in factories, vehicles, or outdoor installations. It suits anyone needing a robust inline adapter for machinery, robotics, or IP cameras.

Main features

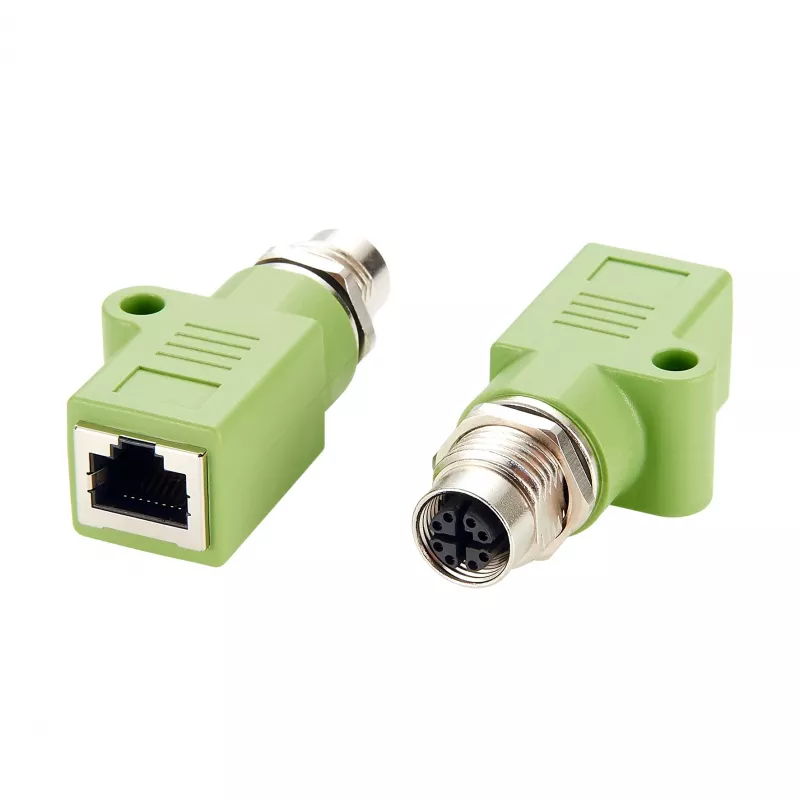

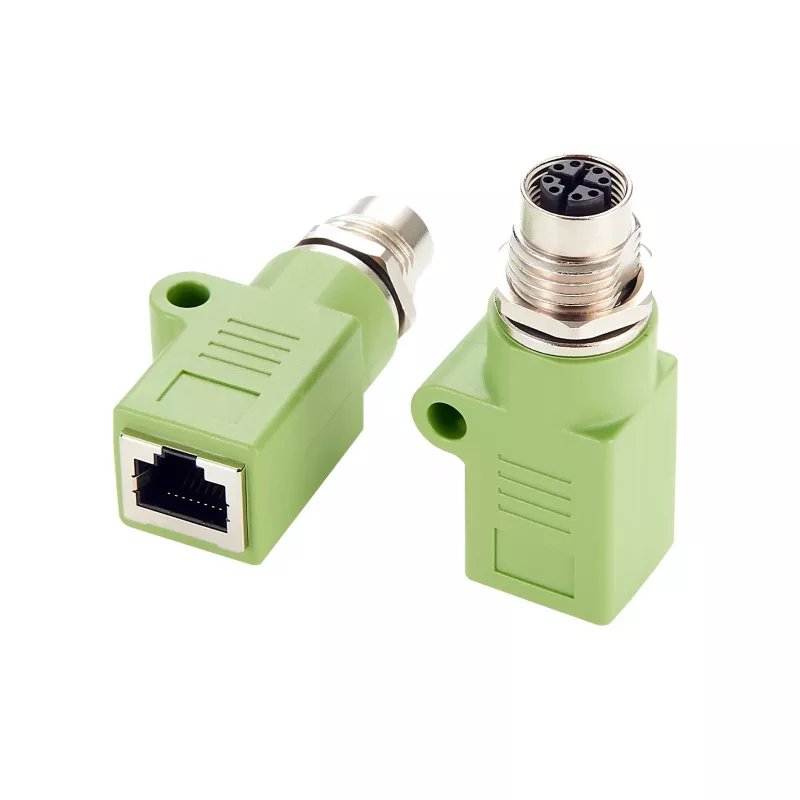

• M12 X-coded 8-pin female to RJ45 female inline adapter
• Supports 10 Gigabit Ethernet (10GBase-T) up to 10 Gbps
• Shielded design with nickel-plated brass housing for durability
• IP67 protection when mated, resisting dust and water immersion
• Operating temperature range -25°C to 85°C
• Compatible with Cat.6A and Cat.7 cabling

Specifications

• Connector 1: M12 X-coded, 8-pin, female
• Connector 2: RJ45, female
• Data transfer rate: 10 Gbps
• Shielding: Yes
• Housing material: Nickel-plated brass
• Ingress protection: IP67 (when mated)
• Voltage rating: 60V
• Current rating: 0.5A
• Mounting type: Inline adapter
• Application: Industrial Ethernet, PROFINET, EtherCAT

Tips

Pair with pre-terminated M12 X-coded cables and Cat.6A or Cat.7 RJ45 patch cords for a complete 10G link. Ensure both connectors are fully seated to maintain the IP67 seal.
