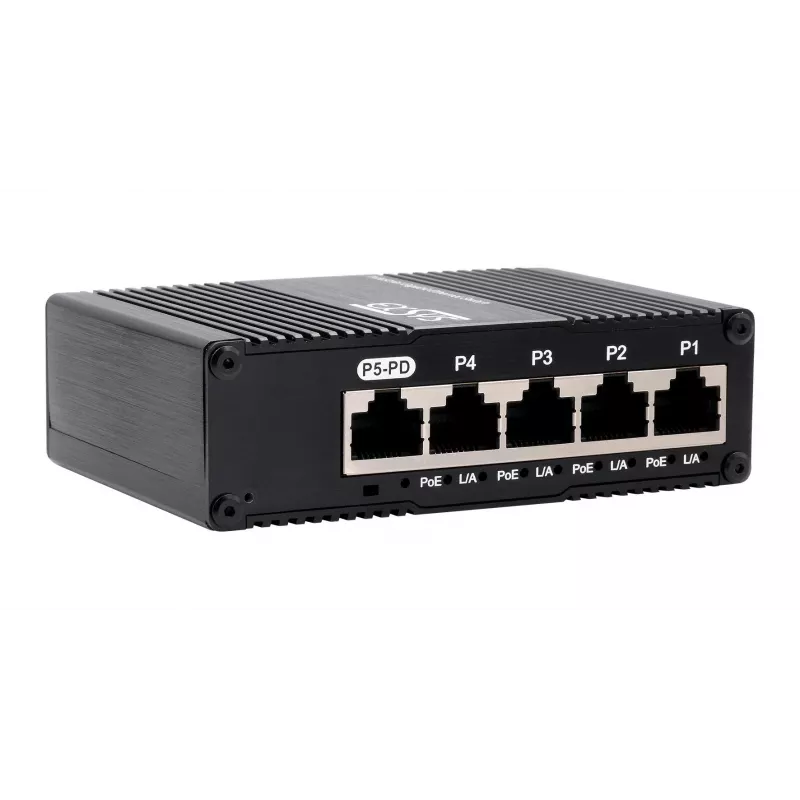

EXSYS Mini Switch Ethernet PoE Pass-Through de 5 Portas - 5x10/100/1000Tx (EX-62020POE-P)

In industrial automation and IP surveillance setups, the EXSYS EX-62020POE-P provides a compact way to extend a PoE network without a local power outlet. This 5-port gigabit switch receives power via PoE on port 1 and passes it through to four downstream PoE devices, making it ideal for locations where AC power is unavailable.

Key specifications

• 5 Gigabit Ethernet ports (10/100/1000 Mbps)
• 1 PoE input port (IEEE 802.3af/at)
• 4 PoE output ports (IEEE 802.3af/at)

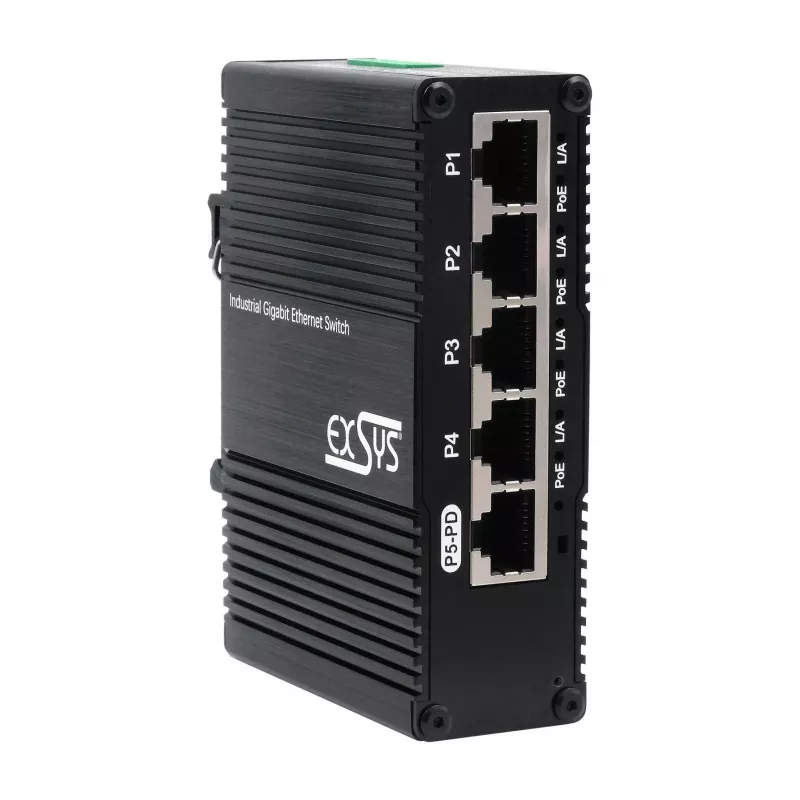

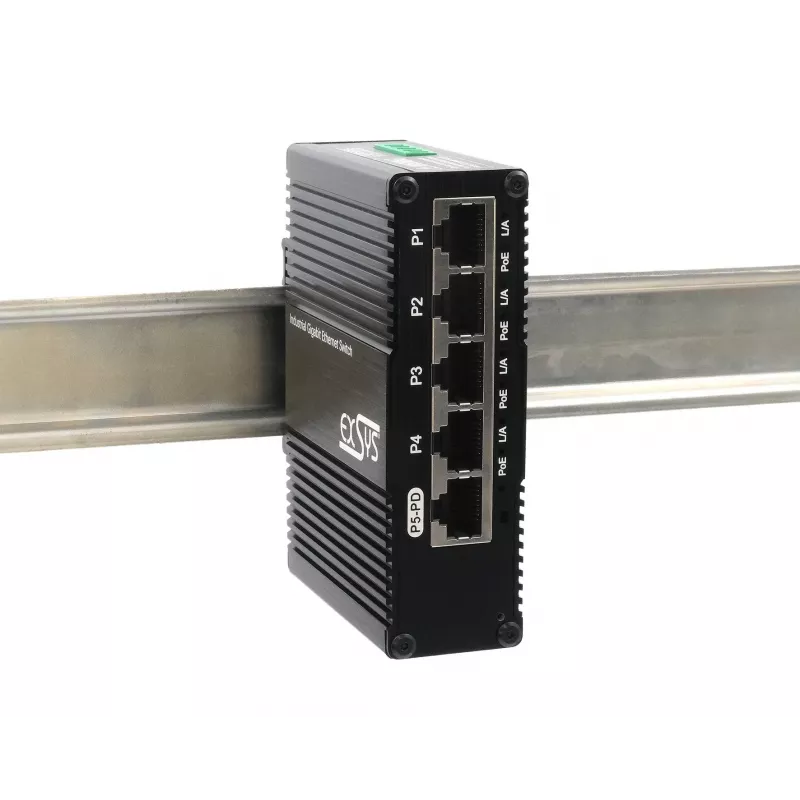

• Metal housing with wall-mount and DIN-rail mount options
• Operating temperature: -10°C to 60°C
• Switching capacity: 10 Gbps
• MAC address table: 2K entries
• Jumbo frame support up to 9K bytes

Why choose it

Its pass-through PoE design eliminates the need for a separate power supply at the installation point, reducing cabling and deployment costs. The metal housing ensures durability in harsh environments, and the wide operating temperature range supports use in unheated areas.

Ideal use cases

• Connecting IP cameras in remote locations
• Extending networks in industrial control cabinets
• Powering wireless access points without nearby outlets
• Deploying PoE devices in ceiling or wall spaces

Good to know

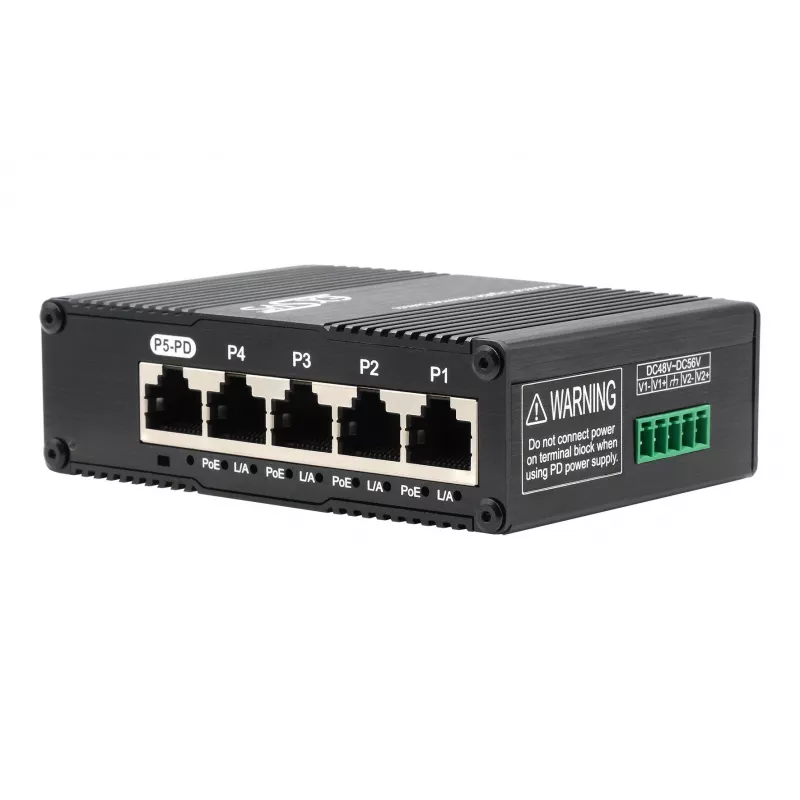

The switch can also be powered via a 48-57V DC terminal block when PoE input is not available. LED indicators show power, link/activity, and PoE status for easy troubleshooting.
