EXSYS Placa Dual 5 Gigabit Ethernet PCIe x2 (Realtek RTL8126) EX-60152

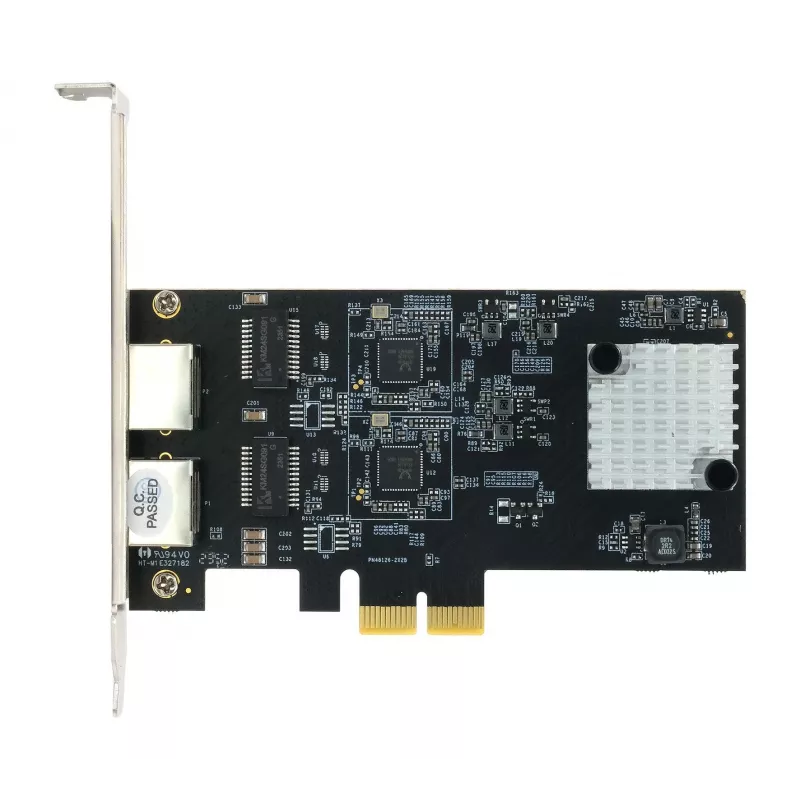

The EXSYS EX-60152 adds two independent 5 Gigabit Ethernet ports over a single PCIe 2.1 x2 slot, using the Realtek RTL8126 controller. Unlike single-port adapters, this card lets one machine handle two 5G links without occupying a second expansion slot.

Highlights

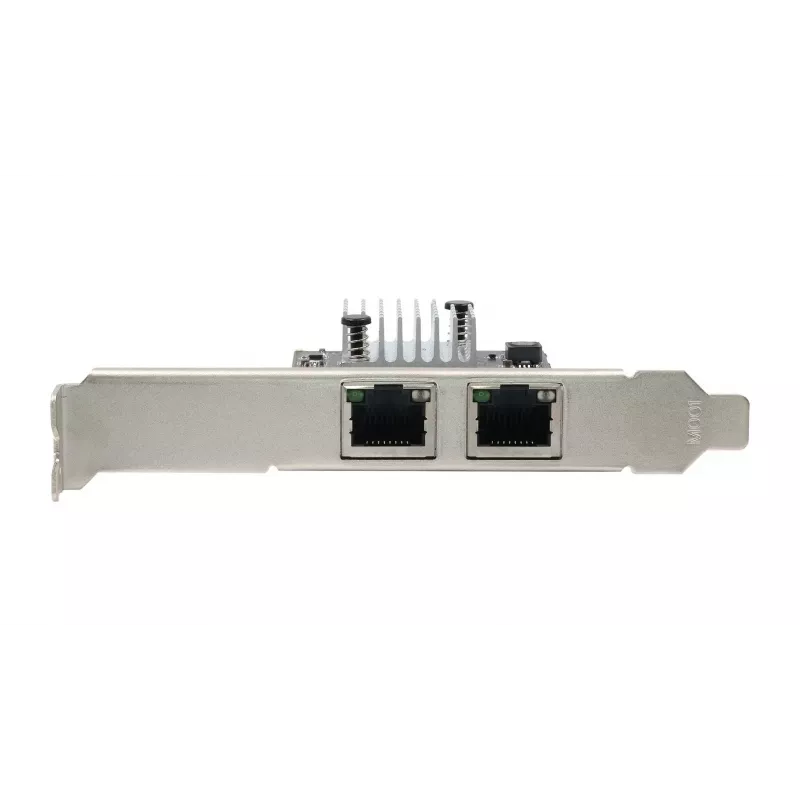

• Dual RJ45 ports, each supporting 100M/1G/2.5G/5G speeds with auto-negotiation
• PCIe 2.1 x2 host interface, compatible with x2, x4, x8, and x16 slots

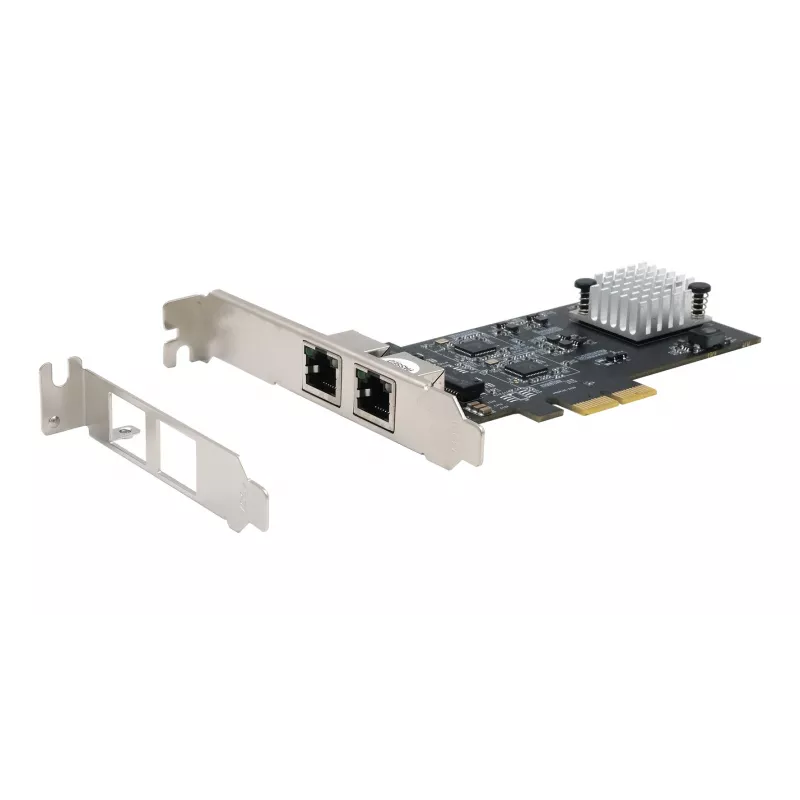

• Low profile form factor with both standard and low profile brackets included
• Supports Wake-on-LAN, PXE boot, jumbo frames up to 16 KB, and checksum offload

In daily use

The card installs in a wide range of desktop and server systems. Its low profile design fits compact cases, while the standard bracket suits full-height slots. With support for Windows, Windows Server, Linux, and macOS up to 10.15, it integrates into mixed environments. The dual ports allow link aggregation, failover, or dedicated connections for separate networks.

Full specifications

• Chipset: Realtek RTL8126
• Ethernet ports: 2x RJ45
• Maximum data transfer rate: 5 Gbps per port
• Supported data rates: 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps
• Networking standards: IEEE 802.3ab, 802.3u, 802.3x, 802.3az, 802.1Q, 802.1p, 802.3bz
• Jumbo frame support: up to 16 KB
• Wake-on-LAN: Yes
• PXE boot support: Yes
• Checksum offload: IPv4, IPv6, TCP, UDP
• Receive Side Scaling (RSS): Yes
• Operating temperature: 0°C to 55°C
• Storage temperature: -20°C to 70°C
• Humidity: 5% - 95% RH (non-condensing)

Final note

The EX-60152 delivers two 5G Ethernet channels in a single low profile PCIe card, backed by a controller with proven driver support across major operating systems.
