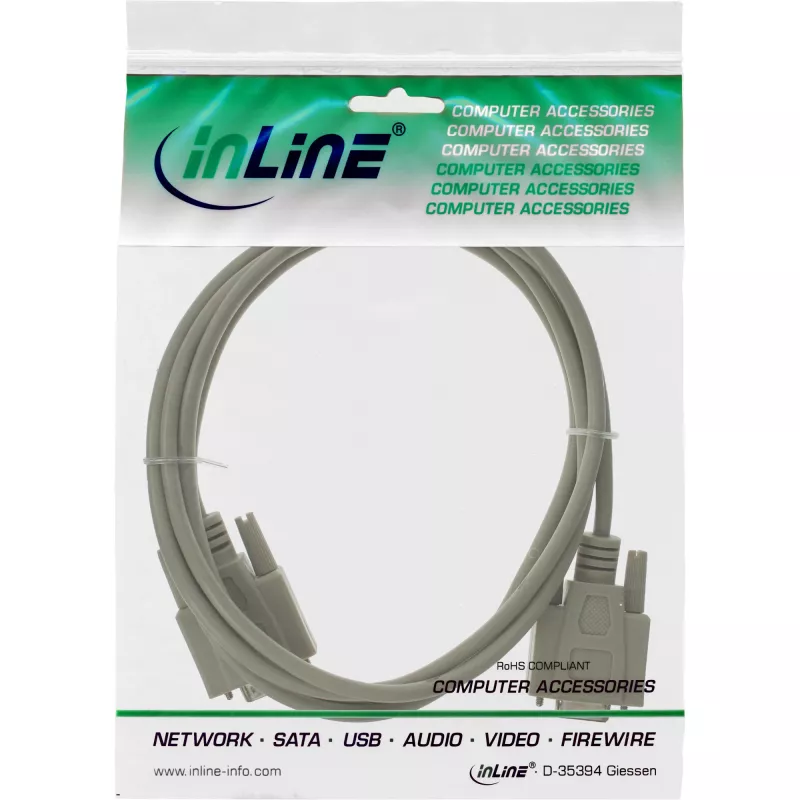

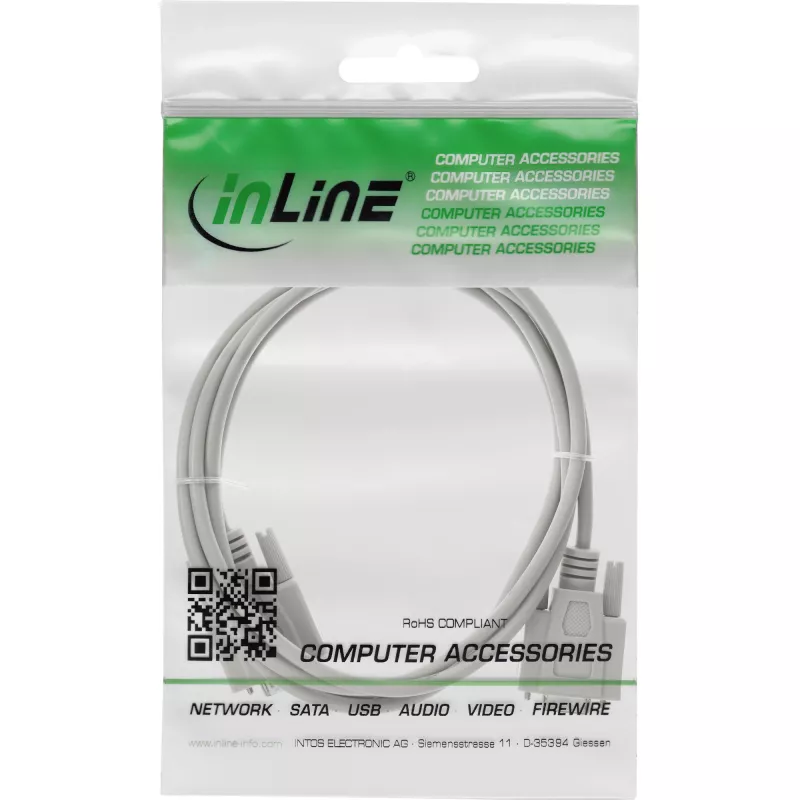

Extensão série InLine, 9 pinos macho/fêmea, moldada, ligação 1:1, 10 m

Reliable serial signal extension:The extension enables stable expansion of existing RS232, RS422 or RS485 connections between system components with a 9-pin Sub-D interface.
1:1 assigned for direct signal transmission:All pins are connected one-to-one and enable unaltered transmission without cross-wiring.

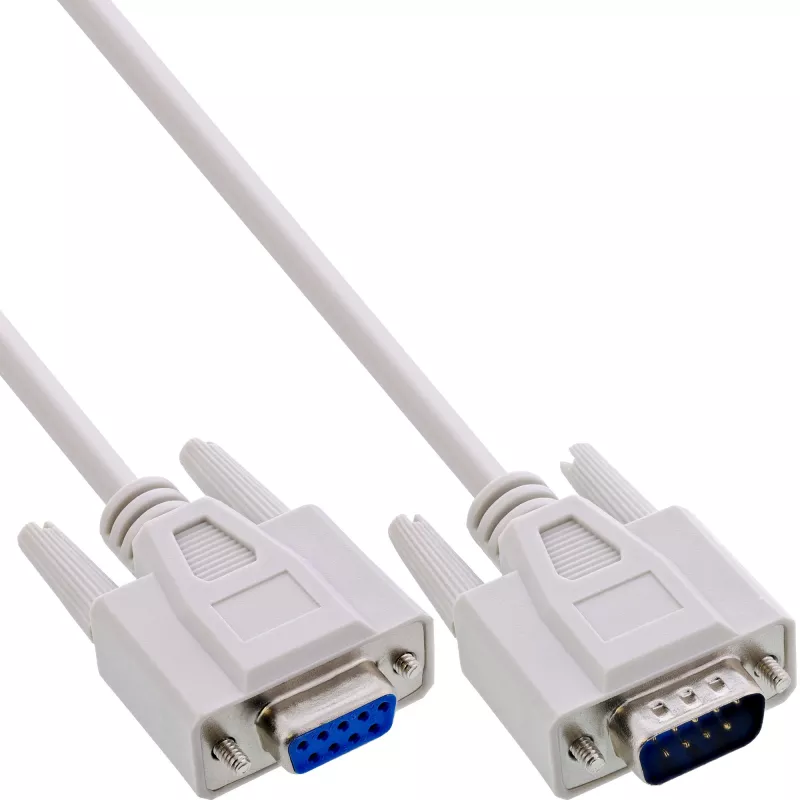

9-pin Sub-D plug to socket:The assembly with 9-pin plug and 9-pin socket allows easy extension of existing DB9 connections.
Moulded connector design:The moulded connectors support a mechanically stable connection and increase resistance in daily use.
Flexible length options:Available in 2 metres, 3 metres, 5 metres, 7 metres, 10 metres, 15 metres and 20 metres for installations tailored to your needs.

The InLine® serial extension with 9-pin Sub-D plug to 9-pin Sub-D socket is used to extend existing serial interfaces. It is suitable for RS232, RS422 and RS485 connections between peripheral devices, data switches and PC or server systems.
Thanks to the 1:1 pin assignment, all pins are directly connected. There is no cross-wiring. This means that the signal structure of the existing connection remains unchanged.
The moulded connectors support a stable mechanical connection and are designed for regular use. The standardised 9-pin Sub D assembly allows for easy integration into existing installations.
The cable is available in several defined lengths and can be flexibly adapted to different installation requirements.

Connector type: 9-pin Sub-D plug to 9-pin Sub-D socket
Assignment: 1:1
Supported interfaces: RS232, RS422, RS485
Design: moulded connectors

InLine Serial extension, 9pin male / female, moulded, 1:1 assigned, 10m. Product colour: Beige, Cable length: 10 m, Connector 1: male 9pin Sub D. Package width: 175 mm, Package depth: 225 mm, Package height: 31 mm. Weight: 384 g

How to use

Connect the male DE-9 plug to the serial port of the PC or server and the female DE-9 connector to the peripheral device or data switch. Ensure connectors are fully seated and, if present, secure any thumbscrews to prevent accidental disconnection. Verify serial port settings (baud rate, parity, stop bits) in the host and peripheral device to match the application requirements.

Recommendations

For reliable signal performance, avoid tight bends near the connectors and keep the cable away from strong electromagnetic sources such as unshielded power transformers or large motors. For longer runs or environments with high electrical noise, consider using shielded serial solutions or serial-over-Ethernet converters.
